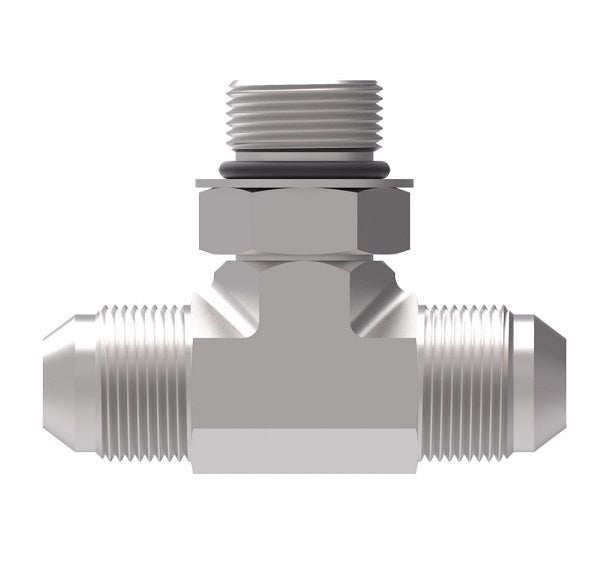

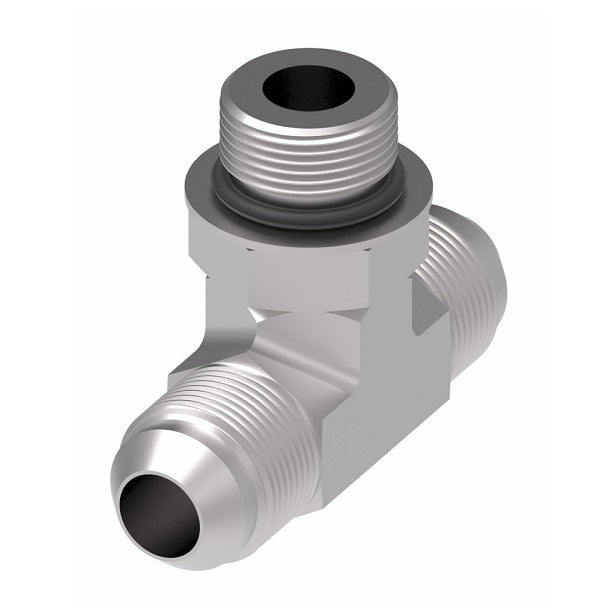

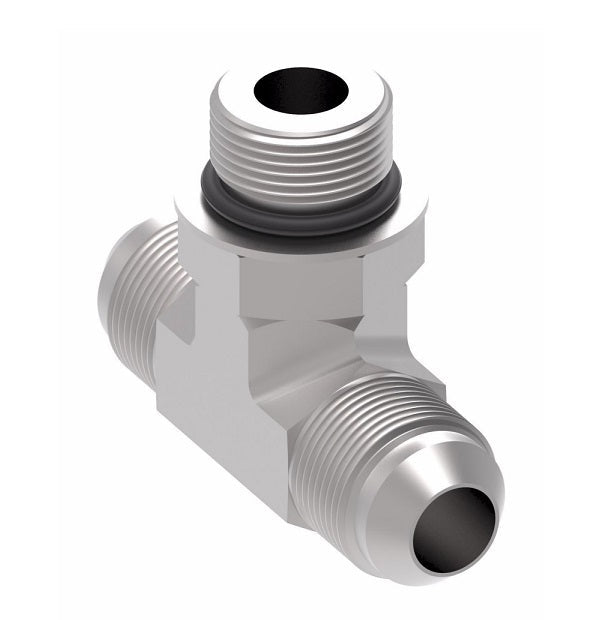

203003-8-8S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -08 Male SAE O-Ring Boss x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel

203003-8-8S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -08 Male SAE O-Ring Boss x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel

Name: 203003-8-8S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -08 Male SAE O-Ring Boss x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 203003-8-8S Danfoss
Price: 14.01 USD
Availability: InStock

$14.01 - $14.01

$14.01

$14.01 - $14.01

$14.01

Aeroquip® by Danfoss
SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 203003-8-8S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Male JIC, 1/2in Male JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specifications:
Ref. SAE 070429


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A	B
203003-4-4S	0.25"	7/16-20	7/16-20	1.03"	0.89"
203003 -6-6S	0.38"	9/16-18	9/16-18	1.25"	1.06"
203003-8-8S	0.50"	3/4-16	3/4-16	1.45"	1.25"
203003-10-10S	-	7/8-14	7/8-14	-	-
203003-10-12-12S	0.95"	7/8-14	1-1/16-12	1.78"	1.66"
203003-12-12S	0.75"	1-1/16-12	1-1/16-12	1.94"	1.66"
203003-12-16-16S	1.00"	1-1/16-12	1-5/16-12	2.05"	1.81"
203003-16-16S	1.00"	1-5/16-12	1-5/16-12	2.05"	1.81"
203003-20-20S	1.25"	1-5/8-12	1-5/8-12	2.25"	2.06"
