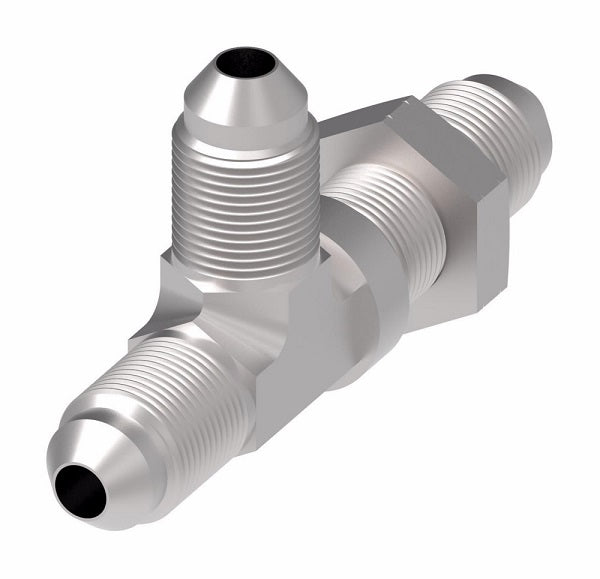

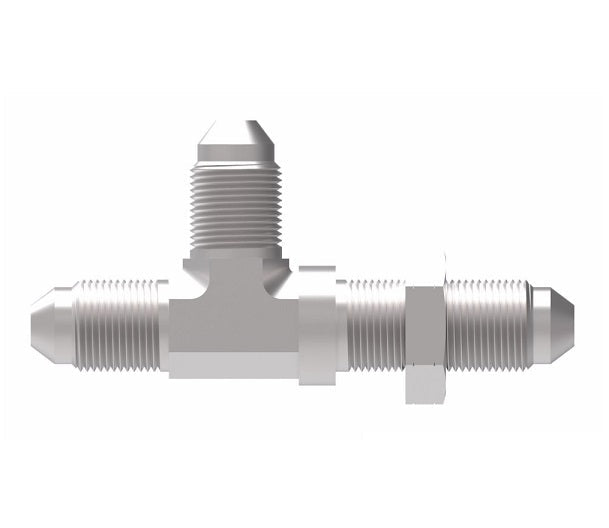

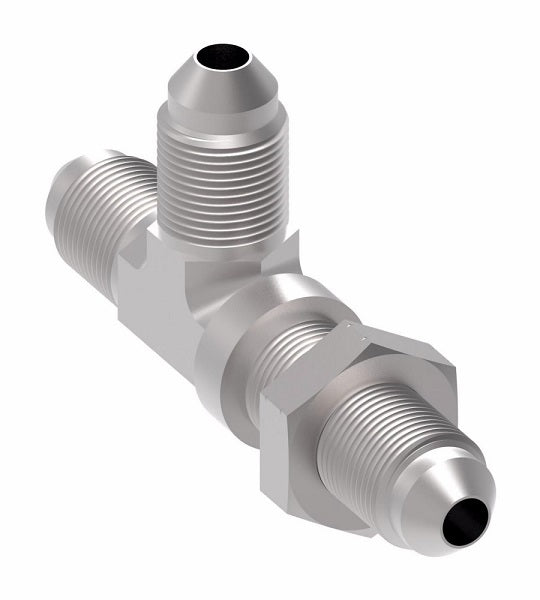

203008-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare Bulkhead x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
203008-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare Bulkhead x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
203008-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare Bulkhead x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
203008-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare Bulkhead x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

203008-12-12S Aeroquip by Danfoss | 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare Bulkhead x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

$49.31 - $49.31
$49.31
$49.31 - $49.31
$49.31

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead Run/37° JIC Flare Tee Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203008-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male JIC, 3/4in Male JIC, 3/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070958
Part Number
Steel		 Tube O.D. Thread T A B C
203008-3-3S 0.19" 3/8-24 1.50" 0.94" 0.94"
203008-6-6S 0.38" 9/16-18 1.81 1.09" 1.09"
203008-8-8S 0.50" 3/4-16 2.11 1.36" 1.36"
203008-12-12S 0.75" 1-1/16-12 2.67" 1.78" 1.78"
203008-16-16S 1.00" 1-5/16-12 2.80" 1.94" 1.94"
203008-20-20S 1.25" 1-5/8-12 3.12" 2.17" 2.17"
