Name: 2031-4-6S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -04 Female NPTF x -06 Male 37° JIC Flare x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 2031-4-6S Danfoss
Price: 19.58 USD
Availability: InStock

$19.58 - $19.58

$19.58

$19.58 - $19.58

$19.58

Aeroquip® by Danfoss

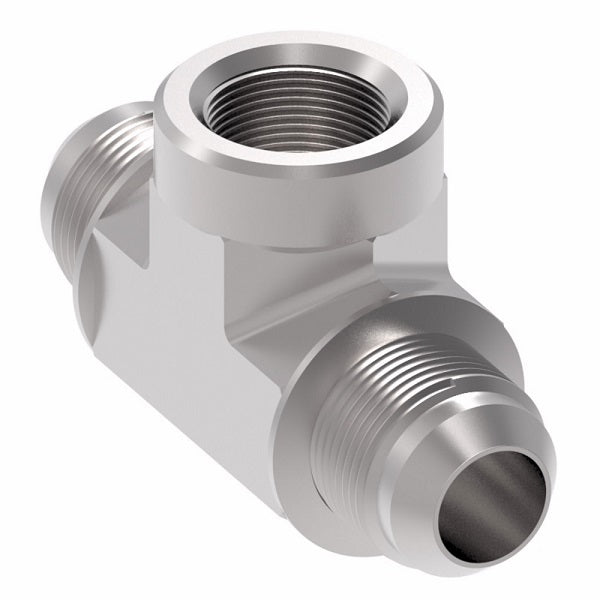

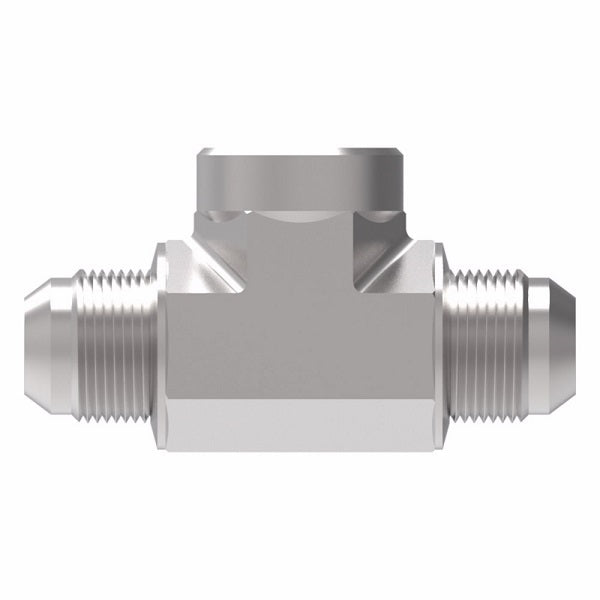

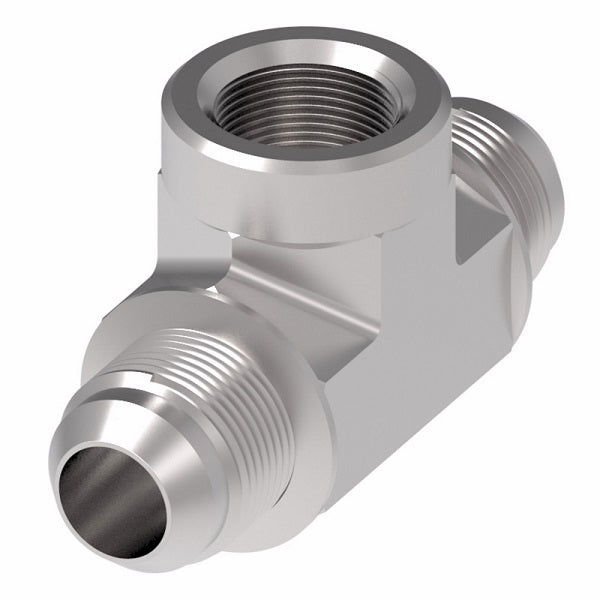

Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter
Female NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2031-4-6S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/4in Female NPTF, 3/8in Male JIC, 3/8in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070427


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2031-2-3S	0.19"	1/8-27	3/8-24	0.66"	1.03"
2031-2-4S	0.25"	1/8-27	7/16-20	0.66"	1.08"
2031-4-4S	0.25"	1/4-18	7/16-20	0.88"	1.22"
2031-4-6S	0.38"	1/4-18	9/16-18	0.88"	1.23"
2031-6-8S	0.50"	3/8-18	3/4-16	1.02"	1.42"
2031-8-8S	0.50"	1/2-14	3/4-16	1.23"	1.52"
2031-8-10S	0.63"	1/2-14	7/8-14	1.23"	1.64"
2031-12-12S	0.75"	3/4-14	1-1/16-12	1.36"	1.89"
2031-16-16S	1.00"	1-11-1/2	1-5/16-12	1.62"	2.09"
