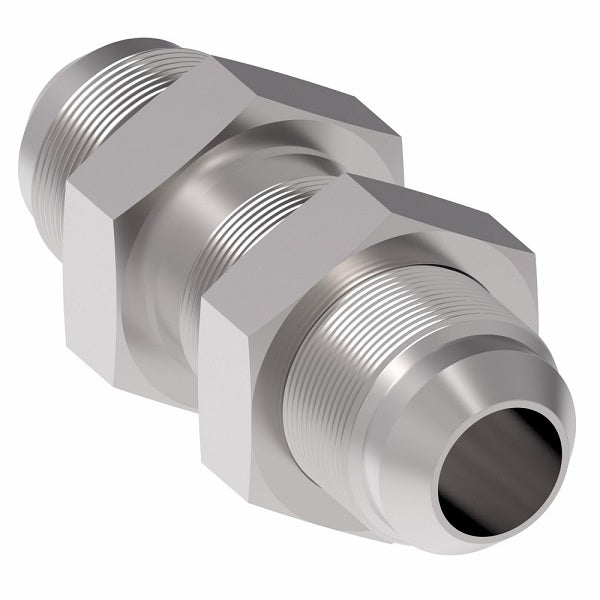

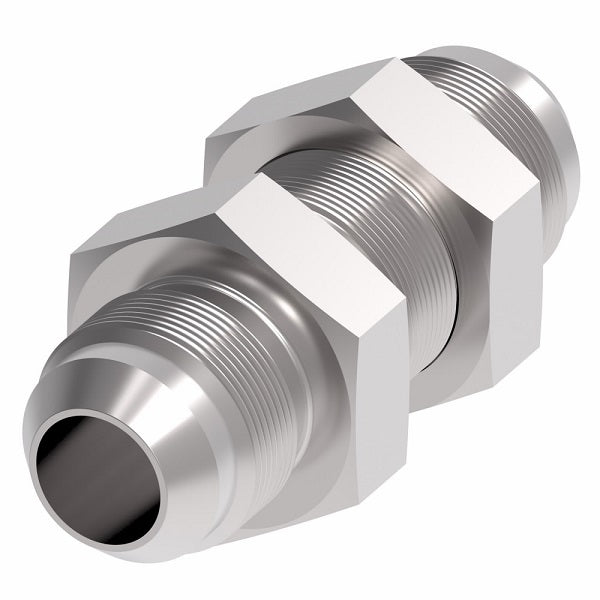

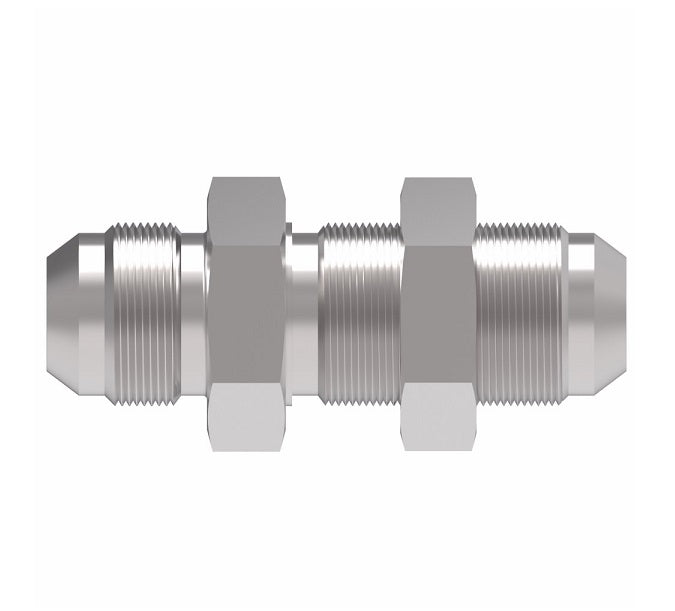

2041-4-6S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -04 Male 37° JIC Flare Bulkhead x -06 Male 37° JIC Flare | Steel
2041-4-6S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -04 Male 37° JIC Flare Bulkhead x -06 Male 37° JIC Flare | Steel
2041-4-6S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -04 Male 37° JIC Flare Bulkhead x -06 Male 37° JIC Flare | Steel
2041-4-6S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -04 Male 37° JIC Flare Bulkhead x -06 Male 37° JIC Flare | Steel

2041-4-6S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -04 Male 37° JIC Flare Bulkhead x -06 Male 37° JIC Flare | Steel

$15.92 - $15.92
$15.92
$15.92 - $15.92
$15.92

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2041-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 3/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070601
Part Number
Steel		 Part Number
Steel
Without Nut		 Part Number
Stainless Steel		 Part Number
Stainless Steel
Without Nut		 Tube O.D. Thread T1 Thread T2 A B
2041-3-3S 2041-1-3-3S - - 0.19" 3/8-24 3/8-24 1.90" 1.14"
2041-4-4S 2041-1-4-4S - - 0.25" 7/16-20 7/16-20 2.07" 1.23"
2041-4-6S - - - 0.38" 7/16-20 9/16-18 2.10" 1.23"
2041-5-5S 2041-1-5-5S - - 0.31" 1/2-20 1/2-20 2.07" 1.23"
2041-6-6S 2041-1-6-6S - - 0.38" 9/16-18 9/16-18 2.18" 1.31"
2041-8-8S 2041-1-8-8S 259-2041-8-8 259-2041-1-8-8 0.50" 3/4-16 3/4-16 2.44" 1.47"
2041-10-10S 2041-1-10-10S - - 0.63" 7/8-14 7/8-14 2.74" 1.61"
2041-12-12S 2041-1-12-12S - - 0.75" 1-1/16-12 1-1/16-12 3.09" 1.78"
2041-12-16S - - - 1.00" 1-1/16-12 1-5/16-12 3.14" 1.78"
2041-16-16S 2041-1-16-16S - - 1.00" 1-5/16-12 1-5/16-12 3.14" 1.78"
2041-20-20S 2041-1-20-20S - - 1.25" 1-5/8-12 1-5/8-12 3.31" 1.83"
2041-24-24S - - - 1.50" 1-7/8-12 1-7/8-12 3.52" 1.84"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
