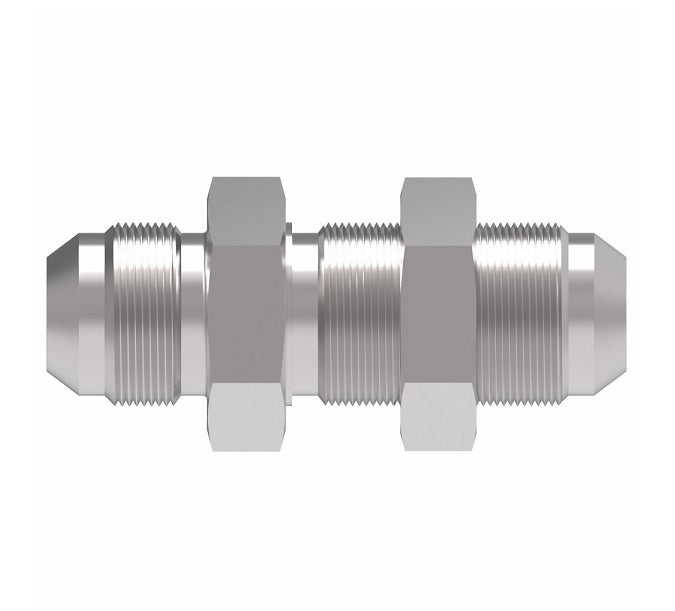

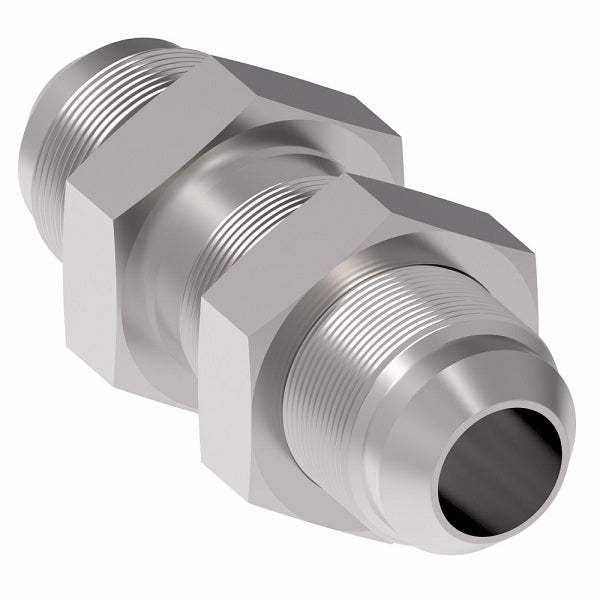

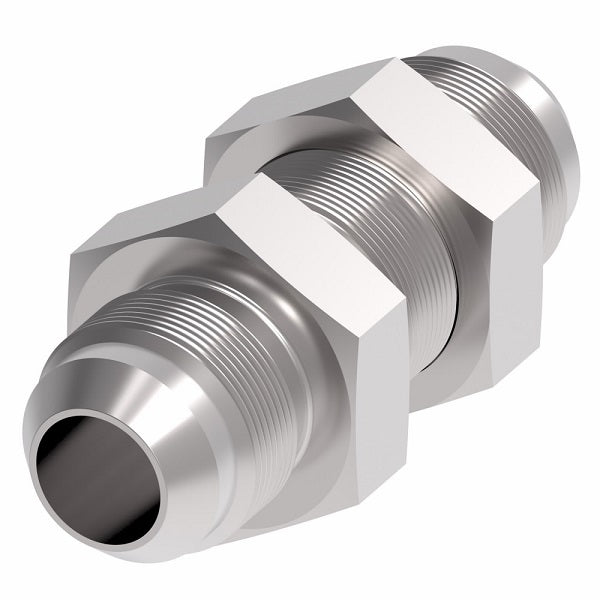

2041-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2041-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2041-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
2041-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

2041-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead Adapter | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel

$34.94 - $34.94
$34.94
$34.94 - $34.94
$34.94

Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2041-5-5S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/16in Male JIC, 5/16in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070601
Part Number
Steel		 Part Number
Steel
Without Nut		 Part Number
Stainless Steel		 Part Number
Stainless Steel
Without Nut		 Tube O.D. Thread T1 Thread T2 A B
2041-3-3S 2041-1-3-3S - - 0.19" 3/8-24 3/8-24 1.90" 1.14"
2041-4-4S 2041-1-4-4S - - 0.25" 7/16-20 7/16-20 2.07" 1.23"
2041-4-6S - - - 0.38" 7/16-20 9/16-18 2.10" 1.23"
2041-5-5S 2041-1-5-5S - - 0.31" 1/2-20 1/2-20 2.07" 1.23"
2041-6-6S 2041-1-6-6S - - 0.38" 9/16-18 9/16-18 2.18" 1.31"
2041-8-8S 2041-1-8-8S 259-2041-8-8 259-2041-1-8-8 0.50" 3/4-16 3/4-16 2.44" 1.47"
2041-10-10S 2041-1-10-10S - - 0.63" 7/8-14 7/8-14 2.74" 1.61"
2041-12-12S 2041-1-12-12S - - 0.75" 1-1/16-12 1-1/16-12 3.09" 1.78"
2041-12-16S - - - 1.00" 1-1/16-12 1-5/16-12 3.14" 1.78"
2041-16-16S 2041-1-16-16S - - 1.00" 1-5/16-12 1-5/16-12 3.14" 1.78"
2041-20-20S 2041-1-20-20S - - 1.25" 1-5/8-12 1-5/8-12 3.31" 1.83"
2041-24-24S - - - 1.50" 1-7/8-12 1-7/8-12 3.52" 1.84"
