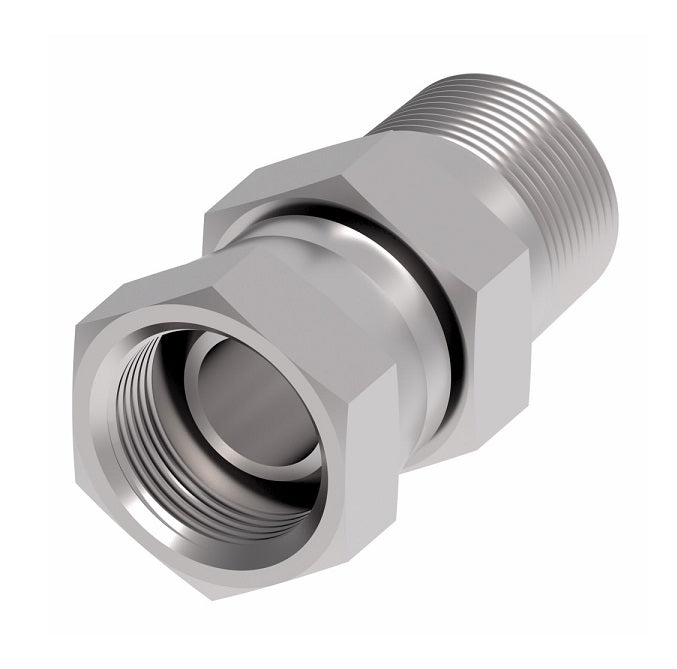

2045-12-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -08 Male NPTF | Steel

2045-12-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -08 Male NPTF | Steel

Name: 2045-12-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -12 Female NPSM x -08 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2045-12-8S Danfoss
Price: 10.2 USD
Availability: InStock

$10.20 - $10.20

$10.20

$10.20 - $10.20

$10.20

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Male NPTF
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2045-12-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPSM, 1/2in Male NPTF
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 140130


Steel Part Number	Steel with Loctite Vibra-Seal Part Number	Thread P1	Thread P2	A
2045-2-2S	-	1/8-27	1/8-27	0.96"
2045-2-4S	-	1/8-27	1/4-18	1.14"
2045-3-4S	-	-	1/4-18	-
2045-4-2S	-	1/4-18	1/8-27	-
2045-4-4S	307-2045-4-4	1/4-18	1/4-18	1.26"
2045-4-6S	-	1/4-18	3/8-18	1.26"
2045-4-8S	-	1/4-18	1/2-14	1.51"
2045-6-4S	-	3/8-18	1/4-18	1.26"
2045-6-6S	-	3/8-18	3/8-18	1.32"
2045-6-8S	-	3/8-18	1/2-14	1.58"
2045-8-6S	-	1/2-14	3/8-18	1.37"
2045-8-8S	-	1/2-14	1/2-14	1.62"
2045-8-12S	-	1/2-14	3/4-14	1.62"
2045-12-8S	-	3/4-14	1/2-14	-
2045-12-12S	-	3/4-14	3/4-14	1.75"
2045-12-16S	-	3/4-14	1-11-1/2	2.00"
2045-16-12S	-	1-11-1/2	3/4-14	1.76"
2045-16-16S	-	1-11-1/2	1-11-1/2	2.02"
2045-16-20S	-	1-11-1/2	1-1/4-11-1/2	-
2045-20-16S	-	1-1/4-11-1/2	1-11-1/2	2.10"
2045-20-20S	-	1-1/4-11-1/2	1-1/4-11-1/2	2.08"
2045-20-24S	-	1-1/4-11-1/2	1-1/2-11-1/2	-
2045-24-20S	-	1-1/2-11-1/2	1-1/4-11-1/2	2.17"
2045-24-24S	-	1-1/2-11-1/2	1-1/2-11-1/2	2.20"
2045-32-32S	-	2-11-1/2	2-11-1/2	2.39"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
