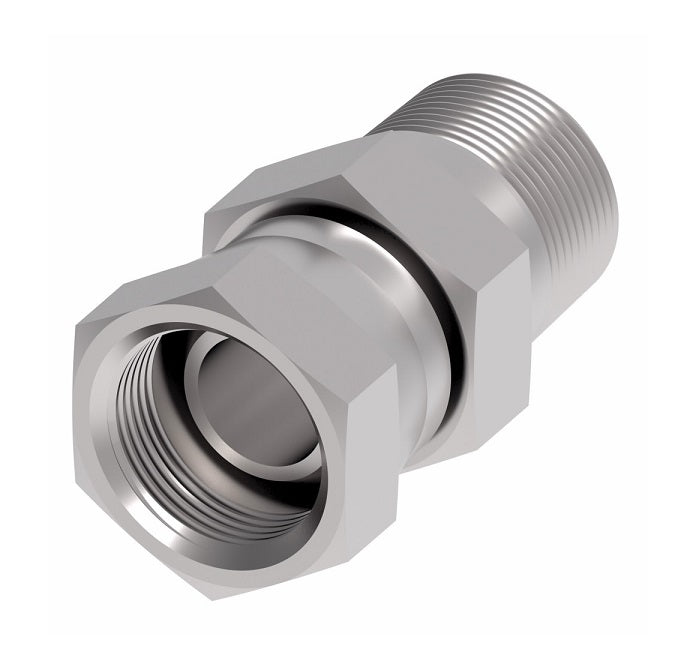

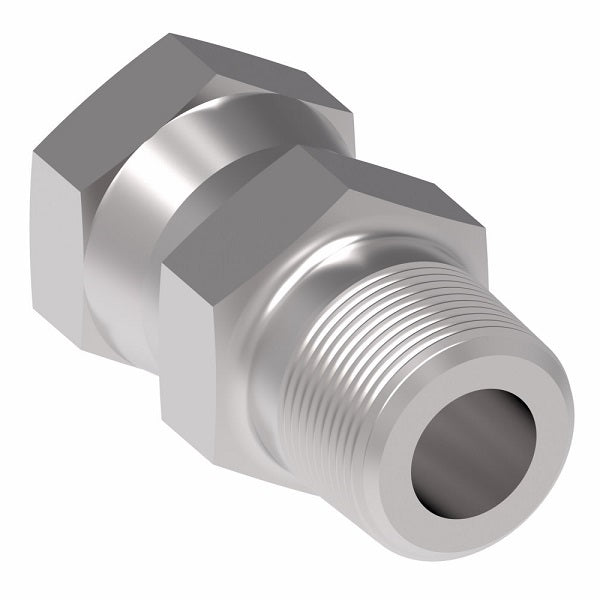

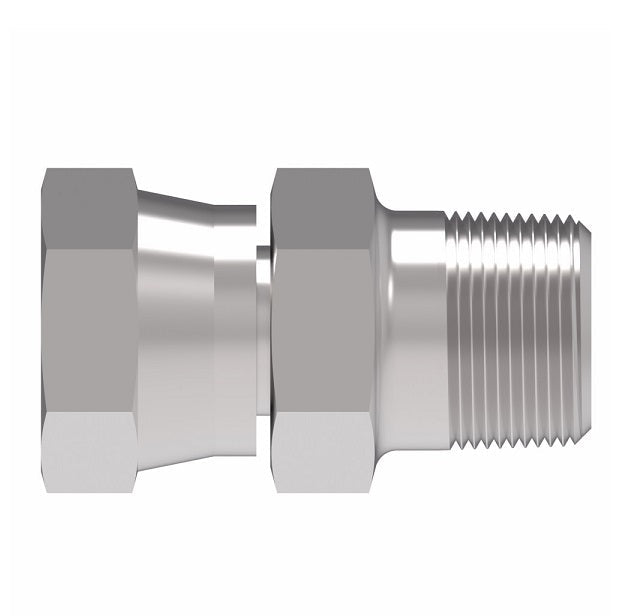

307-2045-4-4 Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | Loctite Vibra-Seal | -04 Female NPSM x -04 Male NPTF | Steel
307-2045-4-4 Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | Loctite Vibra-Seal | -04 Female NPSM x -04 Male NPTF | Steel
307-2045-4-4 Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | Loctite Vibra-Seal | -04 Female NPSM x -04 Male NPTF | Steel
307-2045-4-4 Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | Loctite Vibra-Seal | -04 Female NPSM x -04 Male NPTF | Steel

307-2045-4-4 Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | Loctite Vibra-Seal | -04 Female NPSM x -04 Male NPTF | Steel

$5.13 - $5.13
$5.13
$5.13 - $5.13
$5.13

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Male NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 307-2045-4-4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPSM, 1/4in Male NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140130
Steel
Part Number 		Steel
with Loctite Vibra-Seal
Part Number 		Thread P1 Thread P2 A
2045-2-2S - 1/8-27 1/8-27 0.96"
2045-2-4S - 1/8-27 1/4-18 1.14"
2045-3-4S - - 1/4-18 -
2045-4-2S - 1/4-18 1/8-27 -
2045-4-4S 307-2045-4-4 1/4-18 1/4-18 1.26"
2045-4-6S - 1/4-18 3/8-18 1.26"
2045-4-8S - 1/4-18 1/2-14 1.51"
2045-6-4S - 3/8-18 1/4-18 1.26"
2045-6-6S - 3/8-18 3/8-18 1.32"
2045-6-8S - 3/8-18 1/2-14 1.58"
2045-8-6S - 1/2-14 3/8-18 1.37"
2045-8-8S - 1/2-14 1/2-14 1.62"
2045-8-12S - 1/2-14 3/4-14 1.62"
2045-12-8S - 3/4-14 1/2-14 -
2045-12-12S - 3/4-14 3/4-14 1.75"
2045-12-16S - 3/4-14 1-11-1/2 2.00"
2045-16-12S - 1-11-1/2 3/4-14 1.76"
2045-16-16S - 1-11-1/2 1-11-1/2 2.02"
2045-16-20S - 1-11-1/2 1-1/4-11-1/2 -
2045-20-16S - 1-1/4-11-1/2 1-11-1/2 2.10"
2045-20-20S - 1-1/4-11-1/2 1-1/4-11-1/2 2.08"
2045-20-24S - 1-1/4-11-1/2 1-1/2-11-1/2 -
2045-24-20S - 1-1/2-11-1/2 1-1/4-11-1/2 2.17"
2045-24-24S - 1-1/2-11-1/2 1-1/2-11-1/2 2.20"
2045-32-32S - 2-11-1/2 2-11-1/2 2.39"
