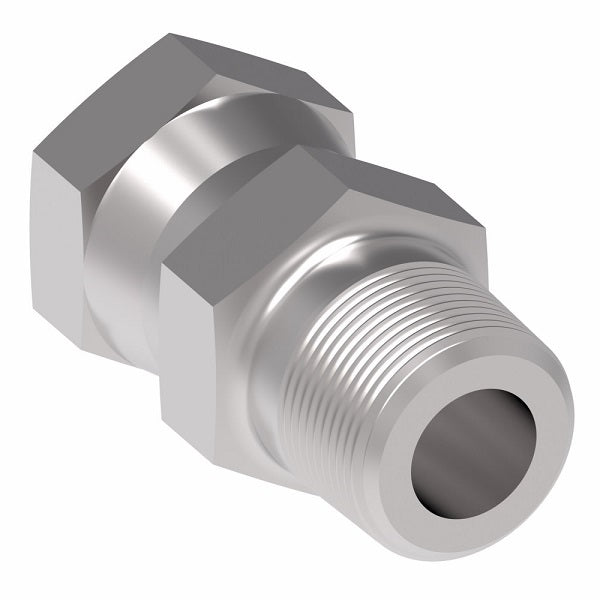

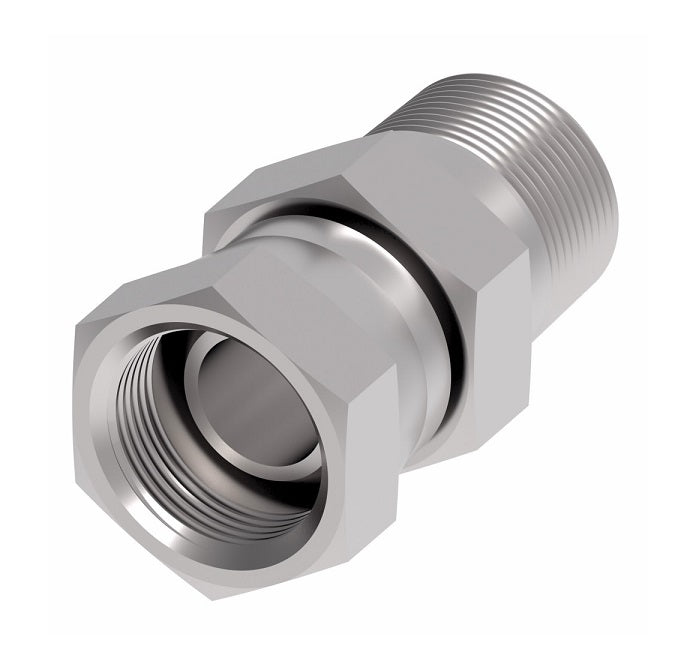

2045-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2045-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2045-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -16 Female NPSM x -16 Male NPTF | Steel
2045-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -16 Female NPSM x -16 Male NPTF | Steel

2045-16-16S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter | -16 Female NPSM x -16 Male NPTF | Steel

$12.16 - $12.16
$12.16
$12.16 - $12.16
$12.16

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Straight Adapter
Female NPSM x Male NPTF
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2045-16-16S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female NPSM, 1in Male NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140130
Steel
Part Number 		Steel
with Loctite Vibra-Seal
Part Number 		Thread P1 Thread P2 A
2045-2-2S - 1/8-27 1/8-27 0.96"
2045-2-4S - 1/8-27 1/4-18 1.14"
2045-3-4S - - 1/4-18 -
2045-4-2S - 1/4-18 1/8-27 -
2045-4-4S 307-2045-4-4 1/4-18 1/4-18 1.26"
2045-4-6S - 1/4-18 3/8-18 1.26"
2045-4-8S - 1/4-18 1/2-14 1.51"
2045-6-4S - 3/8-18 1/4-18 1.26"
2045-6-6S - 3/8-18 3/8-18 1.32"
2045-6-8S - 3/8-18 1/2-14 1.58"
2045-8-6S - 1/2-14 3/8-18 1.37"
2045-8-8S - 1/2-14 1/2-14 1.62"
2045-8-12S - 1/2-14 3/4-14 1.62"
2045-12-8S - 3/4-14 1/2-14 -
2045-12-12S - 3/4-14 3/4-14 1.75"
2045-12-16S - 3/4-14 1-11-1/2 2.00"
2045-16-12S - 1-11-1/2 3/4-14 1.76"
2045-16-16S - 1-11-1/2 1-11-1/2 2.02"
2045-16-20S - 1-11-1/2 1-1/4-11-1/2 -
2045-20-16S - 1-1/4-11-1/2 1-11-1/2 2.10"
2045-20-20S - 1-1/4-11-1/2 1-1/4-11-1/2 2.08"
2045-20-24S - 1-1/4-11-1/2 1-1/2-11-1/2 -
2045-24-20S - 1-1/2-11-1/2 1-1/4-11-1/2 2.17"
2045-24-24S - 1-1/2-11-1/2 1-1/2-11-1/2 2.20"
2045-32-32S - 2-11-1/2 2-11-1/2 2.39"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
