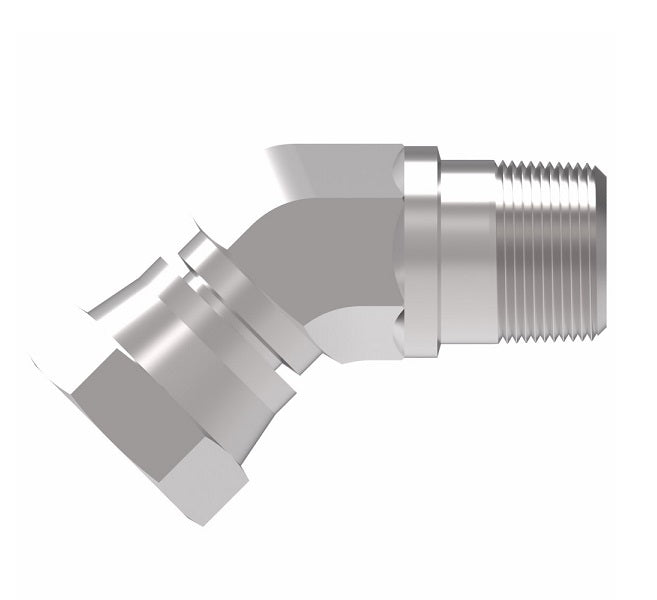

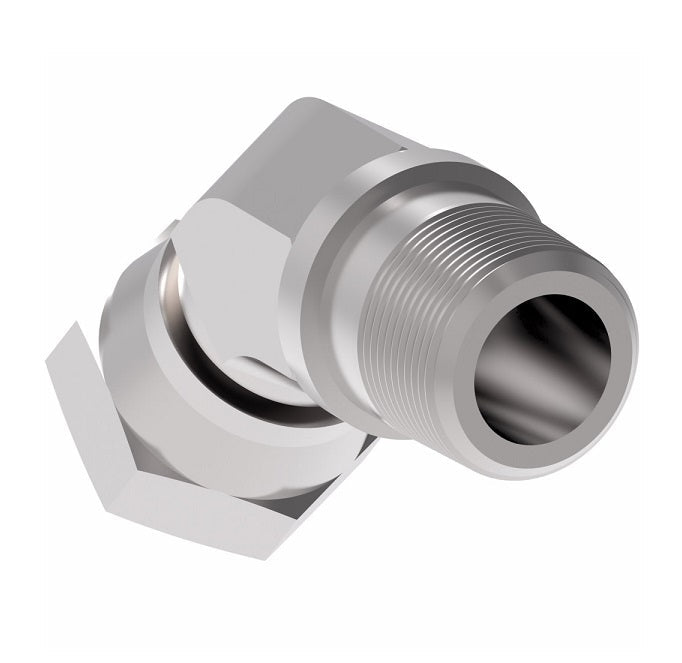

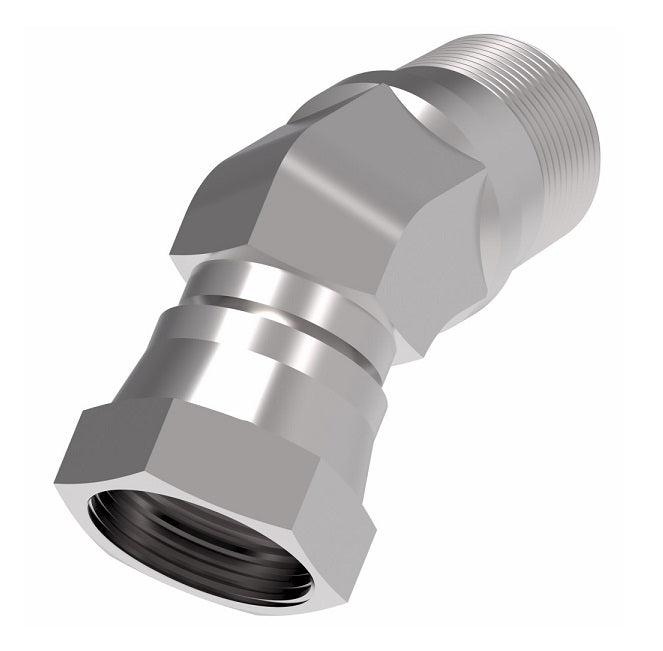

2049-16-20S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -16 Female NPSM x -20 Male NPTF | Steel
2049-16-20S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -16 Female NPSM x -20 Male NPTF | Steel
2049-16-20S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -16 Female NPSM x -20 Male NPTF | Steel
2049-16-20S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -16 Female NPSM x -20 Male NPTF | Steel

2049-16-20S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -16 Female NPSM x -20 Male NPTF | Steel

$58.80 - $58.80
$58.80
$58.80 - $58.80
$58.80

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Adapter
Female NPSM x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2049-16-20S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female NPSM, 1-1/4in Male NPTF
Special Properties: Swivel
Specifications:
  • Ref. SAE 140330
Steel
Part Number 		Thread P1 Thread P2 A B
2049-2-2S 1/8-27 1/8-27 0.67" 0.70"
2049-4-2S 1/4-18 1/8-27 0.79" 0.67"
2049-4-4S 1/4-18 1/4-18 0.79" 0.97"
2049-4-6S 1/4-18 3/8-18 0.80" 1.06"
2049-4-8S 1/4-18 1/2-14 - -
2049-6-4S 3/8-18 1/4-18 0.92" 1.00"
2049-6-6S 3/8-18 3/8-18 0.92" 1.09"
2049-6-8S 3/8-18 1/2-14 0.92" 1.41"
2049-8-6S 1/2-14 3/8-18 0.91" 1.09"
2049-8-8S 1/2-14 1/2-14 0.91" 1.41"
2049-8-12S 1/2-14 3/4-14 0.91" 1.53"
2049-12-8S 3/4-14 1/2-14 - -
2049-12-12S 3/4-14 3/4-14 1.10" 1.53"
2049-12-16S 3/4-14 1-11-1/2 1.03" 1.50"
2049-16-12S 1-11-1/2 3/4-14 - -
2049-16-16S 1-11-1/2 1-11-1/2 1.26" 1.53"
2049-16-20S 1-11-1/2 1-1/4-11-1/2 1.30" 1.84"
2049-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.45" 1.84"
2049-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 1.41" 2.00"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
