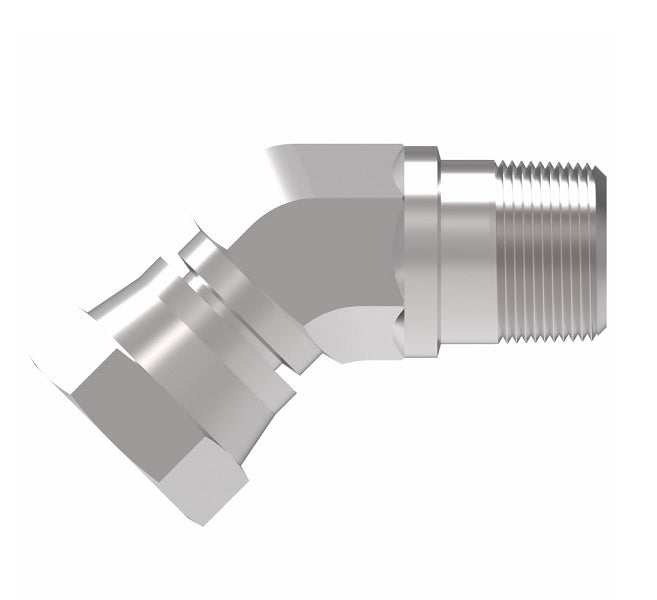

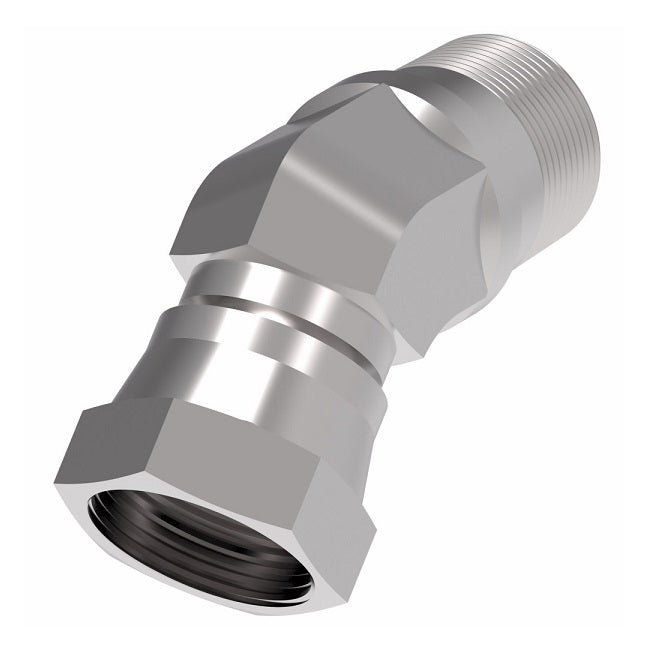

2049-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -08 Female NPSM x -08 Male NPTF | Steel
2049-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -08 Female NPSM x -08 Male NPTF | Steel
2049-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -08 Female NPSM x -08 Male NPTF | Steel
2049-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -08 Female NPSM x -08 Male NPTF | Steel

2049-8-8S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/External Pipe 45° Elbow Adapter | -08 Female NPSM x -08 Male NPTF | Steel

$16.33 - $16.33
$16.33
$16.33 - $16.33
$16.33

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/External Pipe Adapter
Female NPSM x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2049-8-8S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female NPSM, 1/2in Male NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140330
Steel
Part Number 		Thread P1 Thread P2 A B
2049-2-2S 1/8-27 1/8-27 0.67" 0.70"
2049-4-2S 1/4-18 1/8-27 0.79" 0.67"
2049-4-4S 1/4-18 1/4-18 0.79" 0.97"
2049-4-6S 1/4-18 3/8-18 0.80" 1.06"
2049-4-8S 1/4-18 1/2-14 - -
2049-6-4S 3/8-18 1/4-18 0.92" 1.00"
2049-6-6S 3/8-18 3/8-18 0.92" 1.09"
2049-6-8S 3/8-18 1/2-14 0.92" 1.41"
2049-8-6S 1/2-14 3/8-18 0.91" 1.09"
2049-8-8S 1/2-14 1/2-14 0.91" 1.41"
2049-8-12S 1/2-14 3/4-14 0.91" 1.53"
2049-12-8S 3/4-14 1/2-14 - -
2049-12-12S 3/4-14 3/4-14 1.10" 1.53"
2049-12-16S 3/4-14 1-11-1/2 1.03" 1.50"
2049-16-12S 1-11-1/2 3/4-14 - -
2049-16-16S 1-11-1/2 1-11-1/2 1.26" 1.53"
2049-16-20S 1-11-1/2 1-1/4-11-1/2 1.30" 1.84"
2049-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.45" 1.84"
2049-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 1.41" 2.00"
