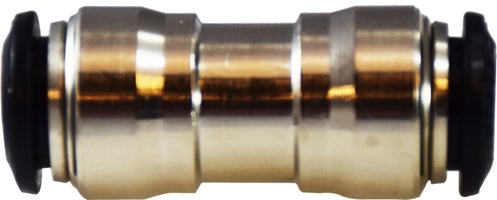

20604N Midland Push-In Fitting - Metric Union - 12mm Tube OD - Nickel Plated Brass

20604N by Midland | Push-In Fitting | Metric Union | 12mm Tube OD | Nickel Plated Brass

Save $0.60 Save $0.60
$8.72
$8.72 - $8.72
$8.72
$8.12
$8.12 - $8.12
$8.12

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Union

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 168 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20604N Midland
Shape (Orientation): Straight
Ends Configuration: 12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Part Number Tube O.D.
(mm)		 Tube O.D.
(mm)		 A B
20600N 4mm - 1.190" 0.410"
20724N 5mm - 1.287" 0.449"
20725N 6mm 4mm 1.248" 0.488"
20601N 6mm - 1.326" 0.488"
20726N 8mm 6mm 1.365" 0.566"
20727N 8mm - 1.404" 0.566"
20728N 10mm 8mm 1.638" 0.683"
20603N 10mm - 1.638" 0.683"
20729N 12mm 10mm 1.833" 0.800"
20604N 12mm - 1.833" 0.800"
20730N 14mm - 1.911" 0.839"

Dimension data can change without notice.
