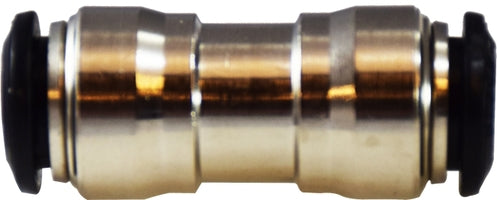

20730N Midland Push-In Fitting - Metric Union - 14mm Tube OD - Nickel Plated Brass

20730N by Midland | Push-In Fitting | Metric Union | 14mm Tube OD | Nickel Plated Brass

Save $10.33 Save $10.33
$25.83
$25.83 - $25.83
$25.83
$15.50
$15.50 - $15.50
$15.50

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Union

Inventory @ Manufacturers Warehouse: 149 Units
Specifications for Variant SKU: 20730N Midland
Shape (Orientation): Straight
Ends Configuration: 14mm Push-to-Connect, 14mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Part Number Tube O.D.
(mm)		 Tube O.D.
(mm)		 A B
20723N
 3mm - 1.014" 0.332"
20600N
 4mm - 1.190" 0.410"
20724N
 5mm - 1.287" 0.449"
20725N
 6mm 4mm 1.248" 0.488"
20601N
 6mm - 1.326" 0.488"
20726N
 8mm 6mm 1.365" 0.566"
20727N
 8mm - 1.404" 0.566"
20728N
 10mm 8mm 1.638" 0.683"
20603N
 10mm - 1.638" 0.683"
20729N
 12mm 10mm 1.833" 0.800"
20604N
 12mm - 1.833" 0.800"
20730N
 14mm - 1.911" 0.839"

Dimension data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
