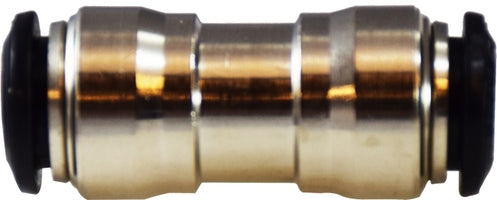

20723N by Midland | Push-In Fitting | Metric Union | 3mm Tube OD | Straight | Nickel Plated Brass

Save $5.61

$14.03

$14.03 - $14.03

$14.03

$8.42

$8.42 - $8.42

$8.42

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Union

Specifications for Variant SKU: 20723N Midland
Shape (Orientation):	Straight
Ends Configuration:	3mm Push-to-Connect, 3mm Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass

Features:
Saves time and money No stripped threads No stripped parts Reduce inventory Completely reusable Quick installation No pitch identification
Specifications:
Tolerance: +/- .02 on all dimensions Max Operating Pressure: Vacuum to 290PSI Min Temperature: -4°F Max Temperature: 176°F Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer Media: Compressed air, water, vacuum

Component Parts and Materials:
Body	Brass - Nickel Plated
Thrust Ring	Acetalic Resin/ Glass filled Nylon
Sleeve	Brass - Nickel Plated
Gripper Collet	Stainless Steel
Safety Ring	PA66
Lip Seal (1/8" O-Ring Seal)	NBR 70
Thread Seal	NBR 70


Part Number	Tube O.D. (mm)	Tube O.D. (mm)	A	B
20723N	3mm	-	1.014"	0.332"
20600N	4mm	-	1.190"	0.410"
20724N	5mm	-	1.287"	0.449"
20725N	6mm	4mm	1.248"	0.488"
20601N	6mm	-	1.326"	0.488"
20726N	8mm	6mm	1.365"	0.566"
20727N	8mm	-	1.404"	0.566"
20728N	10mm	8mm	1.638"	0.683"
20603N	10mm	-	1.638"	0.683"
20729N	12mm	10mm	1.833"	0.800"
20604N	12mm	-	1.833"	0.800"
20730N	14mm	-	1.911"	0.839"

Dimension data can change without notice.
