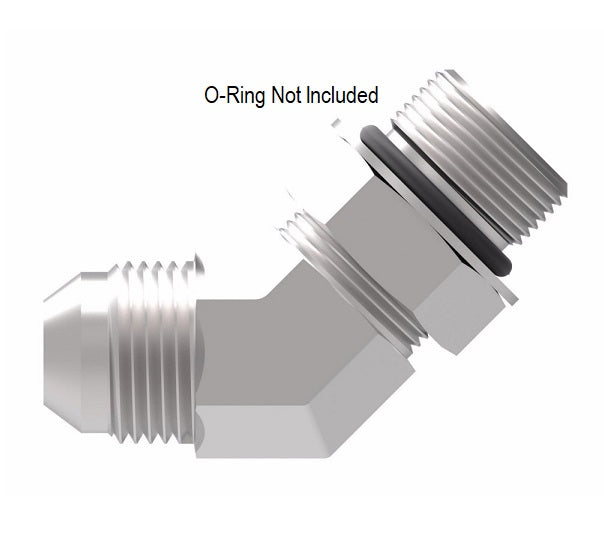

2061-1-8-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter (without O-Ring) | -08 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2061-1-8-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter (without O-Ring) | -08 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2061-1-8-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter (without O-Ring) | -08 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
2061-1-8-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter (without O-Ring) | -08 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

2061-1-8-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter (without O-Ring) | -08 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

$13.05 - $13.05
$13.05
$13.05 - $13.05
$13.05

Aeroquip® by Danfoss
SAE ORB (adj.)/37° JIC Flare Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2061-1-8-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070320
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring 		Part Number
Steel
Viton O-Ring
Tube O.D. Thread T1 Thread T2 A B
2061-4-4S - - 0.25" 7/16-20 7/16-20 1.05" 0.72"
2061-5-5S - - - 1/2-20 1/2-20 - -
2061-6-4S - - 0.25" 9/16-18 7/16-20 1.14" 0.82"
2061-6-6S - - 0.38" 9/16-18 9/16-18 1.14" 0.83"
2061-6-8S - - 0.50" 9/16-18 3/4-16 1.20" 0.98"
2061-8-6S - - 0.38" 3/4-16 9/16-18 1.30" 0.87"
2061-8-8S - - 0.50" 3/4-16 3/4-16 1.30" 0.98"
2061-8-10S 2061-1-8-10S - 0.63" 3/4-16 7/8-14 1.36" 1.11"
2061-10-8S - - 0.50" 7/8-14 3/4-16 1.52" 0.99"
2061-10-10S - - 0.63" 7/8-14 7/8-14 1.52" 1.11"
2061-10-12S - - 0.75" 7/8-14 1-1/16-12 1.57" 1.28"
2061-12-8S - - 0.50" 1-1/16-12 3/4-16 1.73" 1.04"
2061-12-10S - - 0.63" 1-1/16-12 7/8-14 1.73" 1.16"
2061-12-12S - - 0.75" 1-1/16-12 1-1/16-12 1.73" 1.28"
2061-12-16S - - 1.00" 1-1/16-12 1-5/16-12 1.86" 1.47"
2061-16-12S - - 0.75" 1-5/16-12 1-1/16-12 1.86" 1.42"
2061-16-16S - 213-2061-16-16 1.00" 1-5/16-12 1-5/16-12 1.86" 1.47"
2061-16-20S - - 1.25" 1-5/16-12 1-5/8-12 1.91" 1.59"
2061-20-16S - - 1.00" 1-5/8-12 1-5/16-12 1.91" 1.54"
2061-20-20S - 213-2061-20-20 1.25" 1-5/8-12 1-5/8-12 1.91" 1.59"
