2061-12-12S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare | Steel
2061-12-12S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare | Steel
2061-12-12S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare | Steel
2061-12-12S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare | Steel

2061-12-12S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare 45° Elbow Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare | Steel

$13.73 - $13.73
$13.73
$13.73 - $13.73
$13.73

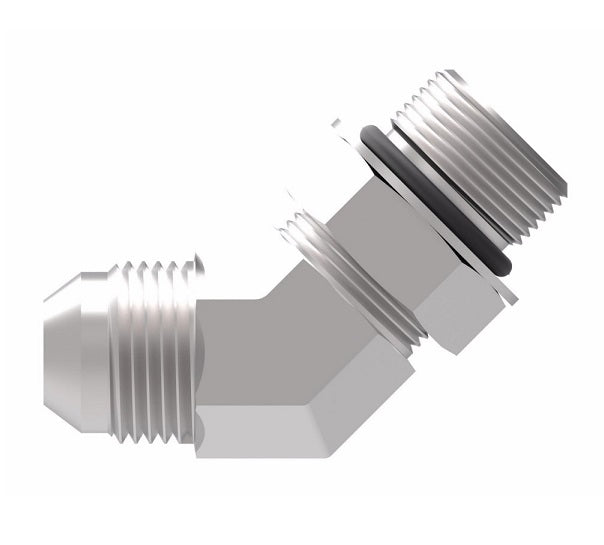

Aeroquip® by Danfoss
SAE ORB (adj.)/37° JIC Flare Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2061-12-12S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Male JIC
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Specifications:
  • Ref. SAE 070320
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring 		Part Number
Steel
Viton O-Ring
Tube O.D. Thread T1 Thread T2 A B
2061-4-4S - - 0.25" 7/16-20 7/16-20 1.05" 0.72"
2061-5-5S - - - 1/2-20 1/2-20 - -
2061-6-4S - - 0.25" 9/16-18 7/16-20 1.14" 0.82"
2061-6-6S - - 0.38" 9/16-18 9/16-18 1.14" 0.83"
2061-6-8S - - 0.50" 9/16-18 3/4-16 1.20" 0.98"
2061-8-6S - - 0.38" 3/4-16 9/16-18 1.30" 0.87"
2061-8-8S - - 0.50" 3/4-16 3/4-16 1.30" 0.98"
2061-8-10S 2061-1-8-10S - 0.63" 3/4-16 7/8-14 1.36" 1.11"
2061-10-8S - - 0.50" 7/8-14 3/4-16 1.52" 0.99"
2061-10-10S - - 0.63" 7/8-14 7/8-14 1.52" 1.11"
2061-10-12S - - 0.75" 7/8-14 1-1/16-12 1.57" 1.28"
2061-12-8S - - 0.50" 1-1/16-12 3/4-16 1.73" 1.04"
2061-12-10S - - 0.63" 1-1/16-12 7/8-14 1.73" 1.16"
2061-12-12S - - 0.75" 1-1/16-12 1-1/16-12 1.73" 1.28"
2061-12-16S - - 1.00" 1-1/16-12 1-5/16-12 1.86" 1.47"
2061-16-12S - - 0.75" 1-5/16-12 1-1/16-12 1.86" 1.42"
2061-16-16S - 213-2061-16-16 1.00" 1-5/16-12 1-5/16-12 1.86" 1.47"
2061-16-20S - - 1.25" 1-5/16-12 1-5/8-12 1.91" 1.59"
2061-20-16S - - 1.00" 1-5/8-12 1-5/16-12 1.91" 1.54"
2061-20-20S - 213-2061-20-20 1.25" 1-5/8-12 1-5/8-12 1.91" 1.59"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
