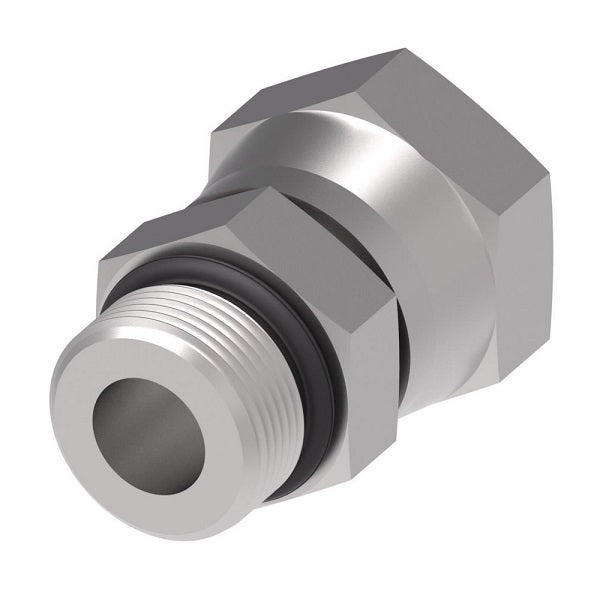

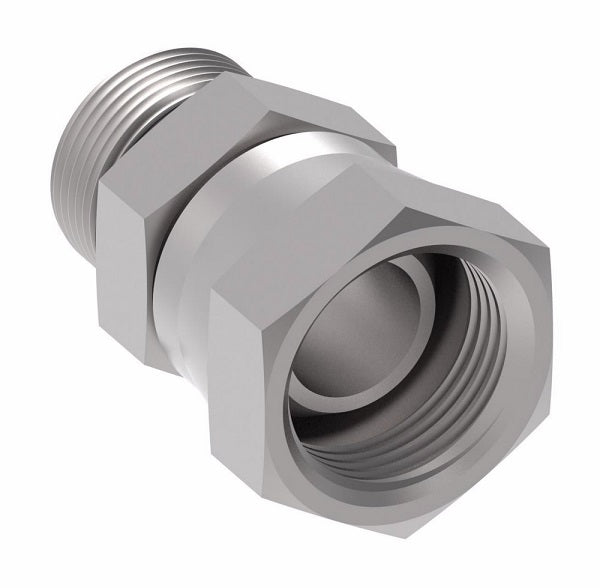

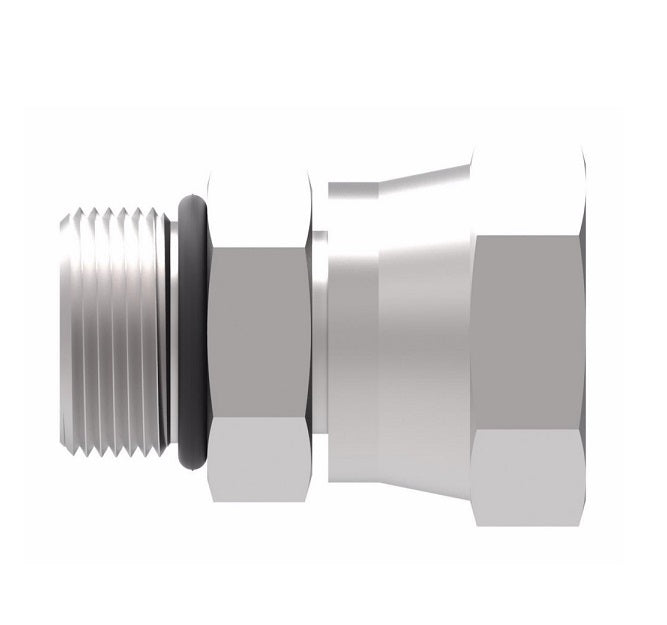

2066-16-16S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -16 Female NPSM Swivel x -16 Male SAE O-Ring Boss | Steel
2066-16-16S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -16 Female NPSM Swivel x -16 Male SAE O-Ring Boss | Steel
2066-16-16S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -16 Female NPSM Swivel x -16 Male SAE O-Ring Boss | Steel
2066-16-16S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -16 Female NPSM Swivel x -16 Male SAE O-Ring Boss | Steel

2066-16-16S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -16 Female NPSM Swivel x -16 Male SAE O-Ring Boss | Steel

$35.94 - $35.94
$35.94
$35.94 - $35.94
$35.94

Aeroquip® by Danfoss
Internal Pipe NPSM Swivel/SAE O-Ring Boss Adapter
Female NPSM Swivel x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2066-16-16S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female NPSM, 1in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A
2066-4-4S 1/4-18 7/16-20 1.05"
2066-4-5S 1/4-18 1/2-20 1.27"
2066-4-6S 1/4-18 9/16-18 1.14"
2066-4-8S 1/4-18 3/4-16 1.51"
2066-6-4S 3/8-18 7/16-20 1.30"
2066-6-6S 3/8-18 9/16-18 1.14"
2066-6-8S 3/8-18 3/4-16 1.19"
2066-6-10S 3/8-18 7/8-14 1.57"
2066-8-6S 1/2-14 9/16-18 1.55"
2066-8-8S 1/2-14 3/4-16 1.23"
2066-8-10S 1/2-14 7/8-14 1.30"
2066-8-12S 1/2-14 1-1/16-12 1.46"
2066-12-8S 3/4-14 3/4/16 1.49"
2066-12-10S 3/4-14 7/8-14 1.55"
2266-12-12S 3/4-14 1-1/16-12 1.58"
2266-12-14S 3/4-14 1-3/16-12 1.58"
2066-12-16S 3/4-14 9/16-18 2.19"
2066-16-16S 1-11-1/2 1-5/16-12 1.59"
2266-16-20S 1-11-1/2 1-5/8-12 1.59"
2066-20-20S 1-1/4-11 1/2 1-5/8-12 -
2066-24-24S 1 7/8-12 1-1/2-11-1/2 2.44"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
