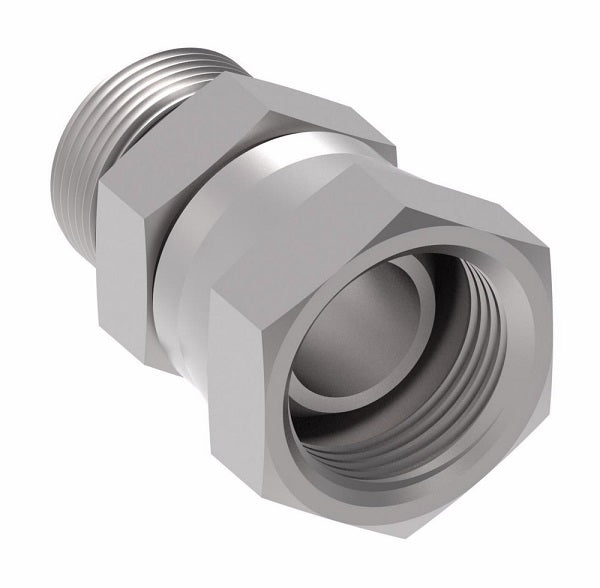

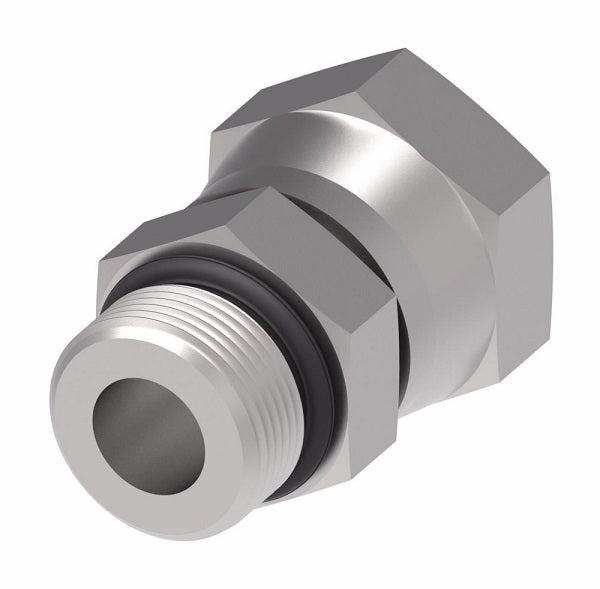

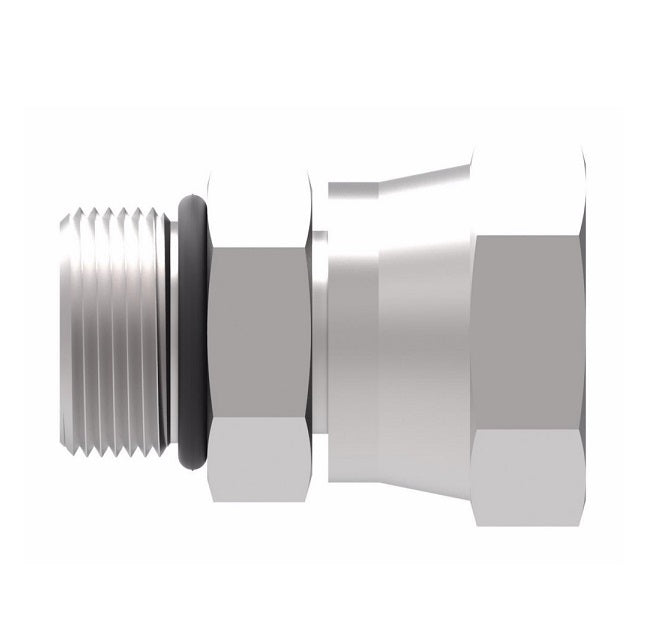

2066-4-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -04 Female NPSM Swivel x -06 Male SAE O-Ring Boss | Steel
2066-4-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -04 Female NPSM Swivel x -06 Male SAE O-Ring Boss | Steel
2066-4-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -04 Female NPSM Swivel x -06 Male SAE O-Ring Boss | Steel
2066-4-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -04 Female NPSM Swivel x -06 Male SAE O-Ring Boss | Steel

2066-4-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB Adapter | -04 Female NPSM Swivel x -06 Male SAE O-Ring Boss | Steel

$20.16 - $20.16
$20.16
$20.16 - $20.16
$20.16

Aeroquip® by Danfoss
Internal Pipe NPSM Swivel/SAE O-Ring Boss Adapter
Female NPSM Swivel x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2066-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPSM, 3/8in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A
2066-4-4S 1/4-18 7/16-20 1.05"
2066-4-5S 1/4-18 1/2-20 1.27"
2066-4-6S 1/4-18 9/16-18 1.14"
2066-4-8S 1/4-18 3/4-16 1.51"
2066-6-4S 3/8-18 7/16-20 1.30"
2066-6-6S 3/8-18 9/16-18 1.14"
2066-6-8S 3/8-18 3/4-16 1.19"
2066-6-10S 3/8-18 7/8-14 1.57"
2066-8-6S 1/2-14 9/16-18 1.55"
2066-8-8S 1/2-14 3/4-16 1.23"
2066-8-10S 1/2-14 7/8-14 1.30"
2066-8-12S 1/2-14 1-1/16-12 1.46"
2066-12-8S 3/4-14 3/4/16 1.49"
2066-12-10S 3/4-14 7/8-14 1.55"
2266-12-12S 3/4-14 1-1/16-12 1.58"
2266-12-14S 3/4-14 1-3/16-12 1.58"
2066-12-16S 3/4-14 9/16-18 2.19"
2066-16-16S 1-11-1/2 1-5/16-12 1.59"
2266-16-20S 1-11-1/2 1-5/8-12 1.59"
2066-20-20S 1-1/4-11 1/2 1-5/8-12 -
2066-24-24S 1 7/8-12 1-1/2-11-1/2 2.44"
