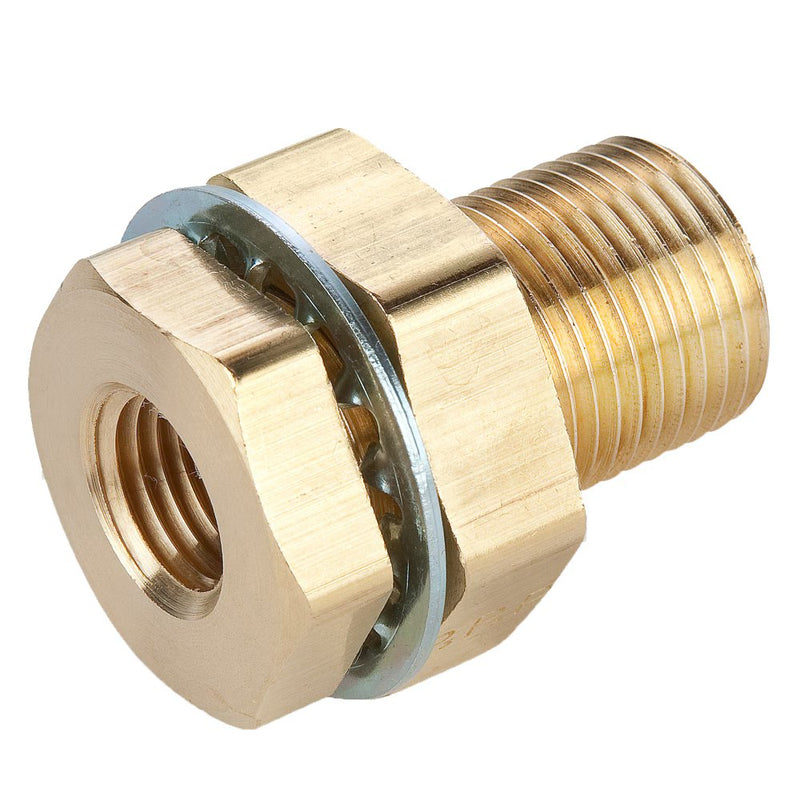

207ACBH-16 by Parker | Legris Bulkhead Union | 1" Female NPTF Thread x 1-5/8" Thread | 2" Hex (B) | 2" Hex (C) | 1.68" Length | Straight | Brass

207ACBH-16 by Parker | Legris Bulkhead Union | 1" Female NPTF Thread x 1-5/8" Thread | 2" Hex (B) | 2" Hex (C) | 1.68" Length | Straight | Brass

Save $30.23 Save $30.23
$252.84
$252.84 - $252.84
$252.84
$222.61
$222.61 - $222.61
$222.61

by Parker Hannifin
Brass Adapters:207ACBH Bulkhead Union, Female NPTF Thread
Specifications for Variant SKU: 207ACBH-16 Parker
Series: 207ACBH Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number Female Pipe Thread Straight Thread Max Bulkhead (P) Hex (B) Hex (C) L Bulkhead Hole Diameter (H) Flow Diameter (D)
207ACBH-2 1/8" 5/8"-18 .89" 7/8" 15/16" 1.50" 5/8" .339"
207ACBHS-2 1/8" 5/8"-18 .35" 7/8" 15/16" .96" 5/8" .339"
207ACBH-4 1/4" 3/4"-16 .81" 1" 1-1/8" 1.50" 3/4" .441"
207ACBHS-4 1/4" 3/4"-16 .26" 1" 1" .94" 3/4" .441"
207ACBH-6 3/8" 1"-18 .62" 1-1/8" 1-1/4" 1.31" 1" .571"
207ACBH-8 1/2" 1-1/8"-14 .75" 1-1/4" 1-3/8" 1.50" 1-1/8" .703"
207ACBH-12 3/4" 1-5/16"-12 .65" 1-1/2" 1-1/2" 1.50" 1-5/16" .906"
207ACBH-16* 1" 1-5/8"-14 1.00" 2" 2" 1.68" 1-5/8" 1.140"

*Lock Washer not Available
