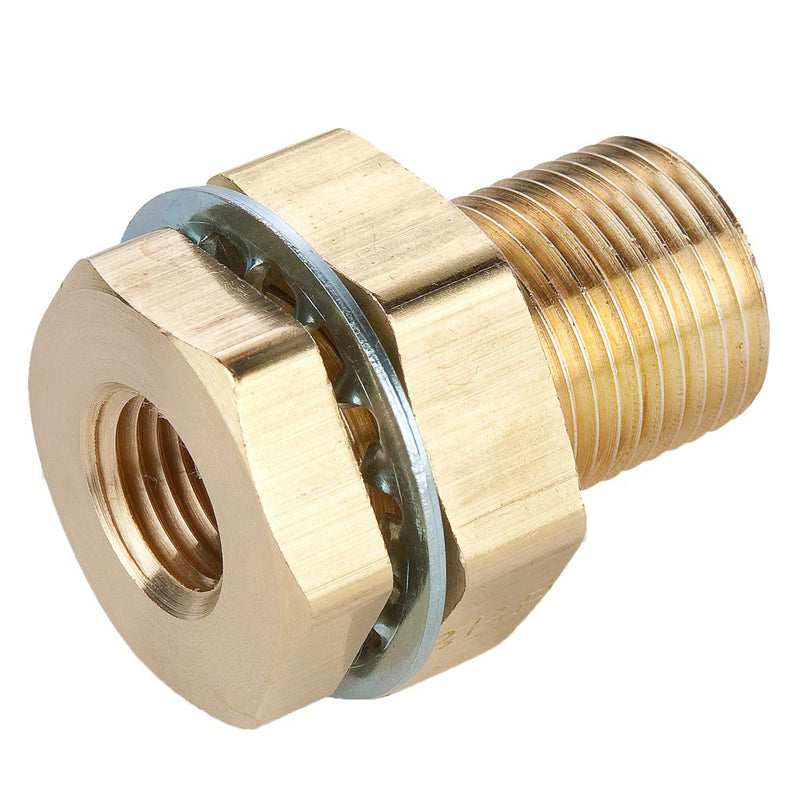

207ACBH-2 by Parker | Legris Bulkhead Union | 1/8" Female NPTF Thread x 5/8" Thread | 7/8" Hex (B) | 15/16" Hex (C) | 1.50" Length | Straight | Brass | Pack of 10

Save $21.69

$151.82

$151.82 - $151.82

$151.82

$130.13

$130.13 - $130.13

$130.13

by Parker Hannifin
Brass Adapters:207ACBH Bulkhead Union, Female NPTF Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 207ACBH-2 Parker \| 10 \|
Series:	207ACBH Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	Female Pipe Thread	Straight Thread	Max Bulkhead (P)	Hex (B)	Hex (C)	L	Bulkhead Hole Diameter (H)	Flow Diameter (D)
207ACBH-2	1/8"	5/8"-18	.89"	7/8"	15/16"	1.50"	5/8"	.339"
207ACBHS-2	1/8"	5/8"-18	.35"	7/8"	15/16"	.96"	5/8"	.339"
207ACBH-4	1/4"	3/4"-16	.81"	1"	1-1/8"	1.50"	3/4"	.441"
207ACBHS-4	1/4"	3/4"-16	.26"	1"	1"	.94"	3/4"	.441"
207ACBH-6	3/8"	1"-18	.62"	1-1/8"	1-1/4"	1.31"	1"	.571"
207ACBH-8	1/2"	1-1/8"-14	.75"	1-1/4"	1-3/8"	1.50"	1-1/8"	.703"
207ACBH-12	3/4"	1-5/16"-12	.65"	1-1/2"	1-1/2"	1.50"	1-5/16"	.906"
207ACBH-16*	1"	1-5/8"-14	1.00"	2"	2"	1.68"	1-5/8"	1.140"

*Lock Washer not Available

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
