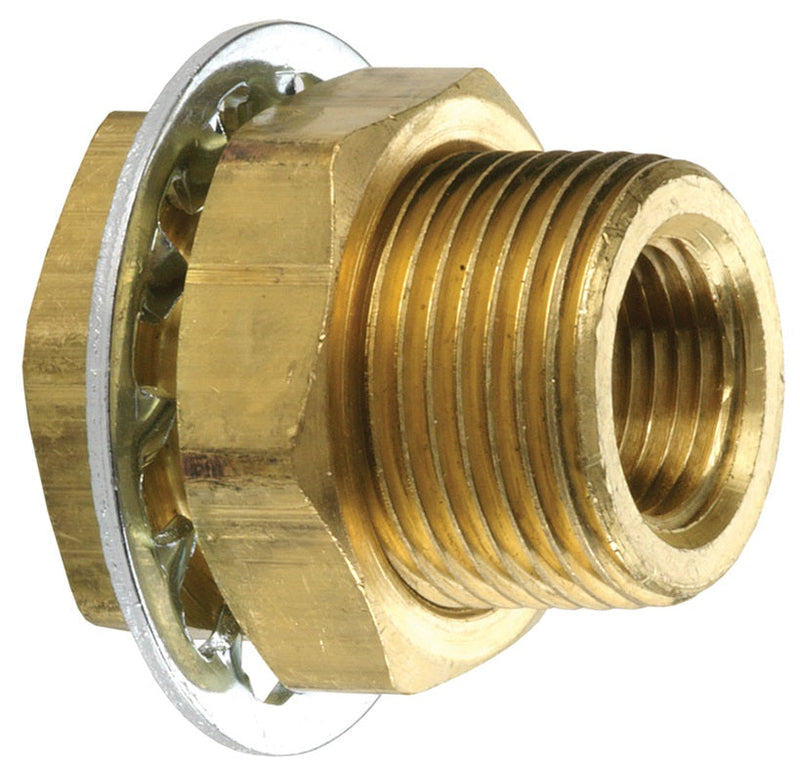

207BH12 by Dixon Valve | Bulkhead Coupling | 3/4" Female NPTF | 1-5/16" External Male UNS | 1.50" Length | Brass

207BH12 by Dixon Valve | Bulkhead Coupling | 3/4" Female NPTF | 1-5/16" External Male UNS | 1.50" Length | Brass

Save $3.43 Save $3.43
$40.60
$40.60 - $40.60
$40.60
$37.17
$37.17 - $37.17
$37.17

Dixon Valve
Bulkhead Couplings

Used to connect a tube or housing through a wall or other barrier.
Specifications for Variant SKU: 207BH12 Dixon
Shape (Orientation): Straight
Material(s): Brass
Material:
  • Brass: Washer nut is 12L14 Steel
  • 316 Stainless Steel: 316SS Body and nut, FKM FPM Washer
Assembly Instructions:
  • Remove jam & washer nut if assembled.
  • Insert bulkhead through wall/barrier.
  • Finger tighten, then completely secure nut with wrench.
Brass
Part Number		 316 Stainless Steel
Part Number
(NPT THREADS) 		Female
NPTF		 External
Male UNS		 Length
207BH2 207BH2SS 1/8" 5/8" 1.50"
207BH4 207BH4SS 1/4" 3/4" 1.50"
207BH4S - 1/4" 3/4" 0.94"
207BH6 207BH6SS 3/8" 1" 1.31"
207BH8-6 - 1/2" x 3/8" 1-1/8" 1.50"
207BH8 207BH8SS 1/2" 1-1/8" 1.50"
207BH12 207BH12SS 3/4" 1-5/16" 1.50"
