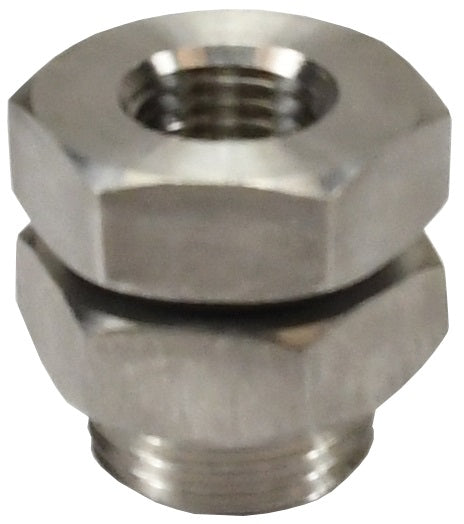

207BH8SS by Dixon Valve | Bulkhead Coupling | 1/2" Female NPT | 1-1/8" External Male UNS | 1.50" Length | 316 Stainless Steel

$19.08 - $19.08

$19.08

$19.51

$19.51 - $19.51

$19.51

Dixon Valve
Bulkhead Couplings

Used to connect a tube or housing through a wall or other barrier.

Quantity

Specifications for Variant SKU: 207BH8SS Dixon
Shape (Orientation):	Straight
Material(s):	316 Stainless Steel

Material:
Brass: Washer nut is 12L14 Steel 316 Stainless Steel: 316SS Body and nut, FKM FPM Washer
Assembly Instructions:
Remove jam & washer nut if assembled. Insert bulkhead through wall/barrier. Finger tighten, then completely secure nut with wrench.

Brass Part Number	316 Stainless Steel Part Number (NPT THREADS)	Female NPTF	External Male UNS	Length
207BH2	207BH2SS	1/8"	5/8"	1.50"
207BH4	207BH4SS	1/4"	3/4"	1.50"
207BH4S	-	1/4"	3/4"	0.94"
207BH6	207BH6SS	3/8"	1"	1.31"
207BH8-6	-	1/2" x 3/8"	1-1/8"	1.50"
207BH8	207BH8SS	1/2"	1-1/8"	1.50"
207BH12	207BH12SS	3/4"	1-5/16"	1.50"
