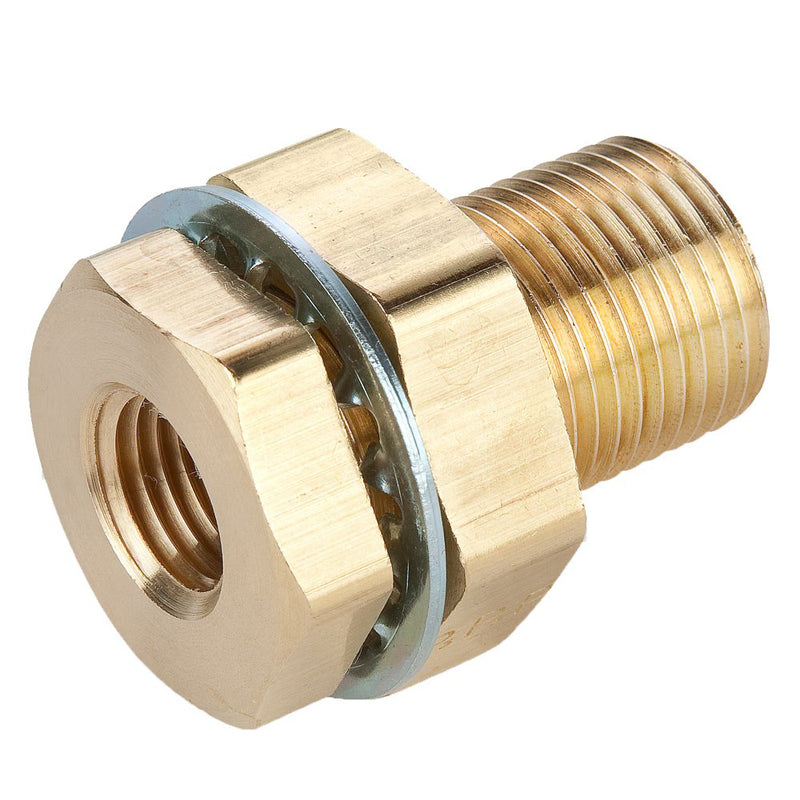

207ACBH-12 by Parker | Legris Bulkhead Union | 3/4" Female NPTF Thread x 1-5/16" Thread | 1-1/2" Hex (B) | 1-1/2" Hex (C) | 1.50" Length | Straight | Brass

207ACBH-12 by Parker | Legris Bulkhead Union | 3/4" Female NPTF Thread x 1-5/16" Thread | 1-1/2" Hex (B) | 1-1/2" Hex (C) | 1.50" Length | Straight | Brass

Save $58.24 Save $58.24
$145.60
$145.60 - $145.60
$145.60
$87.36
$87.36 - $87.36
$87.36

by Parker Hannifin
Brass Adapters:207ACBH Bulkhead Union, Female NPTF Thread
Specifications for Variant SKU: 207ACBH-12 Parker
Series: 207ACBH Series
Shape (Orientation): Straight
Material(s): Brass
Adapters and Manifolds:
Part Number Female Pipe Thread Straight Thread Max Bulkhead (P) Hex (B) Hex (C) L Bulkhead Hole Diameter (H) Flow Diameter (D)
207ACBH-2 1/8" 5/8"-18 .89" 7/8" 15/16" 1.50" 5/8" .339"
207ACBHS-2 1/8" 5/8"-18 .35" 7/8" 15/16" .96" 5/8" .339"
207ACBH-4 1/4" 3/4"-16 .81" 1" 1-1/8" 1.50" 3/4" .441"
207ACBHS-4 1/4" 3/4"-16 .26" 1" 1" .94" 3/4" .441"
207ACBH-6 3/8" 1"-18 .62" 1-1/8" 1-1/4" 1.31" 1" .571"
207ACBH-8 1/2" 1-1/8"-14 .75" 1-1/4" 1-3/8" 1.50" 1-1/8" .703"
207ACBH-12 3/4" 1-5/16"-12 .65" 1-1/2" 1-1/2" 1.50" 1-5/16" .906"
207ACBH-16* 1" 1-5/8"-14 1.00" 2" 2" 1.68" 1-5/8" 1.140"

*Lock Washer not Available

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
