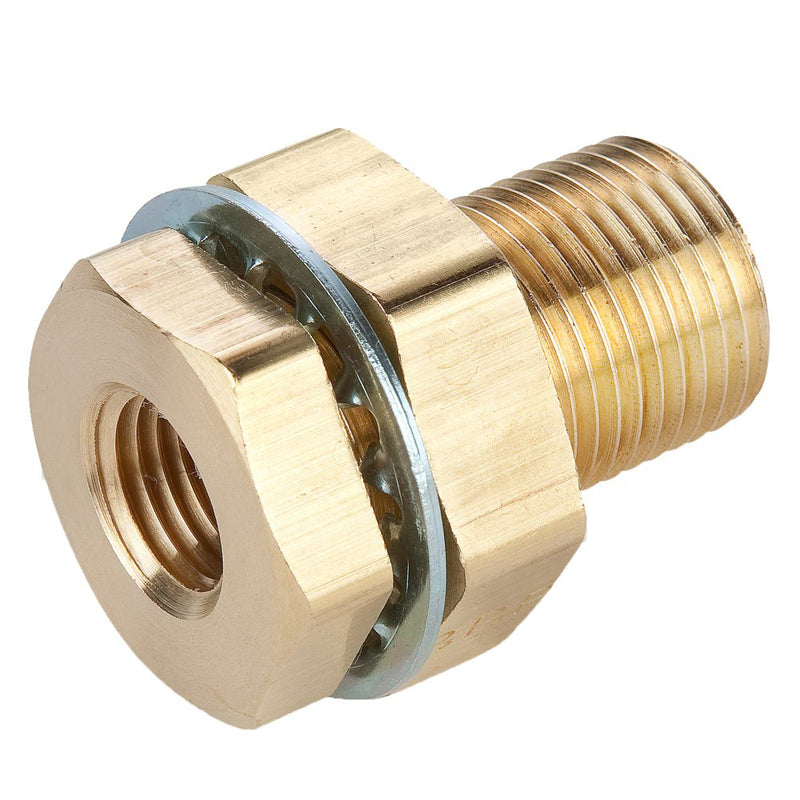

207ACBH-6 by Parker | Legris Bulkhead Union | 3/8" Female NPTF Thread x 1" Thread | 1-1/8" Hex (B) | 1-1/4" Hex (C) | 1.31" Length | Straight | Brass | Pack of 10

Save $178.13

$445.33

$445.33 - $445.33

$445.33

$267.20

$267.20 - $267.20

$267.20

by Parker Hannifin
Brass Adapters:207ACBH Bulkhead Union, Female NPTF Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 207ACBH-6 Parker \| 10 \|
Series:	207ACBH Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	Female Pipe Thread	Straight Thread	Max Bulkhead (P)	Hex (B)	Hex (C)	L	Bulkhead Hole Diameter (H)	Flow Diameter (D)
207ACBH-2	1/8"	5/8"-18	.89"	7/8"	15/16"	1.50"	5/8"	.339"
207ACBHS-2	1/8"	5/8"-18	.35"	7/8"	15/16"	.96"	5/8"	.339"
207ACBH-4	1/4"	3/4"-16	.81"	1"	1-1/8"	1.50"	3/4"	.441"
207ACBHS-4	1/4"	3/4"-16	.26"	1"	1"	.94"	3/4"	.441"
207ACBH-6	3/8"	1"-18	.62"	1-1/8"	1-1/4"	1.31"	1"	.571"
207ACBH-8	1/2"	1-1/8"-14	.75"	1-1/4"	1-3/8"	1.50"	1-1/8"	.703"
207ACBH-12	3/4"	1-5/16"-12	.65"	1-1/2"	1-1/2"	1.50"	1-5/16"	.906"
207ACBH-16*	1"	1-5/8"-14	1.00"	2"	2"	1.68"	1-5/8"	1.140"

*Lock Washer not Available
