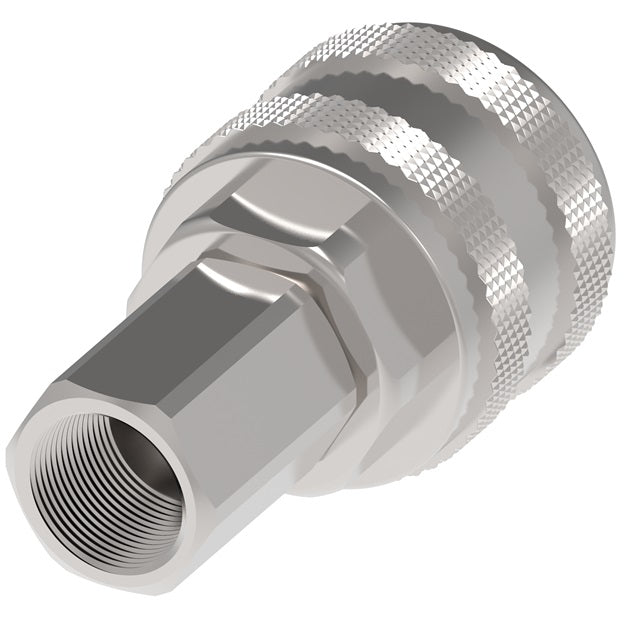

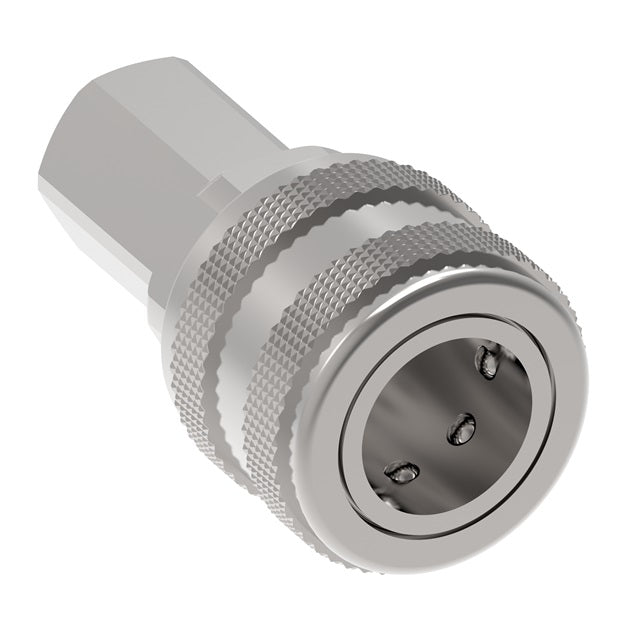

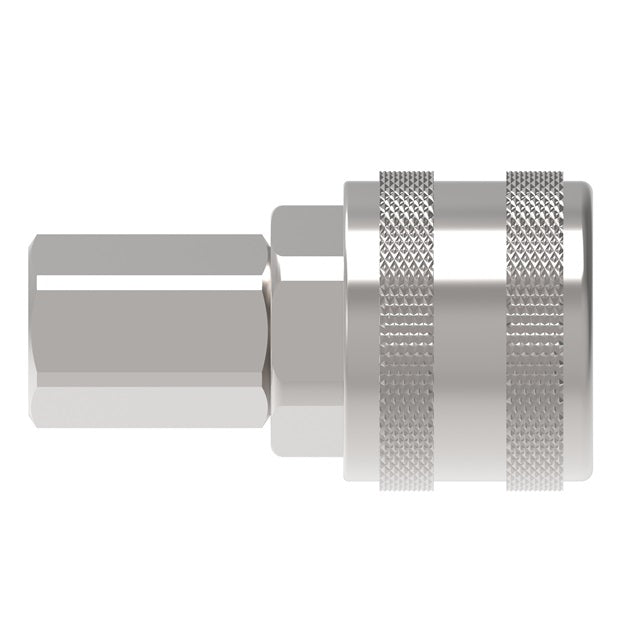

210 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel
210 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel

210 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | Buna-N Seal | Steel

$11.52 - $11.52
$11.52
$11.52 - $11.52
$11.52

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 210 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 210/310 series pneumatic couplings have a pin-type one-way shut off operation.
Specifications for Variant SKU: 210 Danfoss
Brand: Hansen
Series: 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Automatic push-to-connect.
  • Pin-lock design.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-plant/Industrial
  • Pneumatic Tools
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N.
  • Alloy steel locking pins.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
210 1/4" 17 bar 250 psi 68 bar 1,000 psi 538 lpm 19 scfm
310 3/8" 17 bar 250 psi 68 bar 1,000 psi 1,415 lpm 50 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
210 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
210 Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Steel 1 1.87"
(47.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
62210* Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Steel 1 1.87"
(47.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
210B Socket/Female 1/4" 1/4" 1/4-19 Female BSPP Steel 1 1.64"
(41.7mm)		 1.02"
(25.9mm)		 0.75"
(19.1mm)
210 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
2609 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 1.55"
(39.4mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
2609B Plug/Male 1/4" 1/4" 1/4-19 Female BSPP Steel 2 1.52"
(38.6mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
20AP37F Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 2 1.61"
(40.9mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)

* Same as Model 210 but with brass valve.
