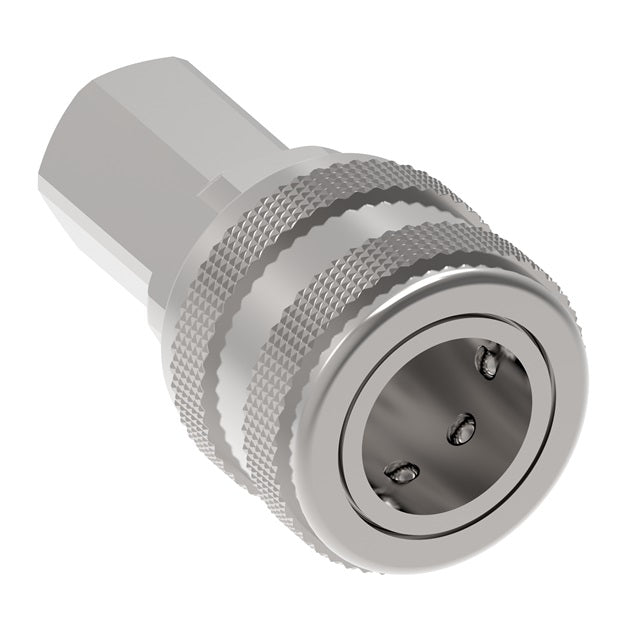

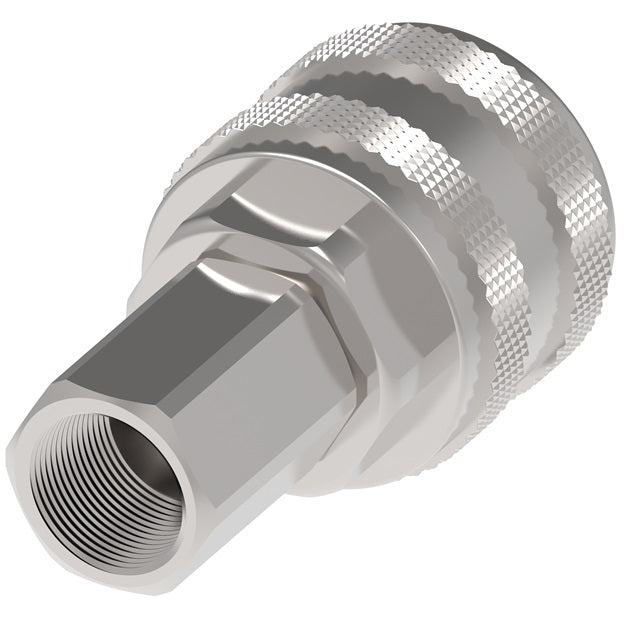

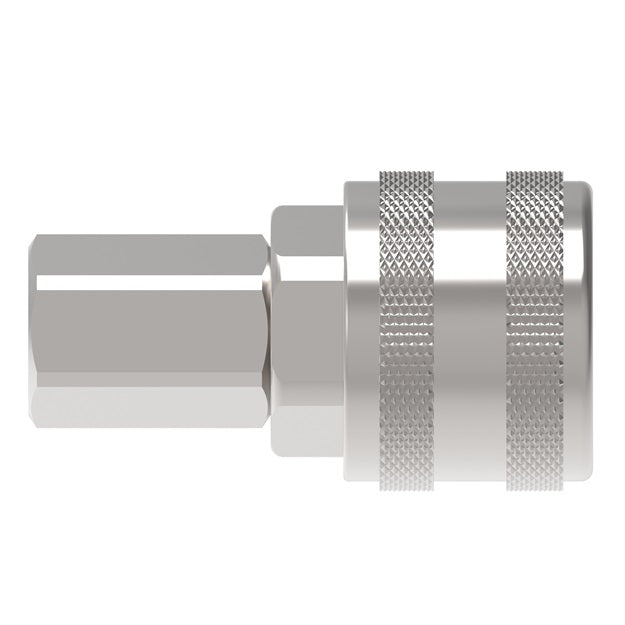

210B Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female BSPP x 1/4" Body Size | Socket | Buna-N Seal | Steel
210B Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female BSPP x 1/4" Body Size | Socket | Buna-N Seal | Steel
210B Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female BSPP x 1/4" Body Size | Socket | Buna-N Seal | Steel
210B Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female BSPP x 1/4" Body Size | Socket | Buna-N Seal | Steel

210B Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 210 Series | 1/4" Female BSPP x 1/4" Body Size | Socket | Buna-N Seal | Steel

$12.56 - $12.56
$12.56
$12.56 - $12.56
$12.56

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 210 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 210/310 series pneumatic couplings have a pin-type one-way shut off operation.
Specifications for Variant SKU: 210B Danfoss
Brand: Hansen
Series: 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Automatic push-to-connect.
  • Pin-lock design.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-plant/Industrial
  • Pneumatic Tools
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N.
  • Alloy steel locking pins.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
210 1/4" 17 bar 250 psi 68 bar 1,000 psi 538 lpm 19 scfm
310 3/8" 17 bar 250 psi 68 bar 1,000 psi 1,415 lpm 50 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
210 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
210 Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Steel 1 1.87"
(47.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
62210* Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Steel 1 1.87"
(47.5mm)		 1.02"
(25.9mm)		 0.69"
(17.5mm)
210B Socket/Female 1/4" 1/4" 1/4-19 Female BSPP Steel 1 1.64"
(41.7mm)		 1.02"
(25.9mm)		 0.75"
(19.1mm)
210 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
2609 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 1.55"
(39.4mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
2609B Plug/Male 1/4" 1/4" 1/4-19 Female BSPP Steel 2 1.52"
(38.6mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
20AP37F Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 2 1.61"
(40.9mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)

* Same as Model 210 but with brass valve.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
