210104-12S Aeroquip by Danfoss | Code Code 62 Lock Washer (1 Washer) | for 2" Flange Size

210104-12S Aeroquip by Danfoss | Code Code 62 Lock Washer (1 Washer) | for 2" Flange Size

$0.58 - $0.58
$0.58
$0.58 - $0.58
$0.58

Aeroquip® by Danfoss
Lock Washer for SAE Code 62 Split Flange Kit (SAE J518)

Important: 4 Lock Washers are required for a complete assembly.
Flange lock washers are not sold as a pack of 4. If you require 4 lock washers, set the quantity below, to 4.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 210104-12S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)

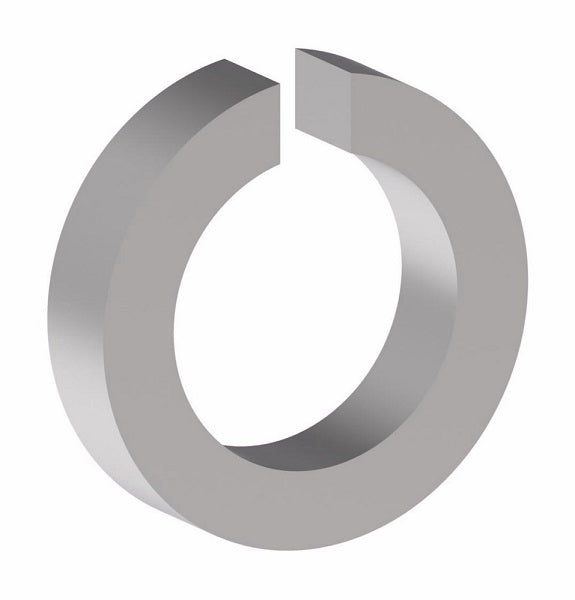

Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
210104-6S 3/4" 2.00" 0.94" 0.42" 300-400
210104-7S 1" 2.25" 1.10" 0.50" 500-600
210104-8S 1-1/4" 2.62" 1.24" 0.60" 750-900
210104-10S 1-1/2" 3.12" 1.44" 0.66" 1400-1600
210104-12S 2" 3.81" 1.76" 0.78" 2400-2600
