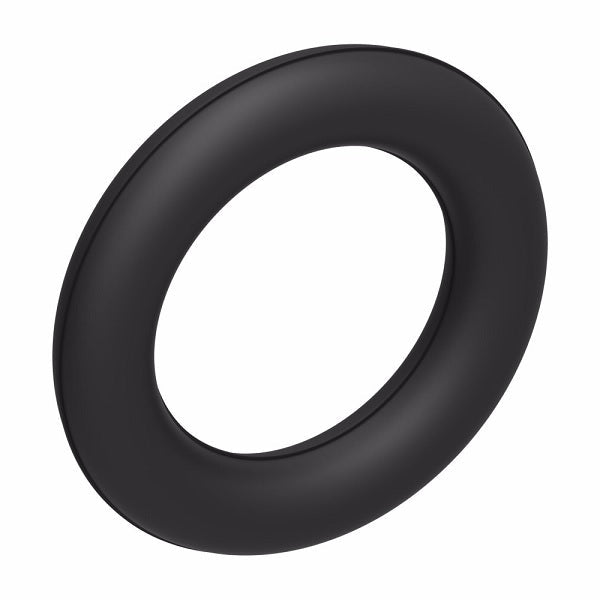

22046-228 Aeroquip by Danfoss | -32 Viton O-Ring for SAE J518 Split Flange | 2" Flange Size

Name: 22046-228 Aeroquip by Danfoss | -32 Viton O-Ring for SAE J518 Split Flange | 2" Flange Size
Brand: Danfoss/Eaton
SKU: 22046-228 Danfoss
Price: 7.14 USD
Availability: InStock

$7.14 - $7.14

$7.14

$7.14 - $7.14

$7.14

Aeroquip® by Danfoss
O-Ring for SAE J518 Split Flanges

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 22046-228 Danfoss
Shape (Orientation):	No Orientation
Seal Material(s):	Viton/FKM

Technical Info:
Crimp Fitting Socket Data.PDF

O-Ring Base Number	Material	Operating Temperature Range
FF9016-	EPDM 80 Durometer	-65°F to +300°F (-55°C to +150°C)
FF9446-	Buna-N 90 Durometer	-40°F to +250°F (-40°C to +121°C)
22046-	Viton 90 Durometer	-15°F to +400°F (-25°C to +205°C


EPDM Part Number	Buna-N Part Number	Viton* Part Number	Flange Dash Size	Nominal Flange Size	A	E
-	FF9446-210	22046-210	-08	1/2"	0.734"	0.139"
FF9016-214	FF9446-214	22046-214	-12	3/4"	0.984"	0.139"
FF9016-219	FF9446-219	22046-219	-16	1"	1.296"	0.139"
FF9016-222	FF9446-222	22046-222	-20	1-1/4"	1.484"	0.139"
FF9016-225	FF9446-225	22046-225	-24	1-1/2"	1.859"	0.139"
FF9016-228	-	22046-228	-32	2"	2.234"	0.139"
-	FF9446-232	22046-232	-40	2-1/2"	2.734"	0.139"
-	FF9446-237	-	-48	3"	3.359"	0.139"

* Viton is a trademark of The Chemours Company FC, LLC

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
