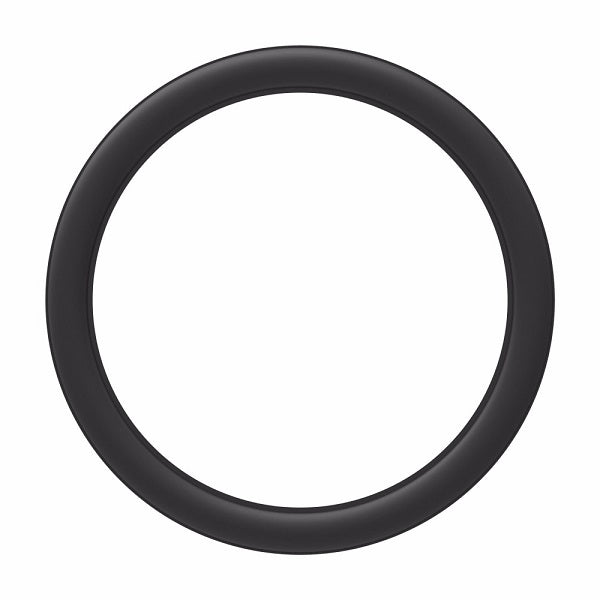

FF9016-214 Aeroquip by Danfoss | -12 EPDM O-Ring for SAE J518 Split Flange | 3/4" Flange Size
FF9016-214 Aeroquip by Danfoss | -12 EPDM O-Ring for SAE J518 Split Flange | 3/4" Flange Size
FF9016-214 Aeroquip by Danfoss | -12 EPDM O-Ring for SAE J518 Split Flange | 3/4" Flange Size

FF9016-214 Aeroquip by Danfoss | -12 EPDM O-Ring for SAE J518 Split Flange | 3/4" Flange Size

$1.40 - $1.40
$1.40
$1.40 - $1.40
$1.40

Aeroquip® by Danfoss
O-Ring for SAE J518 Split Flanges

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9016-214 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): EPDM
Technical Info:
O-Ring Base Number Material Operating Temperature Range
FF9016- EPDM 80 Durometer -65°F to +300°F (-55°C to +150°C)
FF9446- Buna-N 90 Durometer -40°F to +250°F (-40°C to +121°C)
22046- Viton 90 Durometer -15°F to +400°F (-25°C to +205°C
EPDM
Part Number 		Buna-N
Part Number 		Viton*
Part Number 		Flange
Dash Size		 Nominal
Flange Size		 A E
- FF9446-210 22046-210 -08 1/2" 0.734" 0.139"
FF9016-214 FF9446-214 22046-214 -12 3/4" 0.984" 0.139"
FF9016-219 FF9446-219 22046-219 -16 1" 1.296" 0.139"
FF9016-222 FF9446-222 22046-222 -20 1-1/4" 1.484" 0.139"
FF9016-225 FF9446-225 22046-225 -24 1-1/2" 1.859" 0.139"
FF9016-228 - 22046-228 -32 2" 2.234" 0.139"
- FF9446-232 22046-232 -40 2-1/2" 2.734" 0.139"
- FF9446-237 - -48 3" 3.359" 0.139"

* Viton is a trademark of The Chemours Company FC, LLC
