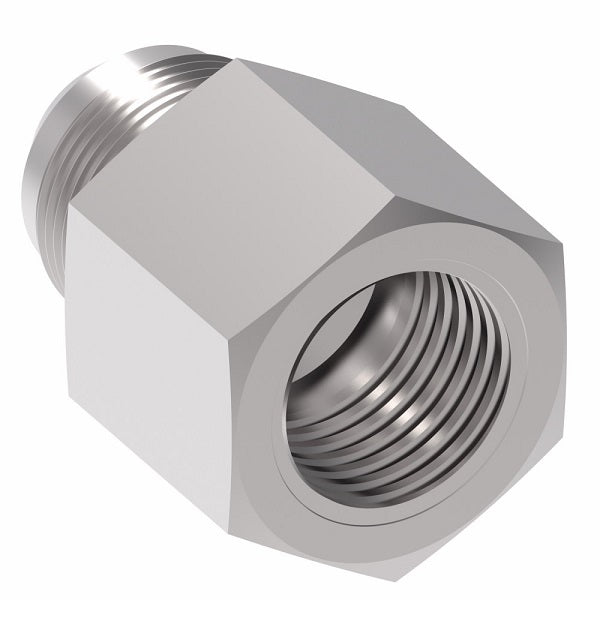

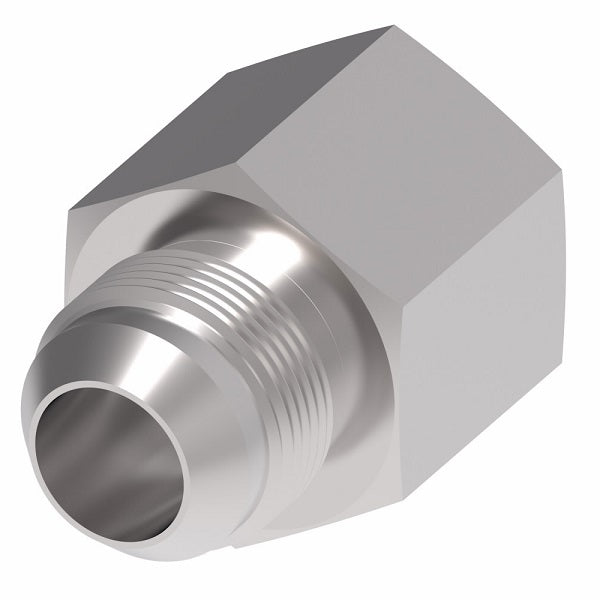

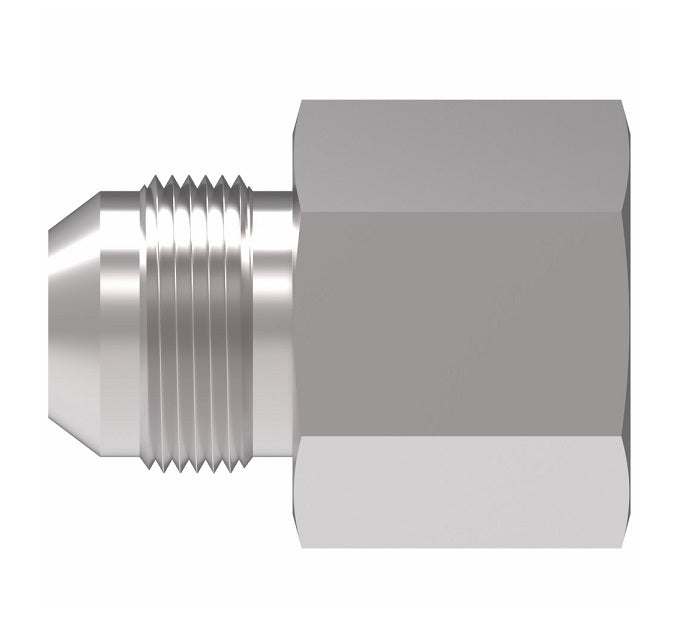

2215-4-6S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -04 Female 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2215-4-6S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -04 Female 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2215-4-6S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -04 Female 37° JIC Flare x -06 Male 37° JIC Flare | Steel
2215-4-6S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -04 Female 37° JIC Flare x -06 Male 37° JIC Flare | Steel

2215-4-6S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -04 Female 37° JIC Flare x -06 Male 37° JIC Flare | Steel

$19.14 - $19.14
$19.14
$19.14 - $19.14
$19.14

Aeroquip® by Danfoss
Female 37° JIC Flare/ Male 37° JIC Flare Adapter
Female 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2215-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 3/8in Male JIC
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A
2215-4-6S 0.38" 9/16-18 7/16-20 1.25"
2215-6-5S 0.31" 9/16-18 1/2-20 1.18"
2215-8-10S 0.63" 3/4-16 7/8-14 1.51"
2215-10-4S 0.25" 7/8-14 7/16-20 1.40"
2215-10-6S 0.38" 7/8-14 9/16-18 1.41"
2215-10-8S 0.50" 7/8-14 3/4-16 1.53"
2215-10-12S 0.75" 7/8-14 1-1/16-12 1.74"
2215-12-10S 0.63" 1-1/16-12 7/8-14 1.73"
2215-12-16S 1.00" 1-1/16-12 1-5/16-12 2.00"
2215-14-8S 0.50" 1-3/16-12 3/4-16 1.69"
2215-16-8S 0.50" 1-5/16-12 3/4-16 1.67"
2215-16-10S 0.63" 1-5/16-12 7/8-14 1.78"
2215-16-20S 1.25" 1-5/16-12 1-5/8-12 2.30"
2215-20-16S 1.00" 1-5/8-12 1-5/16-12 1.98"
2215-24-16S 1.00" 1-7/8-12 1-5/16-12 2.31"
2215-24-20S 1.25" 1-7/8-12 1-5/8-12 2.30"
2215-24-32S 2.00" 1-7/8-12 2-1/2-12 2.68"
2215-32-24S 1.50" 2-1/2-12 1-7/8-12 2.52"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
