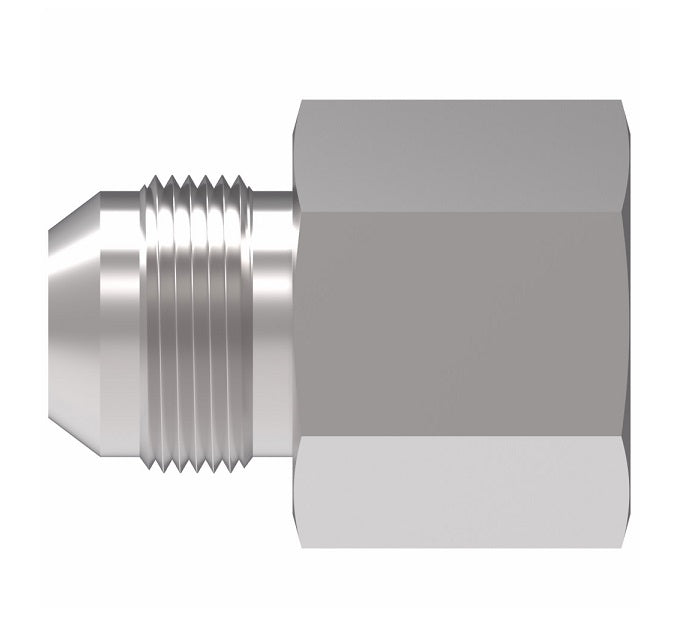

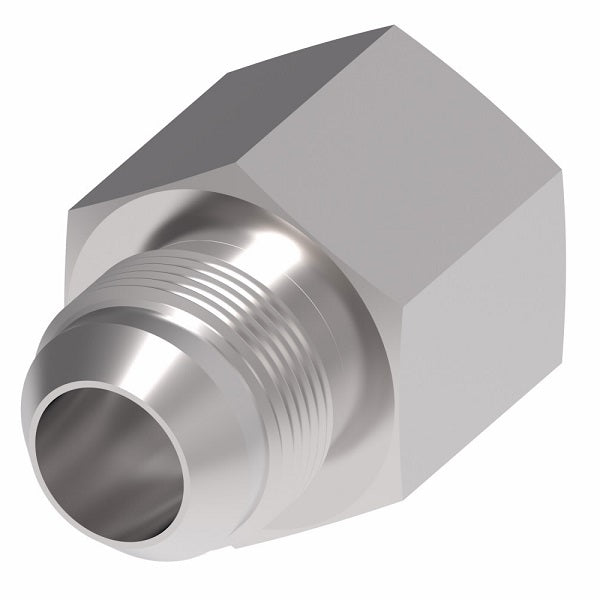

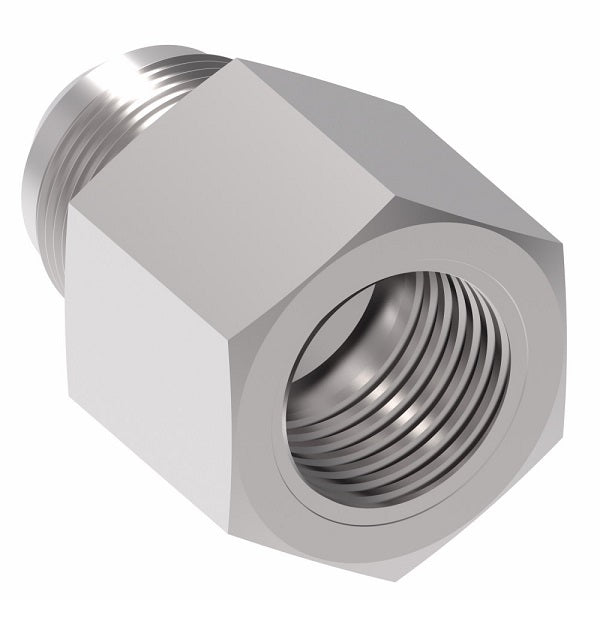

2215-8-10S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -08 Female 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2215-8-10S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -08 Female 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2215-8-10S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -08 Female 37° JIC Flare x -10 Male 37° JIC Flare | Steel
2215-8-10S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -08 Female 37° JIC Flare x -10 Male 37° JIC Flare | Steel

2215-8-10S Aeroquip by Danfoss | Female 37° JIC Flare/ Male 37° JIC Flare Adapter | -08 Female 37° JIC Flare x -10 Male 37° JIC Flare | Steel

$17.24 - $17.24
$17.24
$17.24 - $17.24
$17.24

Aeroquip® by Danfoss
Female 37° JIC Flare/ Male 37° JIC Flare Adapter
Female 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2215-8-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 5/8in Male JIC
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A
2215-4-6S 0.38" 9/16-18 7/16-20 1.25"
2215-6-5S 0.31" 9/16-18 1/2-20 1.18"
2215-8-10S 0.63" 3/4-16 7/8-14 1.51"
2215-10-4S 0.25" 7/8-14 7/16-20 1.40"
2215-10-6S 0.38" 7/8-14 9/16-18 1.41"
2215-10-8S 0.50" 7/8-14 3/4-16 1.53"
2215-10-12S 0.75" 7/8-14 1-1/16-12 1.74"
2215-12-10S 0.63" 1-1/16-12 7/8-14 1.73"
2215-12-16S 1.00" 1-1/16-12 1-5/16-12 2.00"
2215-14-8S 0.50" 1-3/16-12 3/4-16 1.69"
2215-16-8S 0.50" 1-5/16-12 3/4-16 1.67"
2215-16-10S 0.63" 1-5/16-12 7/8-14 1.78"
2215-16-20S 1.25" 1-5/16-12 1-5/8-12 2.30"
2215-20-16S 1.00" 1-5/8-12 1-5/16-12 1.98"
2215-24-16S 1.00" 1-7/8-12 1-5/16-12 2.31"
2215-24-20S 1.25" 1-7/8-12 1-5/8-12 2.30"
2215-24-32S 2.00" 1-7/8-12 2-1/2-12 2.68"
2215-32-24S 1.50" 2-1/2-12 1-7/8-12 2.52"
