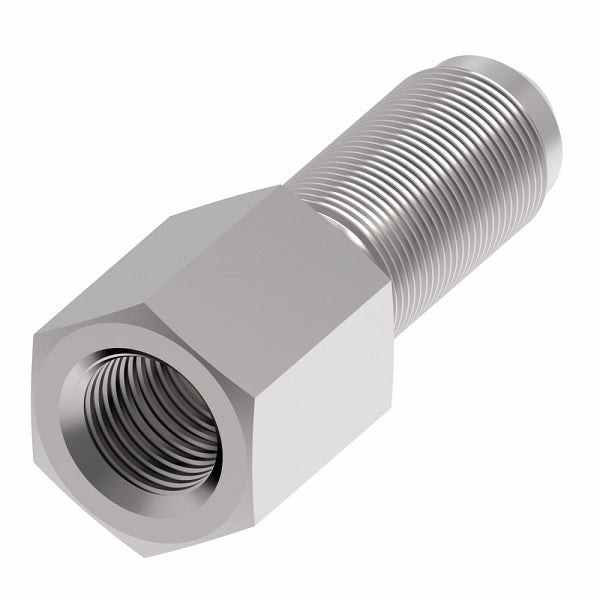

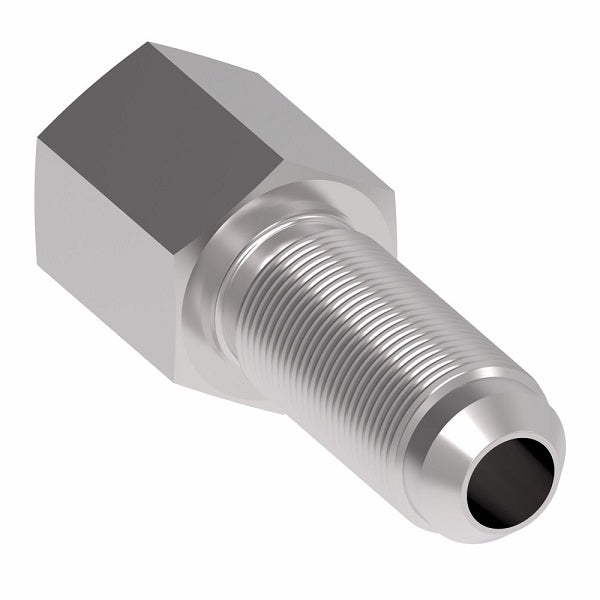

2239-1-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter (without Nut) | -08 Female NPTF x -10 Male JIC | Steel
2239-1-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter (without Nut) | -08 Female NPTF x -10 Male JIC | Steel
2239-1-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter (without Nut) | -08 Female NPTF x -10 Male JIC | Steel
2239-1-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter (without Nut) | -08 Female NPTF x -10 Male JIC | Steel

2239-1-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter (without Nut) | -08 Female NPTF x -10 Male JIC | Steel

$17.10 - $17.10
$17.10
$17.10 - $17.10
$17.10

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Bulkhead Adapter
Female NPTF x Male JIC
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2239-1-8-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070603
Part Number
Steel 		Part Number
Steel
without Nut		 Tube O.D. Thread P Thread T A
2239-2-4S 2239-1-2-4S 0.25" 1/8-27 7/16-20 2.08"
2239-4-6S 2239-1-4-6S - - - -
2239-6-8S 2239-1-6-8S 0.50" 3/8-18 3/4-16 2.48"
2239-8-10S 2239-1-8-10S 0.63" 1/2-14 7/8-14 2.84"
2239-12-12S 2239-1-12-12S 0.75" 3/4-14 1-1/16-12 3.05"
2239-16-16S 2239-1-16-16S 1.00" 1-11-1/2 1-5/16-12 3.25"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
