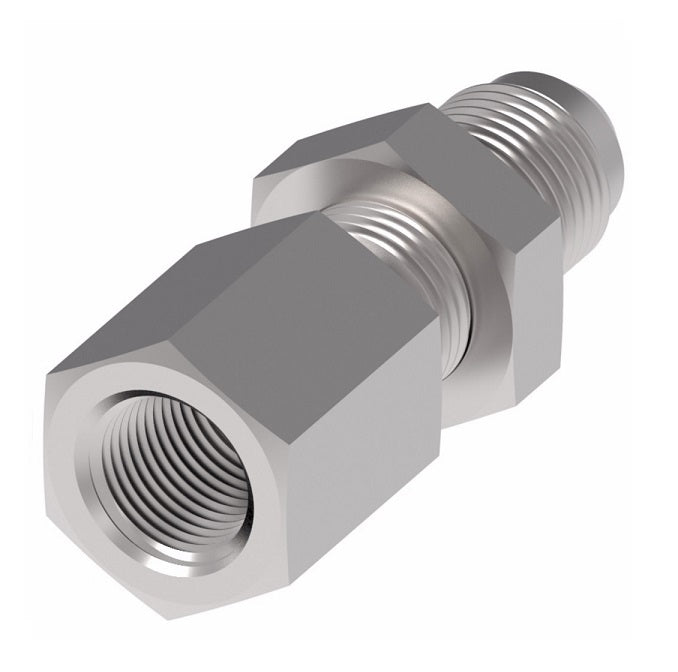

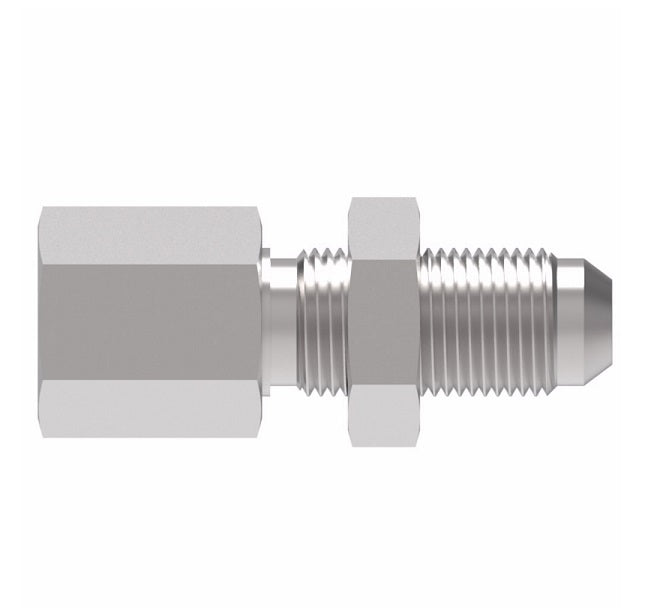

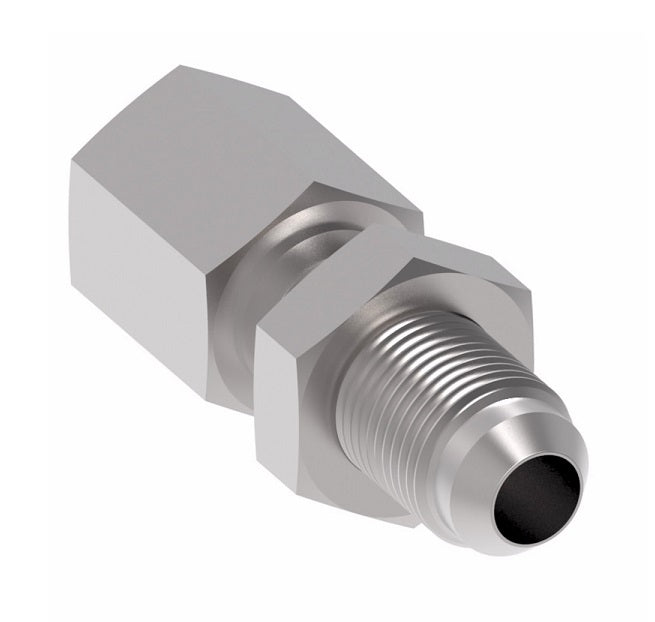

2239-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter | -08 Female NPTF x -10 Male JIC | Steel
2239-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter | -08 Female NPTF x -10 Male JIC | Steel
2239-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter | -08 Female NPTF x -10 Male JIC | Steel
2239-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter | -08 Female NPTF x -10 Male JIC | Steel

2239-8-10S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Bulkhead Adapter | -08 Female NPTF x -10 Male JIC | Steel

$35.31 - $35.31
$35.31
$35.31 - $35.31
$35.31

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Bulkhead Adapter
Female NPTF x Male JIC
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2239-8-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070603
Part Number
Steel 		Part Number
Steel
without Nut		 Tube O.D. Thread P Thread T A
2239-2-4S 2239-1-2-4S 0.25" 1/8-27 7/16-20 2.08"
2239-4-6S 2239-1-4-6S - - - -
2239-6-8S 2239-1-6-8S 0.50" 3/8-18 3/4-16 2.48"
2239-8-10S 2239-1-8-10S 0.63" 1/2-14 7/8-14 2.84"
2239-12-12S 2239-1-12-12S 0.75" 3/4-14 1-1/16-12 3.05"
2239-16-16S 2239-1-16-16S 1.00" 1-11-1/2 1-5/16-12 3.25"
