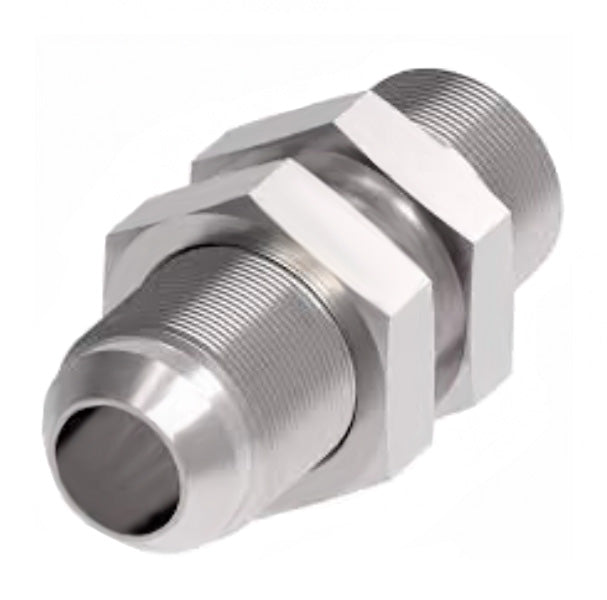

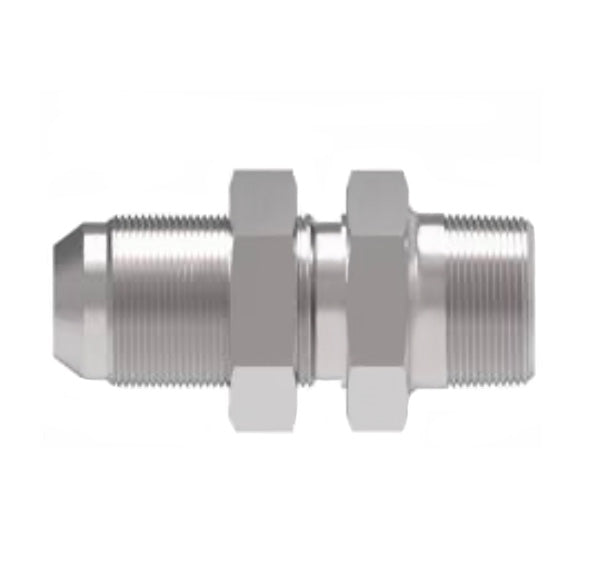

2240-12-12S Aeroquip by Danfoss | External Pipe/37° Flare Bulkhead Adapter | -12 Male NPTF x -12 Male JIC | Steel

Name: 2240-12-12S Aeroquip by Danfoss | External Pipe/37° Flare Bulkhead Adapter | -12 Male NPTF x -12 Male JIC | Steel
Brand: Danfoss/Eaton
SKU: 2240-12-12S Danfoss
Price: 14.26 USD
Availability: InStock

$14.26 - $14.26

$14.26

$14.26 - $14.26

$14.26

Aeroquip® by Danfoss
External Pipe/37° Flare Bulkhead Adapter
Male NPTF x Male SAE 37° Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2240-12-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/4in Male JIC
Material(s):	Zink-Plated Steel


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Threads P	Threads T	A
2240-2-4S	-	0.25"	1/8-27	7/16-20	1.84"
2240-4-4S	-	0.25"	1/4-18	7/16-20	2.03"
2040-4-6S	-	0.38"	1/4-18	9/16-18	2.12"
2240-6-8S	259-2240-6-8	0.50"	3/8-18	3/4-16	2.36"
2240-8-10S	-	0.63"	1/2-14	7/8-14	2.71"
2240-12-12S	-	0.75"	3/4-14	1-1/16-12	2.92"
2240-16-16S	-	1.00"	1-11-1/2	1-5/16-12	3.11"
