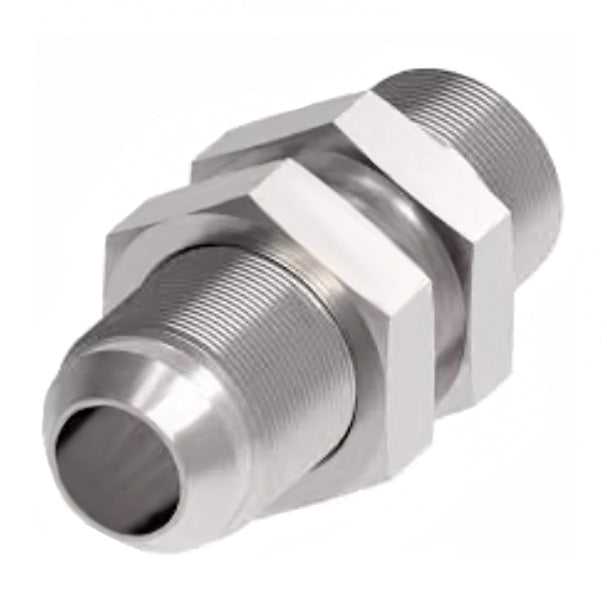

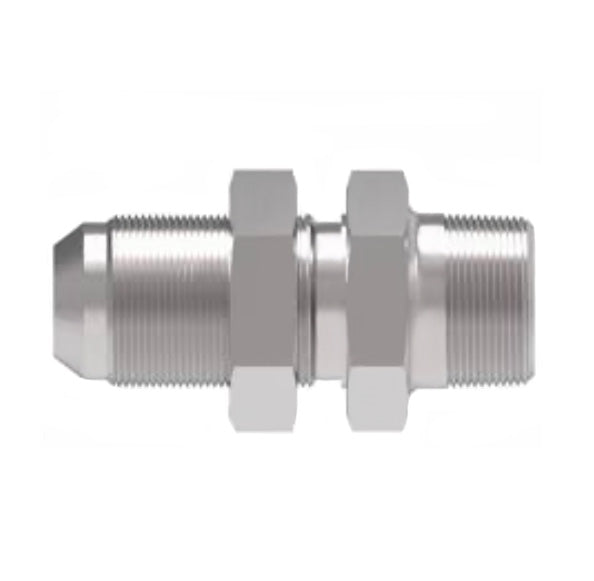

259-2240-6-8 Aeroquip by Danfoss | External Pipe/37° Flare Bulkhead Adapter | -06 Male NPTF x -08 Male JIC | Stainless Steel

Name: 259-2240-6-8 Aeroquip by Danfoss | External Pipe/37° Flare Bulkhead Adapter | -06 Male NPTF x -08 Male JIC | Stainless Steel
Brand: Danfoss/Eaton
SKU: 259-2240-6-8 Danfoss
Price: 58.94 USD
Availability: InStock

$58.94 - $58.94

$58.94

$58.94 - $58.94

$58.94

Aeroquip® by Danfoss
External Pipe/37° Flare Bulkhead Adapter
Male NPTF x Male SAE 37° Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 259-2240-6-8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 1/2in Male JIC
Material(s):	Stainless Steel


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Threads P	Threads T	A
2240-2-4S	-	0.25"	1/8-27	7/16-20	1.84"
2240-4-4S	-	0.25"	1/4-18	7/16-20	2.03"
2040-4-6S	-	0.38"	1/4-18	9/16-18	2.12"
2240-6-8S	259-2240-6-8	0.50"	3/8-18	3/4-16	2.36"
2240-8-10S	-	0.63"	1/2-14	7/8-14	2.71"
2240-12-12S	-	0.75"	3/4-14	1-1/16-12	2.92"
2240-16-16S	-	1.00"	1-11-1/2	1-5/16-12	3.11"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
