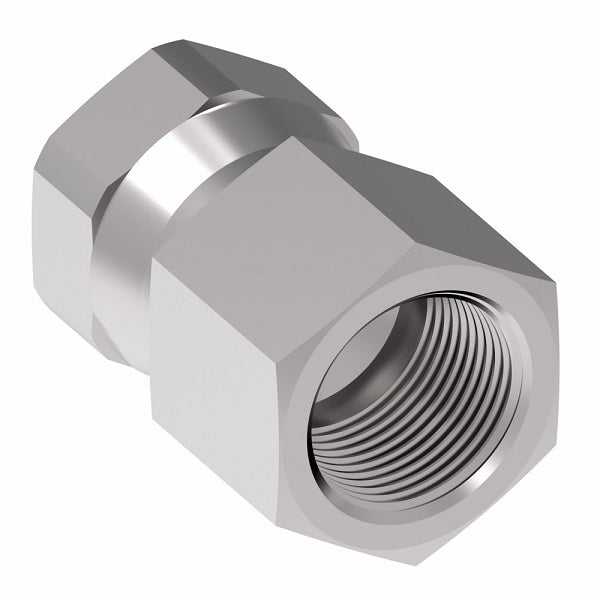

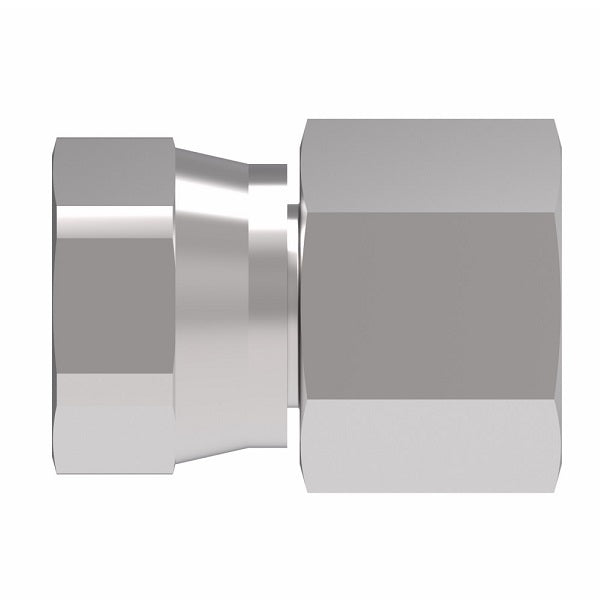

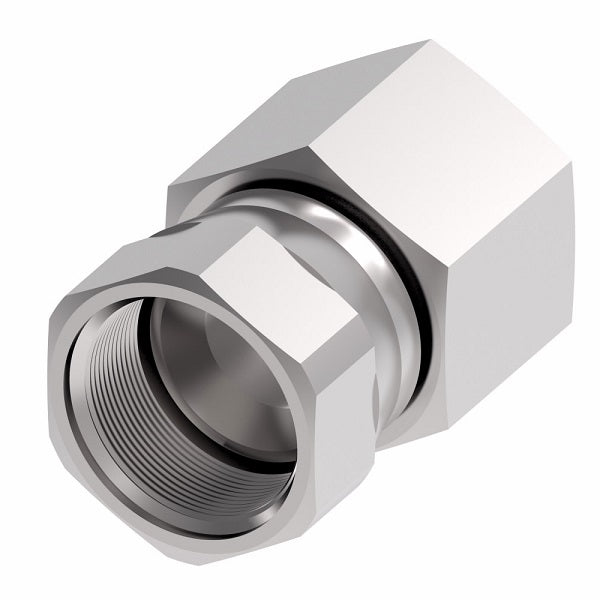

2242-6-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -06 Female NPTF x -08 Female JIC Swivel | Steel

2242-6-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -06 Female NPTF x -08 Female JIC Swivel | Steel

Name: 2242-6-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -06 Female NPTF x -08 Female JIC Swivel | Steel
Brand: Danfoss/Eaton
SKU: 2242-6-8S Danfoss
Price: 11.15 USD
Availability: InStock

$11.15 - $11.15

$11.15

$11.15 - $11.15

$11.15

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Swivel Adapter
Female NPTF x Female JIC Swivel
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2242-6-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPTF, 1/2in Female JIC
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 070603


Part Number Steel	Tube O.D.	Thread P	Thread T	A
2242-2-4S	0.25"	1/8-27	7/16-20	0.85"
2242-2-5S	0.31"	1/8-27	1/2-20	0.87"
2242-4-4S	0.25"	1/4-18	7/16-20	1.11"
2242-4-5S	0.31"	1/4-18	1/2-20	1.10"
2242-4-6S	0.38"	1/4-18	9/16-18	1.18"
2242-6-6S	0.38"	3/8-18	9/16-18	1.16"
2242-6-8S	0.50"	3/8-18	3/4-16	1.20"
2242-8-6S	0.38"	1/2-14	9/16-18	1.42"
2242-8-8S	0.50"	1/2-14	3/4-16	1.48"
2242-8-10S	0.63"	1/2-14	7/8-14	1.47"
2242-8-12S	0.75"	1/2-14	1-1/16-12	1.45"
2242-12-12S	0.75"	3/4-14	1-1/16-12	1.49"
2242-12-14S	0.88"	3/4-14	1-3/16-12	1.55"
2242-16-16S	1.00"	1-11-1/2	1-5/16-12	1.85"
2242-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.02"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
