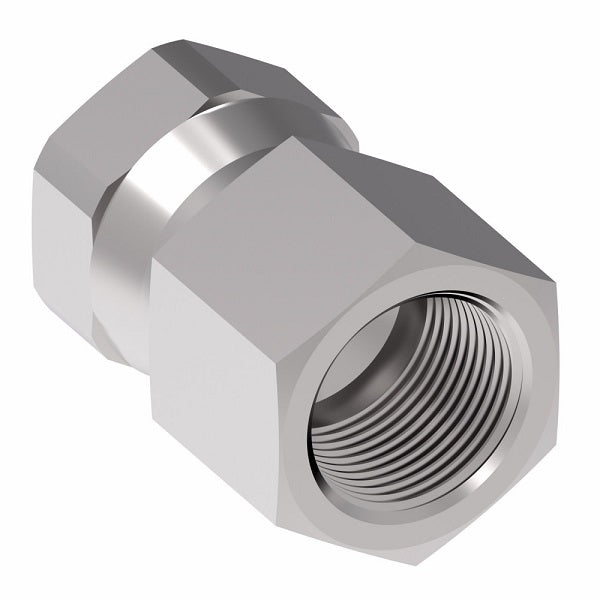

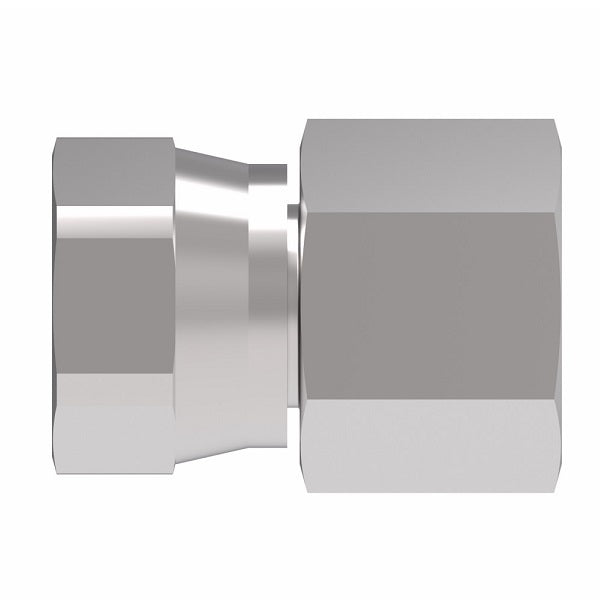

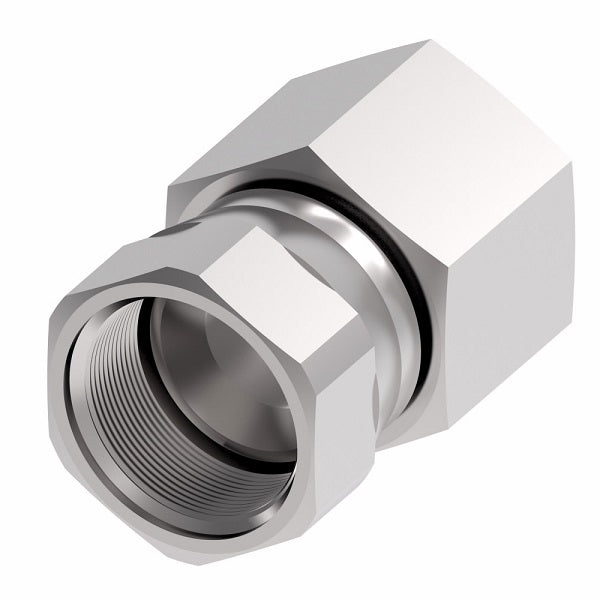

2242-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -08 Female JIC Swivel | Steel

2242-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -08 Female JIC Swivel | Steel

Name: 2242-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -08 Female JIC Swivel | Steel
Brand: Danfoss/Eaton
SKU: 2242-8-8S Danfoss
Price: 6.78 USD
Availability: InStock

$6.78 - $6.78

$6.78

$6.78 - $6.78

$6.78

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Swivel Adapter
Female NPTF x Female JIC Swivel
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2242-8-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPTF, 1/2in Female JIC
Material(s):	Steel
Special Properties:	Swivel

Specifications:
Ref. SAE 070603


Part Number Steel	Tube O.D.	Thread P	Thread T	A
2242-2-4S	0.25"	1/8-27	7/16-20	0.85"
2242-2-5S	0.31"	1/8-27	1/2-20	0.87"
2242-4-4S	0.25"	1/4-18	7/16-20	1.11"
2242-4-5S	0.31"	1/4-18	1/2-20	1.10"
2242-4-6S	0.38"	1/4-18	9/16-18	1.18"
2242-6-6S	0.38"	3/8-18	9/16-18	1.16"
2242-6-8S	0.50"	3/8-18	3/4-16	1.20"
2242-8-6S	0.38"	1/2-14	9/16-18	1.42"
2242-8-8S	0.50"	1/2-14	3/4-16	1.48"
2242-8-10S	0.63"	1/2-14	7/8-14	1.47"
2242-8-12S	0.75"	1/2-14	1-1/16-12	1.45"
2242-12-12S	0.75"	3/4-14	1-1/16-12	1.49"
2242-12-14S	0.88"	3/4-14	1-3/16-12	1.55"
2242-16-16S	1.00"	1-11-1/2	1-5/16-12	1.85"
2242-20-20S	1.25"	1-1/4-11-1/2	1-5/8-12	2.02"
