2246-2-5S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -05 Female SAE O-Ring Boss | Steel

2246-2-5S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -05 Female SAE O-Ring Boss | Steel

Name: 2246-2-5S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -05 Female SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2246-2-5S Danfoss
Price: 13.22 USD
Availability: InStock

$13.22 - $13.22

$13.22

$13.22 - $13.22

$13.22

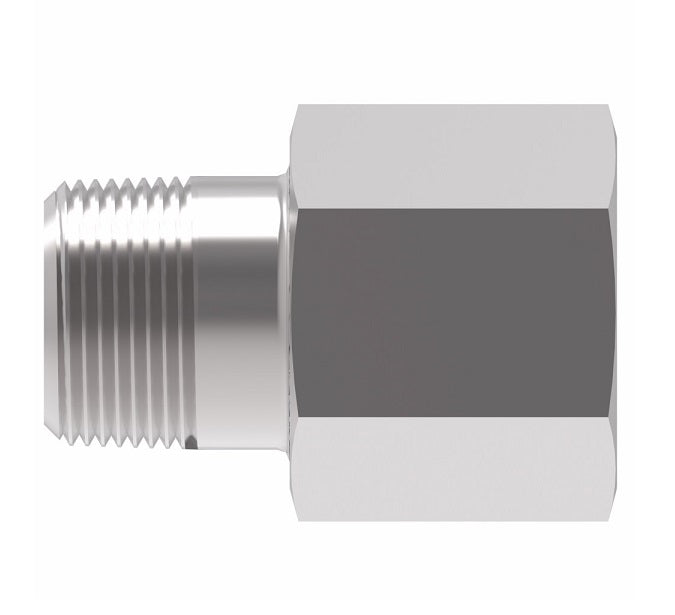

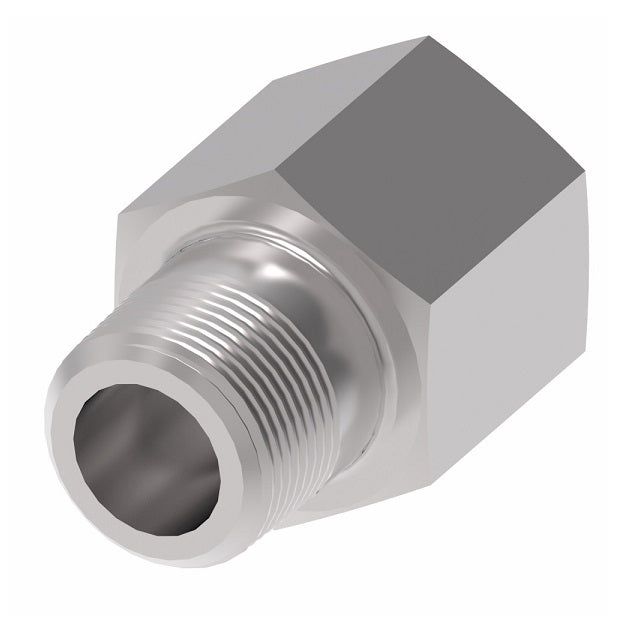

Aeroquip® by Danfoss
External Pipe/Internal SAE O-Ring Boss Adapter
Male NPTF x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2246-2-5S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPTF, 5/16in Female O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Buna-N O-Rings are standard.


Part Number Steel Buna-N O-Ring	Thread P	Thread T	A
2246-2-4S	1/8-27	7/16-20	1.09"
2246-2-5S	1/8-27	1/2-20	1.09"
2246-4-6S	1/4-18	9/16-18	1.36"
2246-6-6S	3/8-18	9/16-18	-
2246-6-8S	3/8-18	3/4-16	1.45"
2246-8-6S	1/2-14	9/16-18	1.60"
2246-8-8S	1/2-14	3/4-16	1.67"
2246-8-10S	1/2-14	7/8-14	1.78"
2246-12-12S	3/4-14	1-1/16-12	1.92"
2246-12-14S	3/4-14	1-3/16-12	1.92"
2246-16-16S	1-11-1/2	1-5/16-12	2.13"
