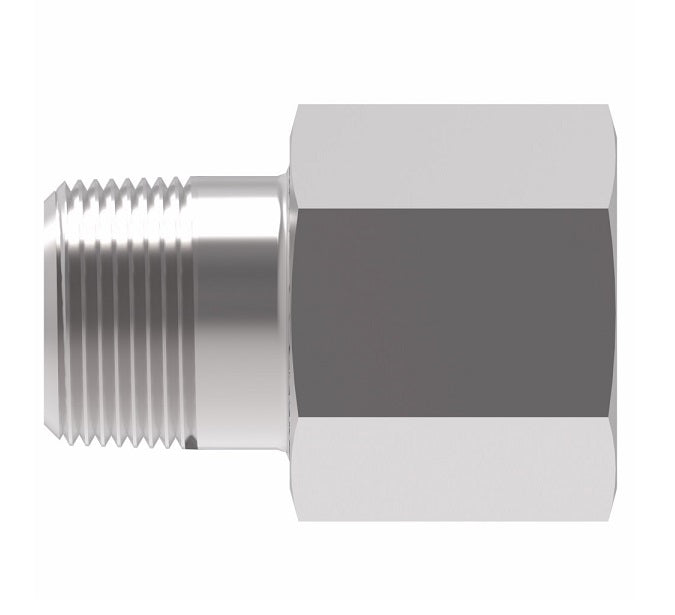

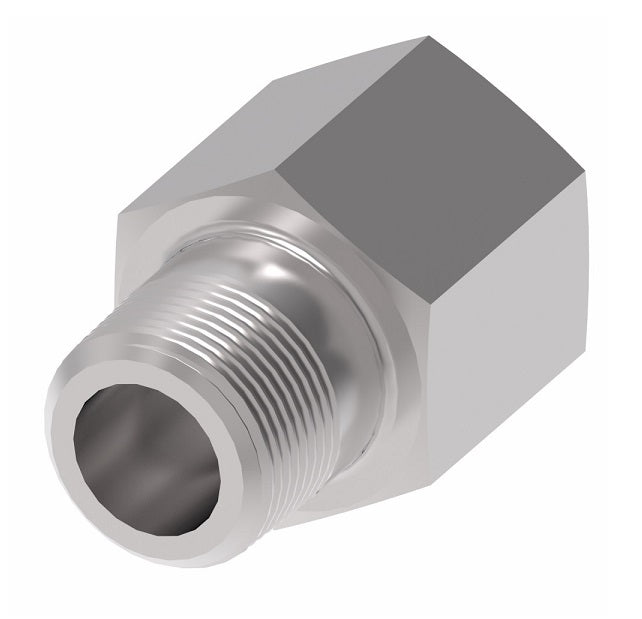

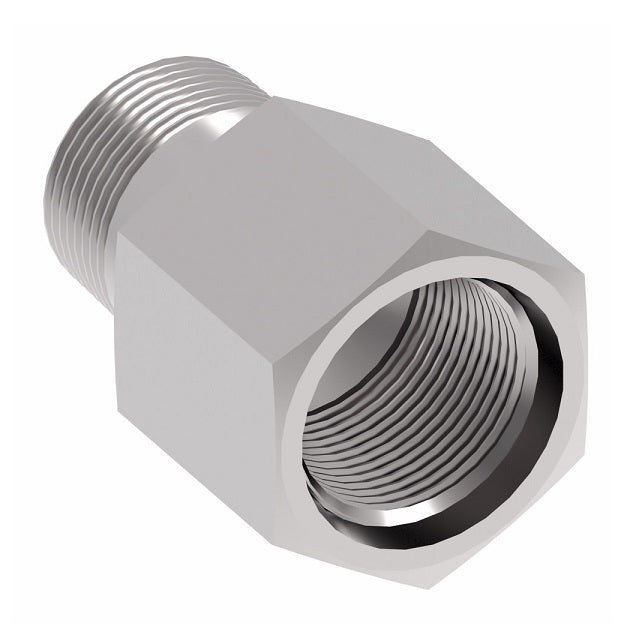

2246-6-6S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -06 Male NPTF x -06 Female SAE O-Ring Boss | Steel

2246-6-6S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -06 Male NPTF x -06 Female SAE O-Ring Boss | Steel

Name: 2246-6-6S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -06 Male NPTF x -06 Female SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 2246-6-6S Danfoss
Price: 19.82 USD
Availability: InStock

$19.82 - $19.82

$19.82

$19.82 - $19.82

$19.82

Aeroquip® by Danfoss
External Pipe/Internal SAE O-Ring Boss Adapter
Male NPTF x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 2246-6-6S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPTF, 3/8in Female O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Buna-N O-Rings are standard.


Part Number Steel Buna-N O-Ring	Thread P	Thread T	A
2246-2-4S	1/8-27	7/16-20	1.09"
2246-2-5S	1/8-27	1/2-20	1.09"
2246-4-6S	1/4-18	9/16-18	1.36"
2246-6-6S	3/8-18	9/16-18	-
2246-6-8S	3/8-18	3/4-16	1.45"
2246-8-6S	1/2-14	9/16-18	1.60"
2246-8-8S	1/2-14	3/4-16	1.67"
2246-8-10S	1/2-14	7/8-14	1.78"
2246-12-12S	3/4-14	1-1/16-12	1.92"
2246-12-14S	3/4-14	1-3/16-12	1.92"
2246-16-16S	1-11-1/2	1-5/16-12	2.13"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
