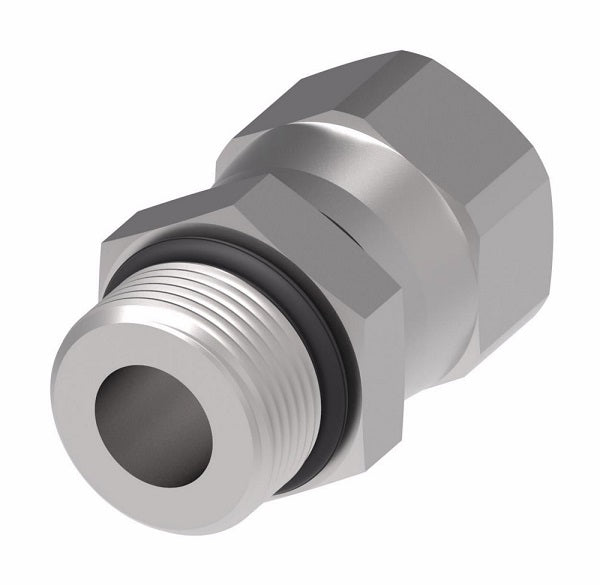

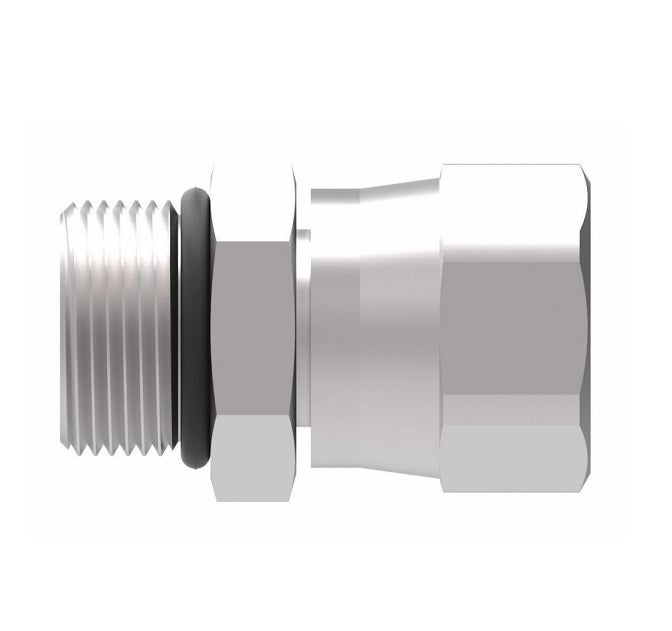

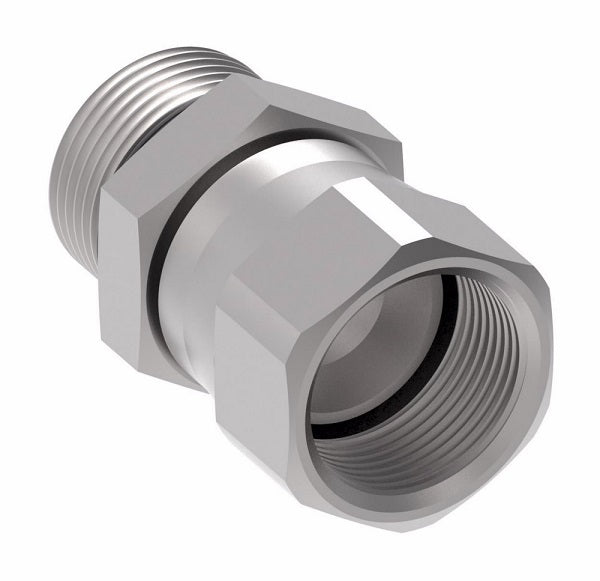

2266-20-20S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -20 Male SAE O-Ring Boss x -20 Female 37° JIC Flare Swivel | Steel

2266-20-20S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -20 Male SAE O-Ring Boss x -20 Female 37° JIC Flare Swivel | Steel

Name: 2266-20-20S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -20 Male SAE O-Ring Boss x -20 Female 37° JIC Flare Swivel | Steel
Brand: Danfoss/Eaton
SKU: 2266-20-20S Danfoss
Price: 61.42 USD
Availability: InStock

$61.42 - $61.42

$61.42

$61.42 - $61.42

$61.42

Aeroquip® by Danfoss
SAE ORB/37° Flare Long Adapter
Male SAE O-Ring Boss x Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2266-20-20S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male O-Ring Boss, 1-1/4in Female JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A
2266-4-4S	0.25"	7/16-20	7/16-20	1.28"
2266-6-4S	-	9/16-18	7/16-20	-
2266-6-6S	0.38"	9/16-18	3/4-16	1.40"
2266-6-8S	0.50"	9/16-18	3/4-16	1.63"
2266-8-6S	-	3/4-16	9/16-18	-
2266-8-8S	0.50"	3/4-16	3/4-16	1.55"
2266-10-10S	0.63"	7/8-14	7/8-14	1.72"
2266-12-12S	0.75"	1-1/16-12	1-1/16-12	1.90"
2266-12-16S	-	1-1/16-12	1-5/16-12	-
2266-16-16S	1.00"	1-5/16-12	1-5/16-12	2.11"
2266-20-20S	1.25"	1-5/8-12	1-5/8-12	2.54"
2266-24-24S	-	1-7/8-12	1-7/8-12	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
