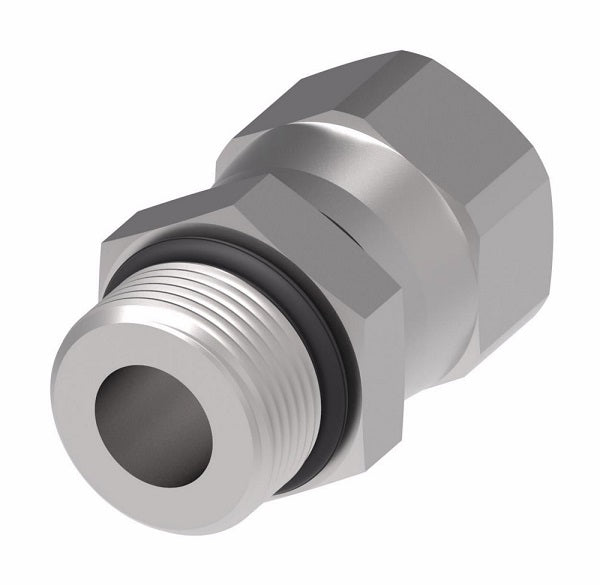

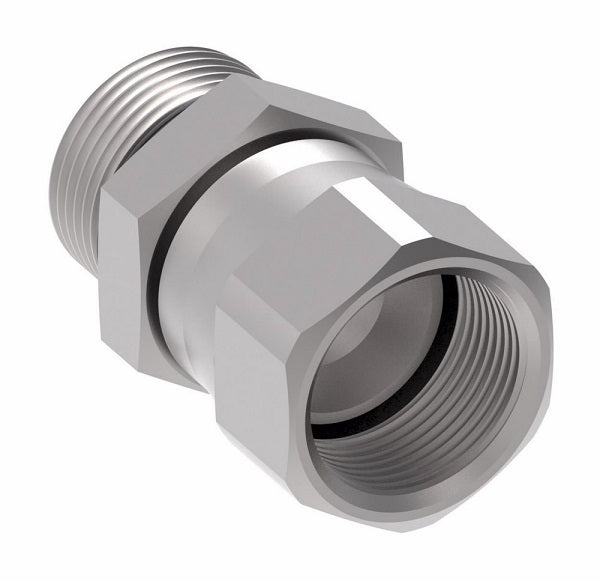

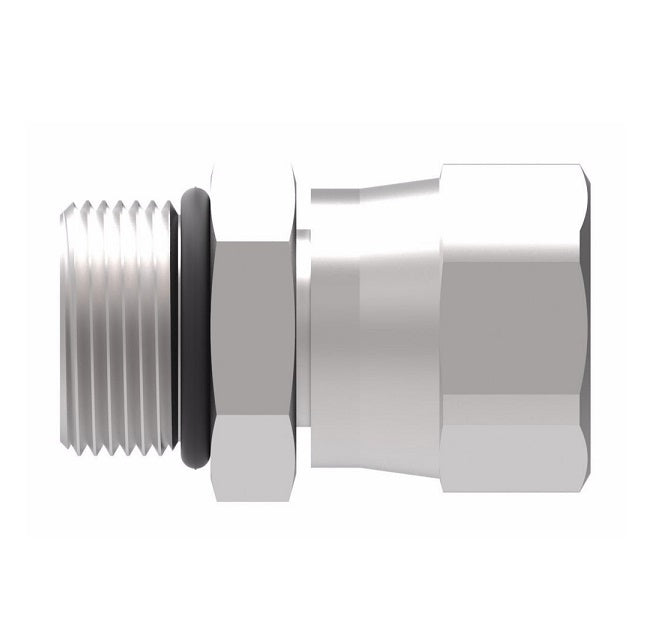

2266-8-8S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -08 Male SAE O-Ring Boss x -08 Female 37° JIC Flare Swivel | Steel

2266-8-8S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -08 Male SAE O-Ring Boss x -08 Female 37° JIC Flare Swivel | Steel

Name: 2266-8-8S Aeroquip by Danfoss | SAE ORB/37° Flare Swivel Adapter | -08 Male SAE O-Ring Boss x -08 Female 37° JIC Flare Swivel | Steel
Brand: Danfoss/Eaton
SKU: 2266-8-8S Danfoss
Price: 7.72 USD
Availability: InStock

$7.72 - $7.72

$7.72

$7.72 - $7.72

$7.72

Aeroquip® by Danfoss
SAE ORB/37° Flare Long Adapter
Male SAE O-Ring Boss x Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2266-8-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male O-Ring Boss, 1/2in Female JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A
2266-4-4S	0.25"	7/16-20	7/16-20	1.28"
2266-6-4S	-	9/16-18	7/16-20	-
2266-6-6S	0.38"	9/16-18	3/4-16	1.40"
2266-6-8S	0.50"	9/16-18	3/4-16	1.63"
2266-8-6S	-	3/4-16	9/16-18	-
2266-8-8S	0.50"	3/4-16	3/4-16	1.55"
2266-10-10S	0.63"	7/8-14	7/8-14	1.72"
2266-12-12S	0.75"	1-1/16-12	1-1/16-12	1.90"
2266-12-16S	-	1-1/16-12	1-5/16-12	-
2266-16-16S	1.00"	1-5/16-12	1-5/16-12	2.11"
2266-20-20S	1.25"	1-5/8-12	1-5/8-12	2.54"
2266-24-24S	-	1-7/8-12	1-7/8-12	-
