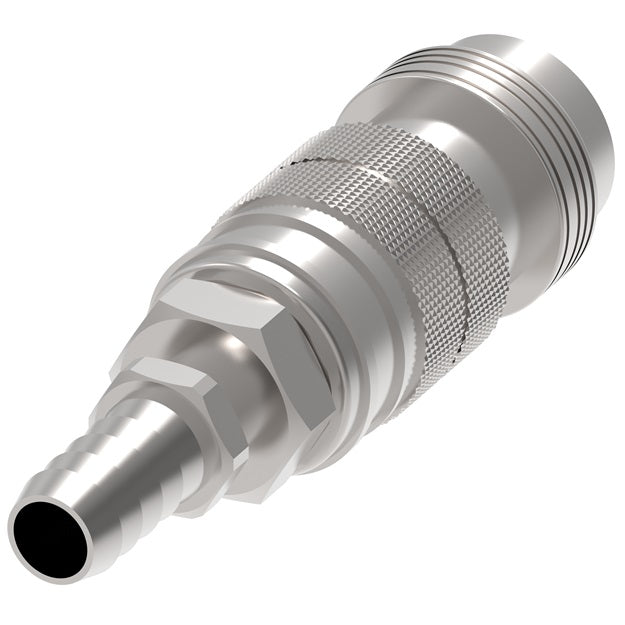

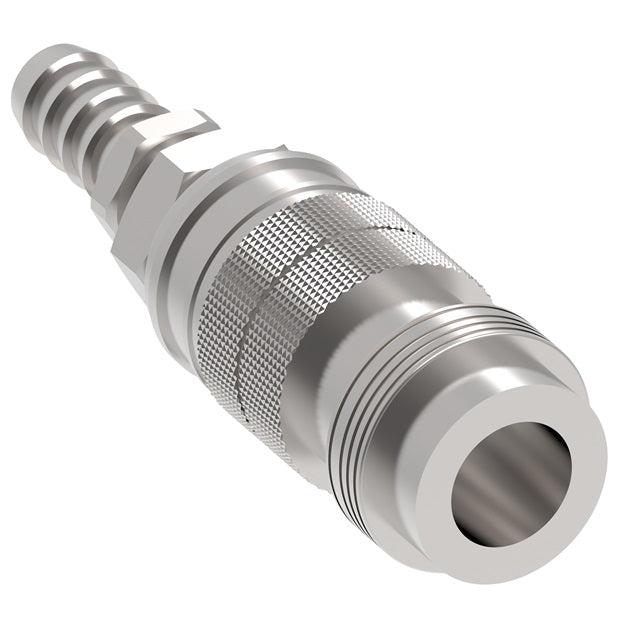

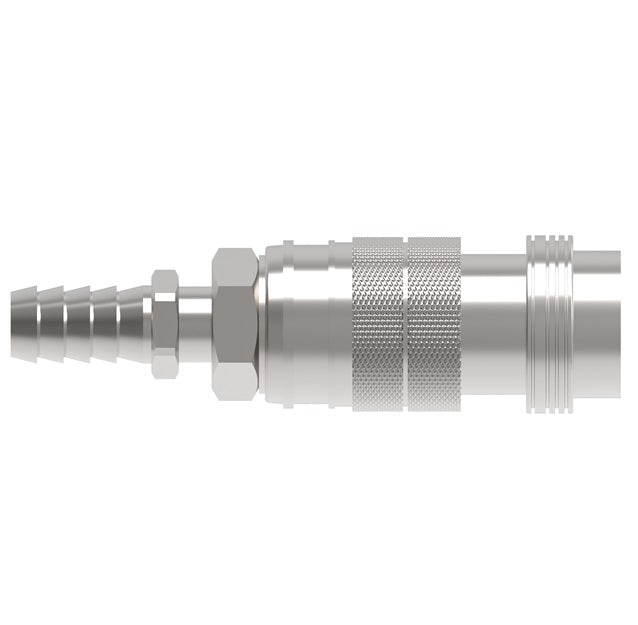

23203024 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/4" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
23203024 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/4" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
23203024 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/4" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
23203024 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/4" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel

23203024 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/4" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel

$173.50 - $173.50
$173.50
$173.50 - $173.50
$173.50

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Full-Bore Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Full-Bore Series is a premium automatic one-way shutoff quick disconnect coupling.
Specifications for Variant SKU: 23203024 Danfoss
Brand: Hansen
Series: Full-Bore Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Two sleeves must be actuated in sequence to bleed off back pressure and release the connector, preventing accidental uncoupling.
  • Pressure relieving feature fully vents downstream air, making connection/disconnection fast and easy, and eliminating hose whip.
  • Unique straight through design eliminates restrictive springs and poppet valves, allowing unimpeded air flow.
  • Two sleeve activation prevents accidental disconnect.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-Plant/Industrial
  • Railyards
  • General Pneumatics
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N
Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3/8" 15 bar 250 psi 60 bar 1,000 psi 1,784 lpm 63 scfm
1/2" 15 bar 250 psi 60 bar 1,000 psi 2,860 lpm 101 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Full-Bore Series | Socket
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
A B
23203024 Socket/Female 3/8" 1/4" Hose Barb 1 4.36"
(110.7mm)		 1.25"
(31.8mm)
23203025 Socket/Female 3/8" 3/8" Hose Barb 1 4.48"
(113.8mm)		 1.25"
(31.8mm)
23204025 Socket/Female 1/2" 1/2" Hose Barb 1 4.80"
(121.9mm)		 1.38"
(35.1mm)
23204026 Socket/Female 1/2" 3/4" Hose Barb 1 4.80"
(121.9mm)		 1.38"
(35.1mm)
Full-Bore Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
404 Plug/Male 3/8" 1/4" Hose Barb 2 2.34"
(59.4mm)		 0.63"
(16.0mm)
406 Plug/Male 3/8" 3/8" Hose Barb 2 2.34"
(59.4mm)		 0.63"
(16.0mm)
408 Plug/Male 3/8" 1/2" Hose Barb 2 2.34"
(59.4mm)		 0.81"
(20.6mm)
59 Plug/Male 1/2" 3/8" Hose Barb 2 2.66"
(67.6mm)		 0.69"
(17.5mm)
60 Plug/Male 1/2" 1/2" Hose Barb 2 2.66"
(67.6mm)		 0.75"
(19.1mm)
61E Plug/Male 1/2" 3/4" Hose Barb 2 3.50"
(88.9mm)		 1.00"
(25.4mm)
