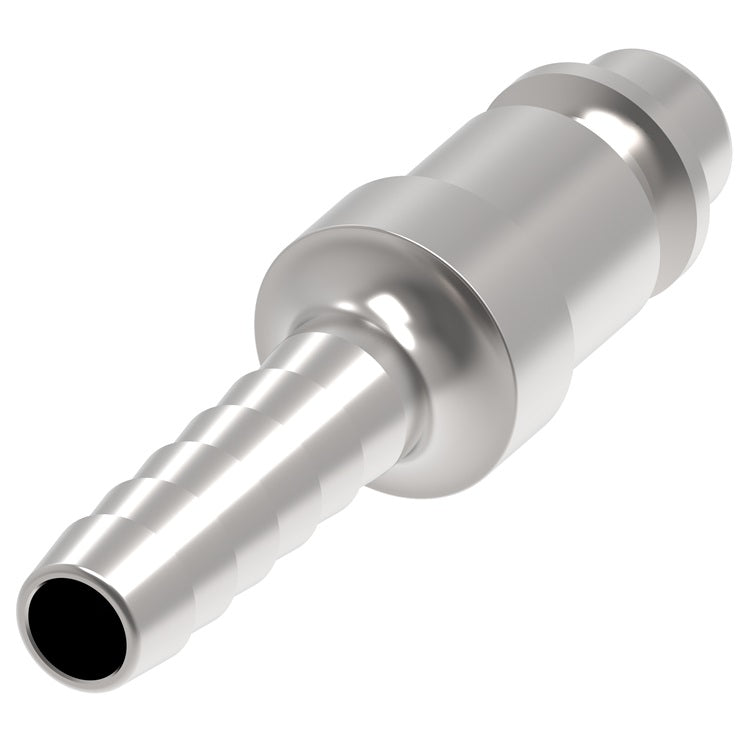

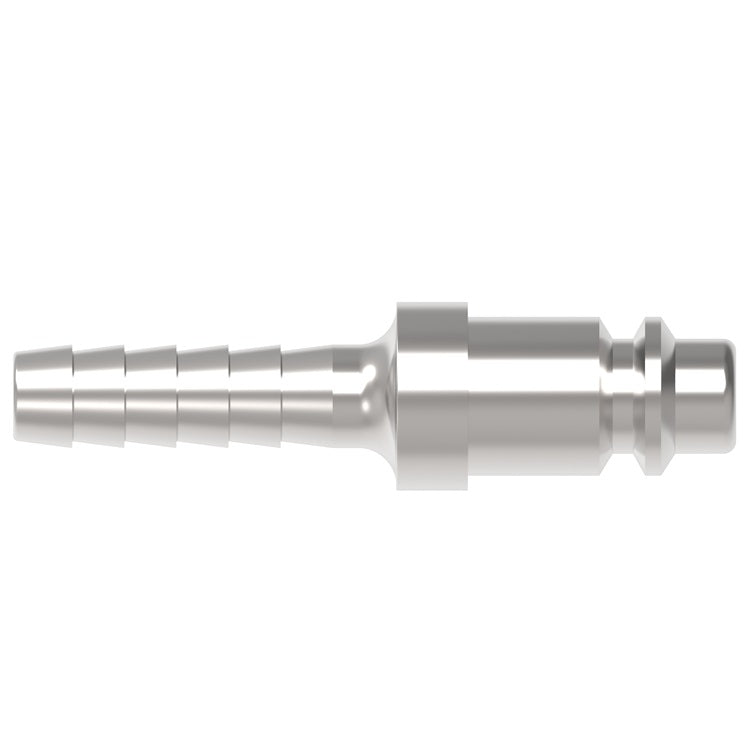

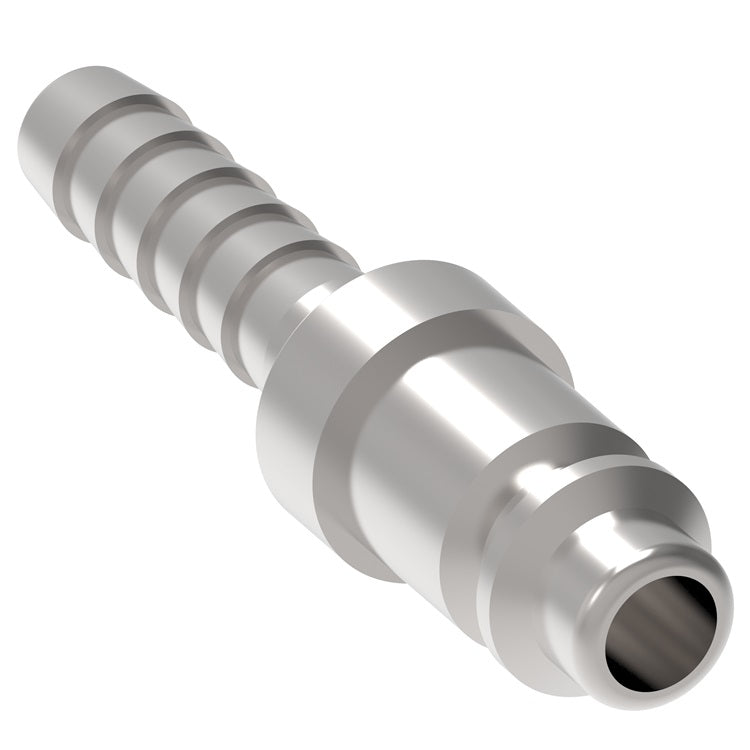

59 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series / 5000 Series | Hose Barb End | 3/8" Hose ID x 1/2" Body Size | Plug | Steel

$15.40 - $15.40

$15.40

$15.40 - $15.40

$15.40

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 500 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 59 Danfoss
Brand:	Hansen
Series:	500 Series / 5000 Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Ball latching mechanism. All sizes accept US Industrial Interchange.
Applications & Markets:	General Pneumatics Construction Industrial Plants
Materials:	Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve Standard seal material: Nitrile (NBR)
Specifications:	1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
500	1/2"	35 bar	500 psi	140 bar	2,000 psi	2,038 lpm	538 gpm

Interchangeability
All Sizes	1/4" & 1/2"	400 Series
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)	Tru-Flate


Socket/Female (Figure 1)				Plug/Male (Figure 2)
500 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
570	Socket/Female	1/2"	3/8"	Hose Stem	Brass	1	3.32" (84.3mm)	1.19" (30.2mm)
580	Socket/Female	1/2"	1/2"	Hose Stem	Brass	1	3.24" (82.3mm)	1.19" (30.2mm)
590	Socket/Female	1/2"	3/4"	Hose Stem	Brass	1	4.09" (103.9mm)	1.19" (30.2mm)
500 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	C	D
585	Plug/Male	1/2"	5/16"	Hose Stem	Steel	2	2.66" (67.6mm)	0.69" (17.5mm)
59	Plug/Male	1/2"	3/8"	Hose Stem	Steel	2	2.66" (67.6mm)	0.69" (17.5mm)
59G**	Plug/Male	1/2"	3/8"	Hose Stem	Brass	2	3.37" (85.6mm)	0.98" (24.9mm)
60	Plug/Male	1/2"	1/2"	Hose Stem	Steel	2	2.66" (67.6mm)	0.75" (19.1mm)
60G**	Plug/Male	1/2"	1/2"	Hose Stem	Brass	2	3.37" (85.6mm)	0.98" (24.9mm)
61E	Plug/Male	1/2"	3/4"	Hose Stem	Steel	2	3.50" (88.9mm)	1.00" (25.4mm)
61G**	Plug/Male	1/2"	3/4"	Hose Stem	Brass	2	4.22" (107.2mm)	1.00" (25.4mm)

** With Bleeder Ball Check - Reduces Hose Whip.
