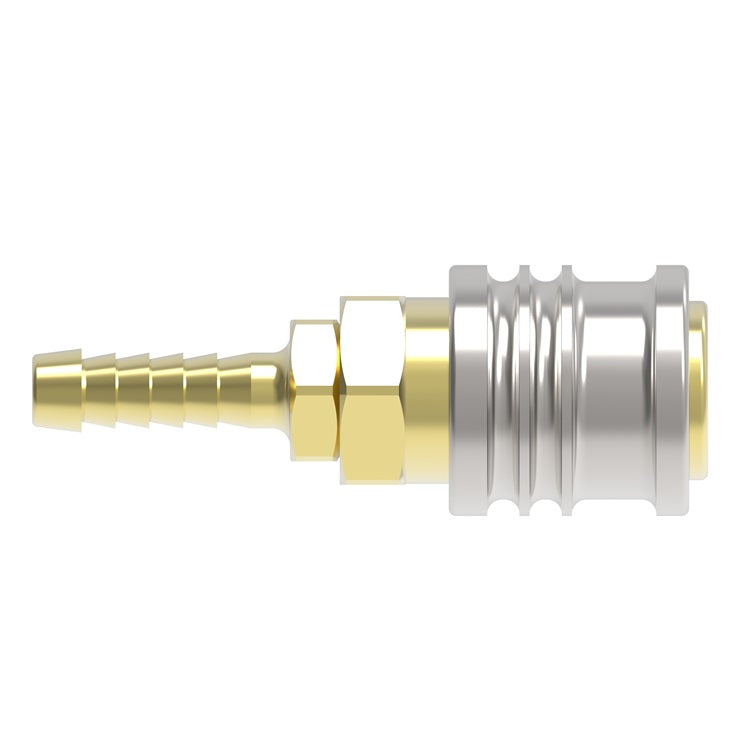

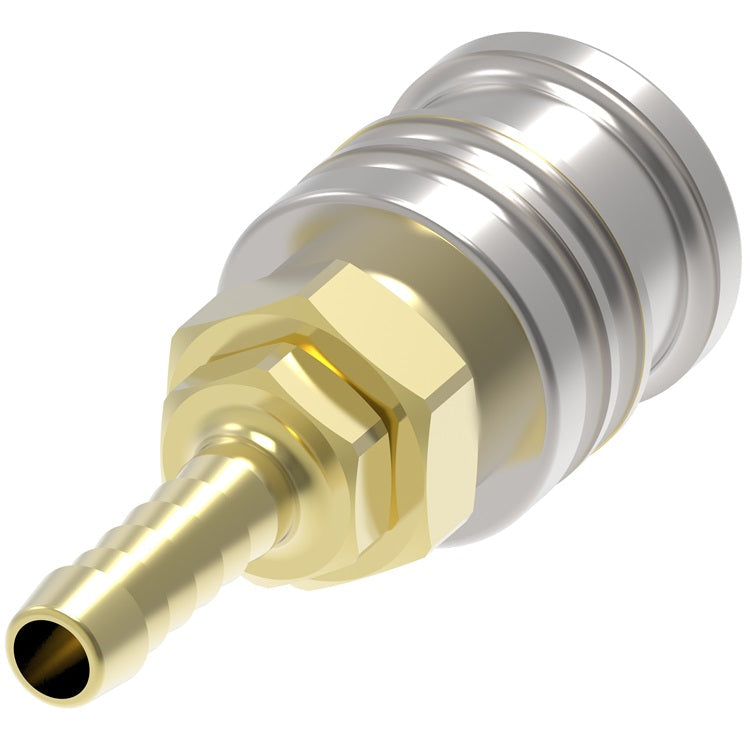

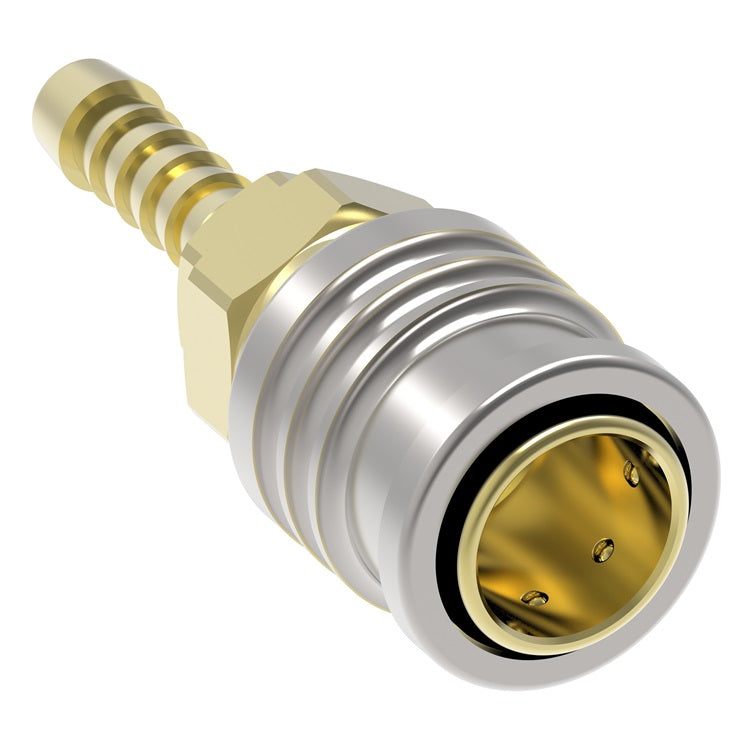

580 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Barb End | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
580 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Barb End | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
580 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Barb End | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
580 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Barb End | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

580 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Barb End | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

$32.74 - $32.74
$32.74
$32.74 - $32.74
$32.74

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 500 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 580 Danfoss
Brand: Hansen
Series: 500 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
500 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,038 lpm 538 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
500 Series | Sockets
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
A B
570 Socket/Female 1/2" 3/8" Hose Stem Brass 1 3.32"
(84.3mm)		 1.19"
(30.2mm)
580 Socket/Female 1/2" 1/2" Hose Stem Brass 1 3.24"
(82.3mm)		 1.19"
(30.2mm)
590 Socket/Female 1/2" 3/4" Hose Stem Brass 1 4.09"
(103.9mm)		 1.19"
(30.2mm)
500 Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Material Figure Dimensions
C D
585 Plug/Male 1/2" 5/16" Hose Stem Steel 2 2.66"
(67.6mm)		 0.69"
(17.5mm)
59 Plug/Male 1/2" 3/8" Hose Stem Steel 2 2.66"
(67.6mm)		 0.69"
(17.5mm)
59G** Plug/Male 1/2" 3/8" Hose Stem Brass 2 3.37"
(85.6mm)		 0.98"
(24.9mm)
60 Plug/Male 1/2" 1/2" Hose Stem Steel 2 2.66"
(67.6mm)		 0.75"
(19.1mm)
60G** Plug/Male 1/2" 1/2" Hose Stem Brass 2 3.37"
(85.6mm)		 0.98"
(24.9mm)
61E Plug/Male 1/2" 3/4" Hose Stem Steel 2 3.50"
(88.9mm)		 1.00"
(25.4mm)

** With Bleeder Ball Check - Reduces Hose Whip.
