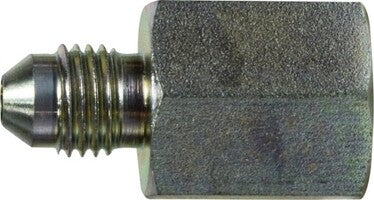

2405-05-06 by Midland | Hydraulic 37° JIC Adapter | JIC to Female Pipe | 5/16" Male 37° JIC x 3/8" Female NPT | Steel

Name: 2405-05-06 by Midland | Hydraulic 37° JIC Adapter | JIC to Female Pipe | 5/16" Male 37° JIC x 3/8" Female NPT | Steel
Brand: Midland Industries
SKU: 2405-05-06 Midland
Price: 3.61 USD
Availability: InStock

Save $2.41

$6.02

$6.02 - $6.02

$6.02

$3.61

$3.61 - $3.61

$3.61

Midland Industries
Hydraulic Adapters: JIC Female Connector - Steel

Inventory @ Manufacturers Warehouse: 202 Units

Specifications for Variant SKU: 2405-05-06 Midland
Ends Configuration:	5/16in Male JIC, 3/8in Female NPT
Material(s):	Steel

Specifications:
SAE 070103 MS 51503
Technical Info:
Midland Industries Hydraulics Technical Info.PDF

Crossover Series:
2405	2022R	GTX	1230R	C5255


Part Number	Male JIC 37° Flare Size (1)	Male JIC 37° Flare Thread (1)	Female Pipe (2)
240522 (2405-2-2)	1/8"	5/16-24	1/8"
240532 (2405-3-2)	3/16"	3/8-24	1/8"
240542 (2405-4-2)	1/4"	7/16-20	1/8"
240544 (2405-4-4)	1/4"	7/16-20	1/4"
240546	1/4"	7/16-20	3/8"
240552	5/16"	1-1/2-20	1/8"
240554	5/16"	1-1/2-20	1/4"
2405-05-06	5/16"	1-1/2-20	3/8"
240562	3/8"	9/16-18	1/8"
240564 (2405-6-4)	3/8"	9/16-18	1/4"
240566 (2405-6-6)	3/8"	9/16-18	3/8"
24051412	3/8"	9/16-18	1/2"
240584 (2405-8-4)	1/2"	3/4-16	1/4"
240586 (2405-8-6)	1/2"	3/4-16	3/8"
240588 (2405-8-8)	1/2"	3/4-16	1/2"
2405812	1/2"	3/4-16	3/4"
2405106 (2405-10-6)	5/8"	7/8-14	3/8"
2405108 (2405-10-8)	5/8"	7/8-14	1/2"
2405128 (2405-12-8)	3/4"	1-1/16-12	1/2"
24051212 (2405-12-12)	3/4"	1-1/16-12	3/4"
24051216	3/4"	1-1/16-12	1"
24051412	7/8"	1-13/16-12	3/4"
24051612 (2405-16-12)	1"	1-5/16-12	3/4"
24051616 (2405-16-16)	1"	1-5/16-12	1"
24051620	1"	1-5/16-12	1-1/4"
24052020 (2405-20-20)	1-1/4"	1-5/8-12	1-1/4"
24052024	1-1/4"	1-5/8-12	1-1/2"
24052424	1-1/2"	1-7/8-12	1-1/2"
24053232	2"	2-1/2-12	2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
