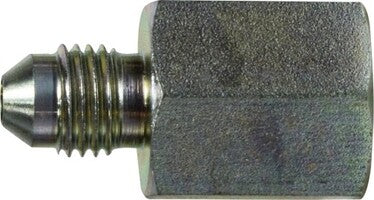

2405106 (2405-10-6) Midland | Hydraulic JIC Female Connector | 3/8" Female Pipe x 7/8-14 Male JIC 37° Flare | Steel

2405106 by Midland | Hydraulic JIC Connector | 3/8" Female Pipe x 7/8-14 Male JIC 37° Flare | Steel

Save $0.43 Save $0.43
$3.89
$3.89 - $3.89
$3.89
$3.46
$3.46 - $3.46
$3.46

Midland Industries
Hydraulic Adapters: JIC Female Connector - Steel

Inventory @ Manufacturers Warehouse: 487 Units
Specifications for Variant SKU: 2405106 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 5/8in Male JIC
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070103
  • MS 51503
Technical Info:
Crossover Series:
2405 2022R GTX 1230R C5255
Part Number Male JIC 37° Flare
Size
(1)		 Male JIC 37° Flare
Thread
(1)		 Female Pipe
(2)
240522
(2405-2-2)		 1/8" 5/16-24 1/8"
240532
(2405-3-2)		 3/16" 3/8-24 1/8"
240542
(2405-4-2)		 1/4" 7/16-20 1/8"
240544
(2405-4-4)		 1/4" 7/16-20 1/4"
240546 1/4" 7/16-20 3/8"
240552 5/16" 1-1/2-20 1/8"
240554 5/16" 1-1/2-20 1/4"
2405-05-06 5/16" 1-1/2-20 3/8"
240562 3/8" 9/16-18 1/8"
240564
(2405-6-4)		 3/8" 9/16-18 1/4"
240566
(2405-6-6)		 3/8" 9/16-18 3/8"
24051412 3/8" 9/16-18 1/2"
240584
(2405-8-4)		 1/2" 3/4-16 1/4"
240586
(2405-8-6)		 1/2" 3/4-16 3/8"
240588
(2405-8-8)		 1/2" 3/4-16 1/2"
2405812 1/2" 3/4-16 3/4"
2405106
(2405-10-6)		 5/8" 7/8-14 3/8"
2405108
(2405-10-8)		 5/8" 7/8-14 1/2"
2405128
(2405-12-8)		 3/4" 1-1/16-12 1/2"
24051212
(2405-12-12)		 3/4" 1-1/16-12 3/4"
24051216 3/4" 1-1/16-12 1"
24051412 7/8" 1-13/16-12 3/4"
24051612
(2405-16-12)		 1" 1-5/16-12 3/4"
24051616
(2405-16-16)		 1" 1-5/16-12 1"
24051620 1" 1-5/16-12 1-1/4"
24052020
(2405-20-20)		 1-1/4" 1-5/8-12 1-1/4"
24052024 1-1/4" 1-5/8-12 1-1/2"
24052424 1-1/2" 1-7/8-12 1-1/2"
24053232 2" 2-1/2-12 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
