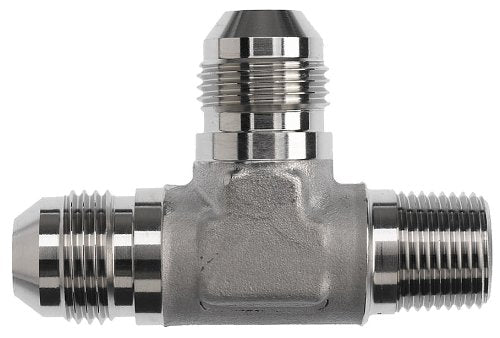

2605-08-08-08-SS by Brennan Inc. | -08 Male JIC x -08 Male Pipe x -08 Male JIC | Tee | Stainless Steel

Name: 2605-08-08-08-SS by Brennan Inc. | -08 Male JIC x -08 Male Pipe x -08 Male JIC | Tee | Stainless Steel
Brand: Brennan Inc
SKU: 2605-08-08-08-SS Brennan
Price: 115.01 USD
Availability: InStock

$90.64 - $90.64

$90.64

$115.01

$115.01 - $115.01

$115.01

Brennan Inc.
Tube Fittings & Adapters: 2603 - Male JIC x Male Pipe x Male JIC Tee

Quantity

Specifications for Variant SKU: 2605-08-08-08-SS Brennan
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male JIC, 1/2in Male NPTF, 1/2in Male JIC, Some Ends Match
Material(s):	Stainless Steel


Part Number	Material	Tube O.D.	B1 SAE 37°	A2 NPTF	B3 SAE 37°	B1 Drill	A2 Drill	B3 Drill	M1 Length	L Length	M2 Length	Y Flats
2605-03-02-03-FG	Forged Steel	3/16"	3/8-24"	1/8-27"	3/8-24"	0.125"	0.188"	0.125"	0.830"	0.720"	0.830"	0.438"
2605-04-02-04-FG	Forged Steel	1/4"	7/16-20"	1/8-27"	7/16-20"	0.172"	0.188"	0.172"	0.890"	0.780"	0.890"	0.438"
2605-04-04-04-FG	Forged Steel	1/4"	7/16-20"	1/4-18"	7/16-20"	0.172"	0.281"	0.172"	1.050"	1.090"	1.050"	0.562"
2605-05-02-05-FG	Forged Steel	5/16"	1/2-20"	1/8-27"	1/2-20"	0.234"	0.188"	0.234"	0.950"	0.780"	0.950"	0.562"
2605-05-04-05-FG	Forged Steel	5/16"	1/2-20"	1/4-18"	1/2-20"	0.234"	0.234"	0.234"	1.050"	1.090"	1.050"	0.562"
2605-06-02-06-FG	Forged Steel	3/8"	9/16-18"	1/8-27"	9/16-18"	0.297"	0.188"	0.297"	1.060"	0.900"	1.060"	0.562"
2605-06-04-04-FG	Forged Steel	3/8"	9/16-18"	1/4-18"	7/16-20"	0.297"	0.281"	0.172"	1.060"	1.090"	1.050"	0.562"
2605-06-04-06-FG	Forged Steel	3/8"	9/16-18"	1/4-18"	9/16-18"	0.297"	0.281"	0.297"	1.060"	1.090"	1.060"	0.562"
2605-06-06-06-FG	Forged Steel	3/8"	9/16-18"	3/8-18"	9/16-18"	0.297"	0.406"	0.297"	1.140"	1.220"	1.140"	0.750"
2603-06-08-06-FG	Forged Steel	3/8"	9/16-18"	1/2-14"	9/16-18"	0.297"	0.531"	0.297"	1.220"	1.470"	1.220"	0.875"
2605-08-04-08-FG	Forged Steel	1/2"	3/4-16"	1/4-18"	3/4-16"	0.391"	0.281"	0.391"	1.250"	1.220"	1.250"	0.750"
2605-08-06-06-FG	Forged Steel	1/2"	3/4-16"	3/8-18"	9/16-18"	0.391"	0.391"	0.297"	1.250"	1.220"	1.140"	0.750"
2605-08-06-08-FG	Forged Steel	1/2"	3/4-16"	3/8-18"	3/4-16"	0.391"	0.406"	0.391"	1.250"	1.220"	1.250"	0.750"
2605-08-08-06-FG	Forged Steel	1/2"	3/4-16"	1/2-14"	9/16-18"	0.391"	0.531"	0.297"	1.330"	1.470"	1.220"	0.875"
2605-08-08-08-FG	Forged Steel	1/2"	3/4-16"	1/2-14"	3/4-16"	0.391"	0.531"	0.391"	1.330"	1.470"	1.330"	0.875"
2605-08-12-08-FG	Forged Steel	1/2"	3/4-16"	3/4-14"	3/4-16"	0.391"	0.719"	0.391"	1.420"	1.590"	1.420"	1.062"
2605-10-12-10-FG	Forged Steel	5/8"	7/8-14"	3/4-14"	7/8-14"	0.484"	0.719"	0.484"	1.540"	1.590"	1.540"	1.062"
2605-10-08-10-FG	Forged Steel	5/8"	7/8-14"	1/2-14"	7/8-14"	0.484"	0.531"	0.484"	1.450"	1.470"	1.450"	0.875"
2605-12-08-12-FG	Forged Steel	3/4"	1-1/16-12"	1/2-14"	1-1/16-12"	0.609"	0.531"	0.609"	1.660"	1.590"	1.660"	1.062"
2605-12-12-08-FG	Forged Steel	3/4"	1-1/16-12"	3/4-14"	3/4-16"	0.609"	0.719"	0.391"	1.660"	1.590"	1.420"	1.062"
2605-12-12-12-FG	Forged Steel	3/4"	1-1/16-12"	3/4-14"	1-1/16-12"	0.609"	0.609"	0.609"	1.660"	1.590"	1.660"	1.062"
2605-16-16-16-FG	Forged Steel	1"	1-5/16-12"	1-11-1/2"	1-5/16-12"	0.844"	0.938"	0.844"	1.810"	1.970"	1.810"	1.312"
2605-20-20-20-FG	Forged Steel	1-1/4"	1-5/8-12"	1-1/4-11-1/2"	1-5/8-12"	1.078"	1.250"	1.078"	2.060"	2.380"	2.060"	1.625"
2605-24-24-24-FG	Forged Steel	1-1/2"	1-7/8-12"	1-1/2-11-1/2"	1-7/8-12"	1.312"	1.500"	1.312"	2.330"	2.640"	2.330"	1.875"
2605-32-32-32-FG	Forged Steel	2"	2-1/2-12"	2-11-1/2"	2-1/2-12"	1.781"	1.938"	1.781"	3.060"	3.000"	3.060"	2.500"

2605-06-04-06-B	Brass	3/8"	9/16-18"	1/4-18"	9/16-18"	0.297"	0.281"	0.297"	1.060"	1.090"	1.060"	0.562"

2605-03-02-03-SS	Stainless Steel	3/16"	3/8-24"	1/8-27"	3/8-24"	0.125"	0.188"	0.125"	0.830"	0.720"	0.830"	0.438"
2605-04-02-04-SS	Stainless Steel	1/4"	7/16-20"	1/8-27"	7/16-20"	0.172"	0.188"	0.172"	0.890"	0.780"	0.890"	0.438"
2605-04-04-04-SS	Stainless Steel	1/4"	7/16-20"	1/4-18"	7/16-20"	0.172"	0.281"	0.172"	1.050"	1.090"	1.050"	0.562"
2605-05-02-05-SS	Stainless Steel	5/16"	1/2-20"	1/8-27"	1/2-20"	0.234"	0.188"	0.234"	0.950"	0.780"	0.950"	0.562"
2605-06-04-06-SS	Stainless Steel	3/8"	9/16-18"	1/4-18"	9/16-18"	0.297"	0.281"	0.297"	1.060"	1.090"	1.060"	0.562"
2605-06-06-06-SS	Stainless Steel	3/8"	9/16-18"	3/8-18"	9/16-18"	0.297"	0.406"	0.297"	1.140"	1.220"	1.140"	0.750"
2605-08-06-08-SS	Stainless Steel	1/2"	3/4-16"	3/8-18"	3/4-16"	0.391"	0.406"	0.391"	1.250"	1.220"	1.250"	0.750"
2605-08-08-08-SS	Stainless Steel	1/2"	3/4-16"	1/2-14"	3/4-16"	0.391"	0.531"	0.391"	1.330"	1.470"	1.330"	0.875"
2605-10-08-10-SS	Stainless Steel	5/8"	7/8-14"	1/2-14"	7/8-14"	0.484"	0.531"	0.484"	1.450"	1.470"	1.450"	0.875"
2605-12-12-12-SS	Stainless Steel	3/4"	1-1/16-12"	3/4-14"	1-1/16-12"	0.609"	0.719"	0.609"	1.660"	1.590"	1.660"	1.062"
2605-16-16-16-SS	Stainless Steel	1"	1-5/16-12"	1-11-1/2"	1-5/16-12"	0.844"	0.938"	0.844"	1.810"	1.970"	1.810"	1.312"
2605-20-20-20-SS	Stainless Steel	1-1/4"	1-5/8-12"	1-1/4-11-1/2"	1-5/8-12"	1.078"	1.250"	1.078"	2.060"	2.380"	2.060"	1.625"
2605-24-24-24-SS	Stainless Steel	1-1/2"	1-7/8-12"	1-1/2-11-1/2"	1-7/8-12"	1.312"	1.500"	1.312"	2.330"	2.640"	2.330"	1.875"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
