2741-4 by Alemite | Pump Accessory | Pump Hoists | Single Post Pump | Hoist | 150 PSI | use with 7784-A4, 7785-A5, 7786-A5, 7795-A5 Pumps

Save $29.30

$2,745.75

$2,745.75 - $2,745.75

$2,745.75

$2,716.45

$2,716.45 - $2,716.45

$2,716.45

PRODUCT DESCRIPTION

Alemite Pump Accessory - Pump Hoists - Bridge Hoist

Quantity

Specifications for Variant SKU: 2741-4 Alemite

Note:
Some pumps may require a plate and an adapter. Please contact Customer Service.

Part Number	Description	Included Items	Comments	Additional Comments		Weight	Used With Pump
7818-F5	Bridge Hoist	Guide rods, drum retaining mechanisms, vacuum break, pump air hose assemblies and follower (327690)	Dimensions: 69 1/4" H (lowered) x 42 1/2" W x 27 3/16" D (107" H raised) Air inlet: 3/4" NPTF(f) Maximum pressure: 200 psi	Pump Model 7785-A5 7786-A5 7886-A5	Adapter Required: 327247 327247 330976	370 Lb.	7785-A5 7786-A5 7889-C

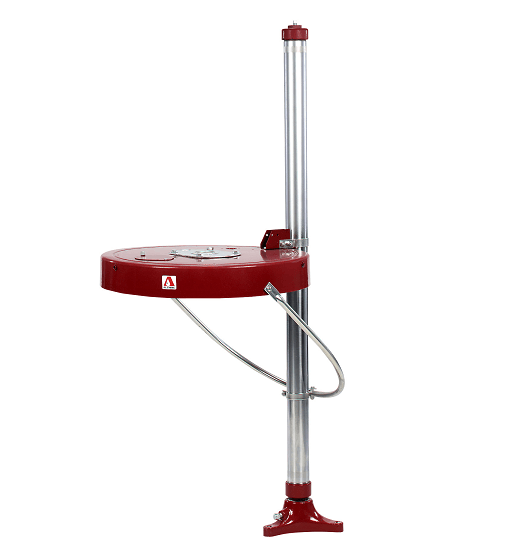

2741-4	Single Post Pump Hoist	Hoist, Cover assembly	Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Adapter plate (322593) adapts cover assembly to bung mounted pumps	Alemite Industrial Pumps mount directly to the cover assembly		75 Lb.	7784-A4 7785-A5 7786-A5 7795-A5
2742-4	Single Post Pump Hoist	Hoist, Bracket assembly	Height: 62 1/8" (lowered), 98 5/8" (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi Recommended Accessory: Follower plate (327242) for Class III, IV, and V materials (400 Lb.)	Alemite Industrial Pumps mount directly to the bracket assembly		75 Lb.	7784-A4 7785-A5 7785-B5 7786-A5 7786-C 7795-A5 7795-B5

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.

Shop Parts by Alemite | SKF
