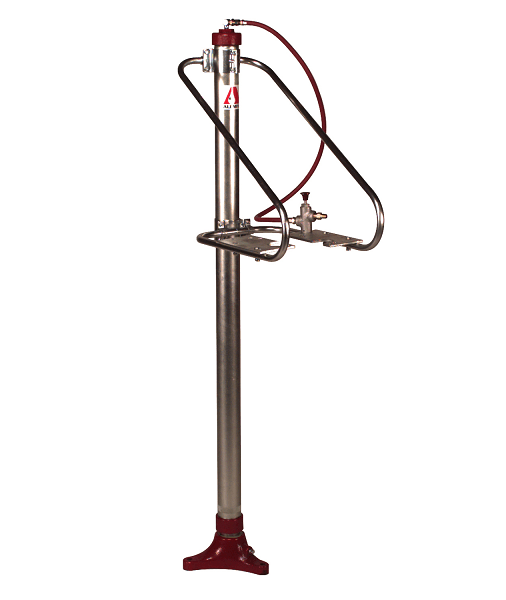

2742-4 by Alemite | Pump Accessory | Pump Hoists | Single Post Pump Hoist | 150 PSI | use with 7784-A4, 7785-A5, 7785-B5, 7786-A5, 7786-C, 7795-A5, 7795-B5 Pumps

2742-4 by Alemite | Pump Accessory | Pump Hoists | Single Post Pump Hoist | 150 PSI | use with 7784-A4, 7785-A5, 7785-B5, 7786-A5, 7786-C, 7795-A5, 7795-B5 Pumps

Save $28.73 Save $28.73
$2,693.55
$2,693.55 - $2,693.55
$2,693.55
$2,664.82
$2,664.82 - $2,664.82
$2,664.82

PRODUCT DESCRIPTION

Alemite Pump Accessory - Pump Hoists - Bridge Hoist
Specifications for Variant SKU: 2742-4 Alemite
Note:
  • Some pumps may require a plate and an adapter. Please contact Customer Service.

Part Number Description Included
Items		 Comments Additional
Comments		 Weight Used With Pump
7818-F5 Bridge Hoist Guide rods, drum retaining mechanisms,
vacuum break, pump air hose assemblies and
follower (327690)		 Dimensions: 69 1/4" H (lowered) x 42 1/2" W x 27
3/16" D (107" H raised)
Air inlet: 3/4" NPTF(f)
Maximum pressure: 200 psi		 Pump Model
7785-A5
7786-A5
7886-A5		 Adapter Required:
327247
327247
330976		 370 Lb. 7785-A5
7786-A5
7889-C
2741-4 Single Post
Pump Hoist		 Hoist, Cover assembly Height:
62 1/8" (lowered), 98 5/8" (raised)
Air inlet: 1/4" NPTF (f)
Maximum pressure: 150 psi
Recommended Accessory: Adapter plate (322593)
adapts cover assembly to bung mounted pumps		 Alemite Industrial Pumps mount directly to the cover assembly 75 Lb. 7784-A4
7785-A5
7786-A5
7795-A5
2742-4 Single Post
Pump Hoist		 Hoist, Bracket assembly Height:
62 1/8" (lowered), 98 5/8" (raised)
Air inlet: 1/4" NPTF (f)
Maximum pressure: 150 psi
Recommended Accessory: Follower plate (327242) for
Class III, IV, and V materials (400 Lb.)		 Alemite Industrial Pumps mount directly to the bracket assembly 75 Lb. 7784-A4
7785-A5
7785-B5
7786-A5
7786-C
7795-A5
7795-B5
