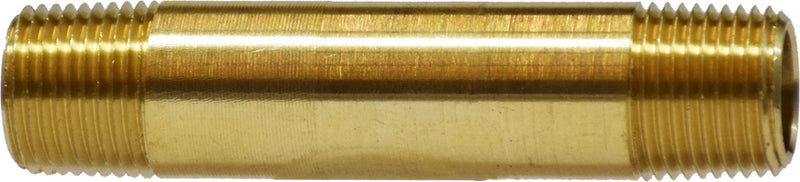

28143 (28-143) Midland Long Nipple - 1/8" Male NPTF - 3" Length - Brass

28143 by Midland | Long Nipple | 1/8" Male NPTF | 3" Length | Brass

Name: 28143 by Midland | Long Nipple | 1/8" Male NPTF | 3" Length | Brass
Brand: Midland Industries
SKU: 28143 Midland
Price: 1.93 USD
Availability: InStock

Save $1.29

$3.22

$3.22 - $3.22

$3.22

$1.93

$1.93 - $1.93

$1.93

Midland Industries
Brass Fitting - Pipe Thread - Long Nipple

Inventory @ Manufacturers Warehouse: 693 Units

Specifications for Variant SKU: 28143 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPTF, 1/8in Male NPTF, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"

Crossover Series:
113	113B	113A	166	3327	3328	3329	3330	3331	215PNL


Part Number	Thread Size Male NPTF	A Length	Approx. Weight (Lbs.)
28140 (28-140)	1/8"	1.50"	0.03
28141 (28-141)	1/8"	2.00"	0.04
28142 (28-142)	1/8"	2.50"	0.06
28143 (28-143)	1/8"	3.00"	0.06
28475 (28-475)	1/8"	3.50"	0.07
28144 (28-144)	1/4"	1.50"	0.03
28145 (28-145)	1/4"	2.00"	0.05
28146 (28-146)	1/4"	2.50"	0.08
28147 (28-147)	1/4"	3.00"	0.10
28481 (28-481)	1/4"	3.50"	0.12
28148 (28-148)	3/8"	1.50"	0.06
28149 (28-149)	3/8"	2.00"	0.10
28150 (28-150)	3/8"	2.50"	0.10
28151 (28-151)	3/8"	3.00"	0.13
28487 (28-487)	3/8"	3.50"	0.17
28152 (28-152)	1/2"	1.50"	0.08
28153 (28-153)	1/2"	2.00"	0.12
28154 (28-154)	1/2"	2.50"	0.16
28155 (28-155)	1/2"	3.00"	0.20
28493 (28-493)	1/2"	3.50"	0.24
28136 (28-136)	3/4"	1.50"	0.12
28497 (28-497)	3/4"	2.00"	0.18
28498 (28-498)	3/4"	2.50"	0.23
28499 (28-499)	3/4"	3.00"	0.28

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
