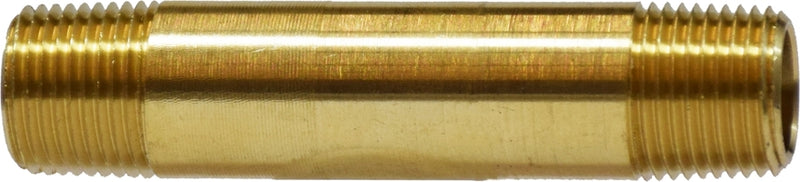

28155 (28-155) Midland Long Nipple - 1/2" Male NPTF - 3" Length - Brass

28155 by Midland | Long Nipple | 1/2" Male NPTF | 3" Length | Brass

Save $0.72 Save $0.72
$6.47
$6.47 - $6.47
$6.47
$5.75
$5.75 - $5.75
$5.75

Midland Industries
Brass Fitting - Pipe Thread - Long Nipple

Inventory @ Manufacturers Warehouse: 414 Units
Specifications for Variant SKU: 28155 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
113 113B 113A 166 3327 3328 3329 3330 3331 215PNL
Part Number Thread Size
Male NPTF		 A
Length		 Approx. Weight
(Lbs.)
28140
(28-140)		 1/8" 1.50" 0.03
28141
(28-141)		 1/8" 2.00" 0.04
28142
(28-142)		 1/8" 2.50" 0.06
28143
(28-143)		 1/8" 3.00" 0.06
28475
(28-475)		 1/8" 3.50" 0.07
28144
(28-144)		 1/4" 1.50" 0.03
28145
(28-145)		 1/4" 2.00" 0.05
28146
(28-146)		 1/4" 2.50" 0.08
28147
(28-147)		 1/4" 3.00" 0.10
28481
(28-481)		 1/4" 3.50" 0.12
28148
(28-148)		 3/8" 1.50" 0.06
28149
(28-149)		 3/8" 2.00" 0.10
28150
(28-150)		 3/8" 2.50" 0.10
28151
(28-151)		 3/8" 3.00" 0.13
28487
(28-487)		 3/8" 3.50" 0.17
28152
(28-152)		 1/2" 1.50" 0.08
28153
(28-153)		 1/2" 2.00" 0.12
28154
(28-154)		 1/2" 2.50" 0.16
28155
(28-155)		 1/2" 3.00" 0.20
28493
(28-493)		 1/2" 3.50" 0.24
28136
(28-136)		 3/4" 1.50" 0.12
28497
(28-497)		 3/4" 2.00" 0.18
28498
(28-498)		 3/4" 2.50" 0.23
28499
(28-499)		 3/4" 3.00" 0.28
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
